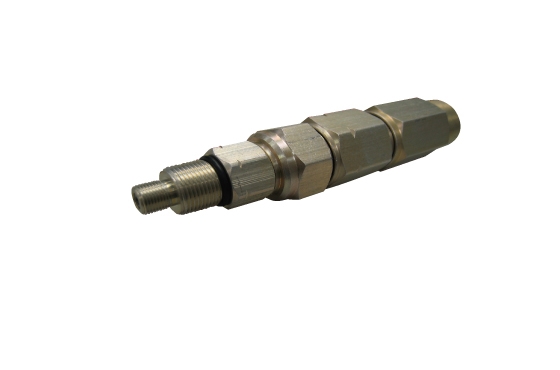

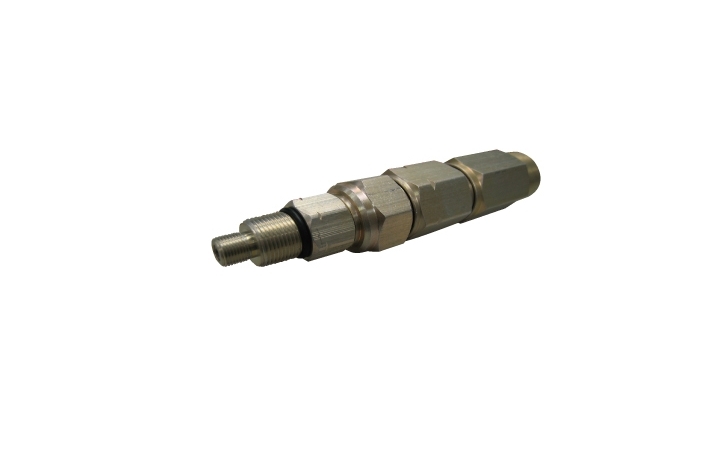

F-Female Model Hardline Connector
CTK Series
價錢: HK$0
download-icon 下載技術規格
產品資訊
  • Part numbers are permanently marked on the connector for easy identification
  • Use 6262 aluminum alloy for excellent corrosion resistance
  • Moisture-proof through durability design and implementation of UV Ozone-resistant EPDM O-rings
  • Brass contact pin with bright acid tin plating providing excellent RF conductivity
  • Cable center conductor cutting guide
  • Visible entry of center conductor into siezing mechanism
  • Same hexagon size used on both main body and back unit
  • No torque wrench needed, metal to metal positive stop,ensures proper tightening of the connector
技術規格

General

  Body Hex F-Female Model
CommScope P3 or Times Fiber T10 1” CTK-412FF-P3
  1” CTK-500FF-P3
CommScope QR 1” CTK-540FF-QR
Times Fiber TX10 1” CTK-565FF-TX
Bandwidth   DC - 1 GHz
Nominal Impedance   75Ω
Return Loss   ≥ 30 dB @ 1GHz
Insertion Loss   < 0.1 dB @ 1GHz
Operating Range   -40°C ~ 60°C
Interface   Meet SCTE IPS SP 501
