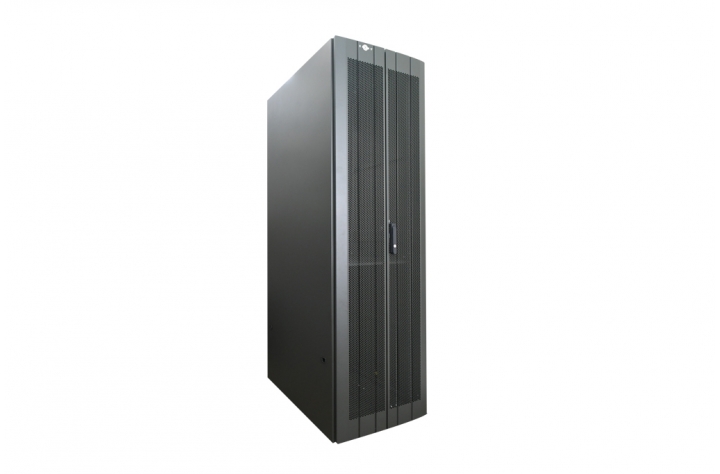

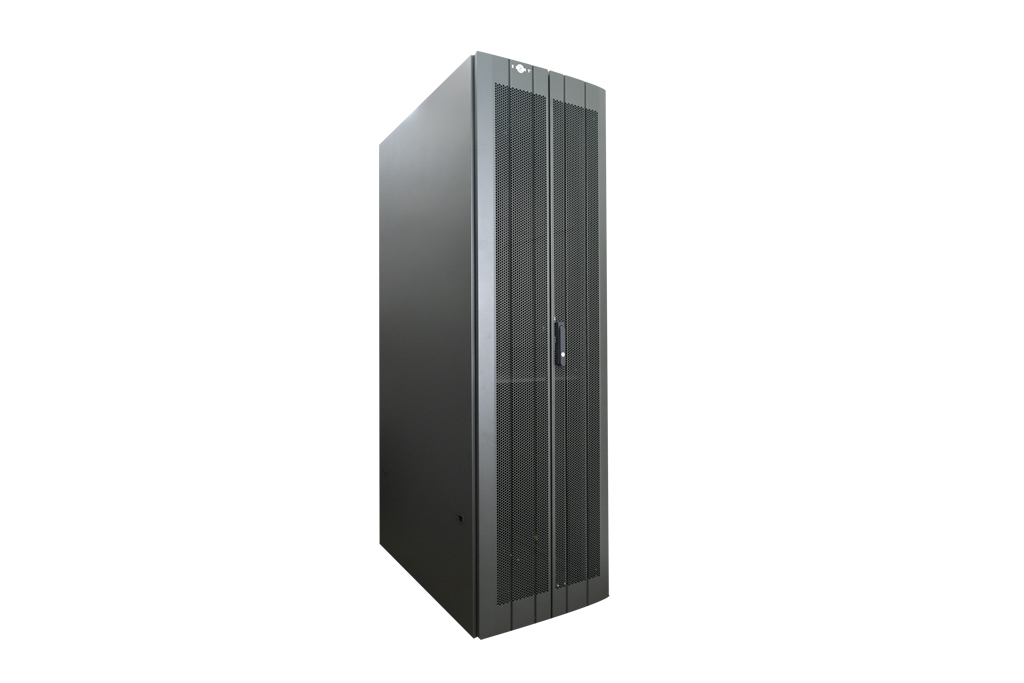

工程產品 path-arrow 機 櫃 path-arrow 37U ST-E系列 path-arrow 返回 path-arrow 機 櫃
download-icon 下載技術規格
產品資訊
  • Reliable structure, static loading capacity: 1500KG
  • Adjustable feet and castors options are available
  • Baying cabinets together easily

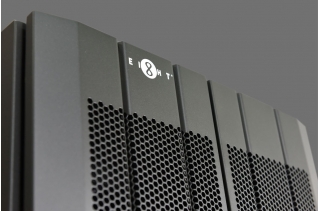

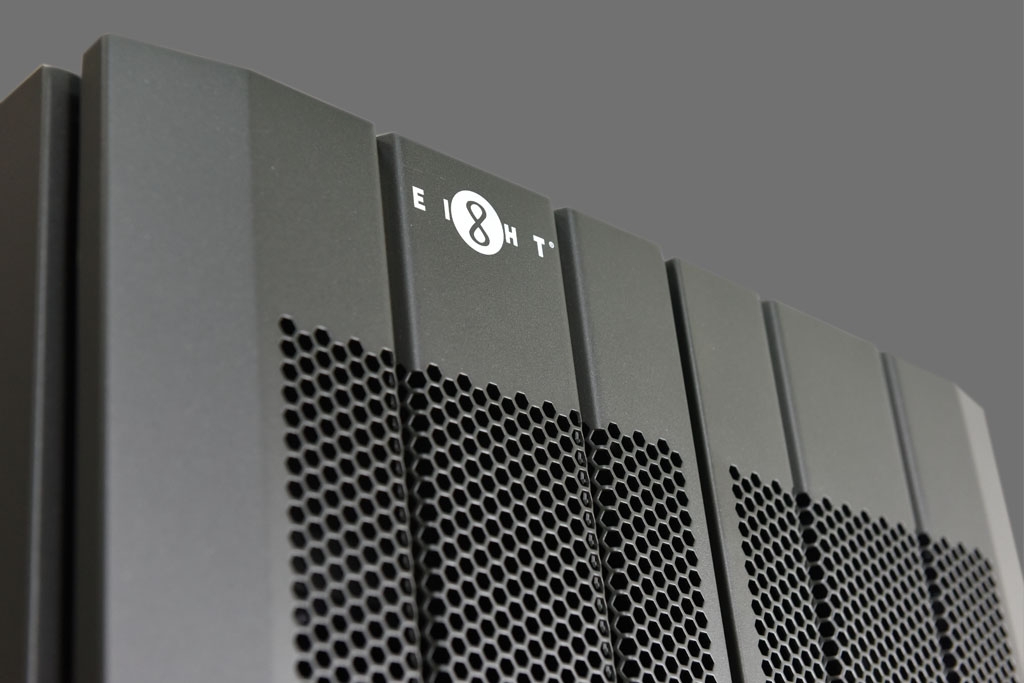

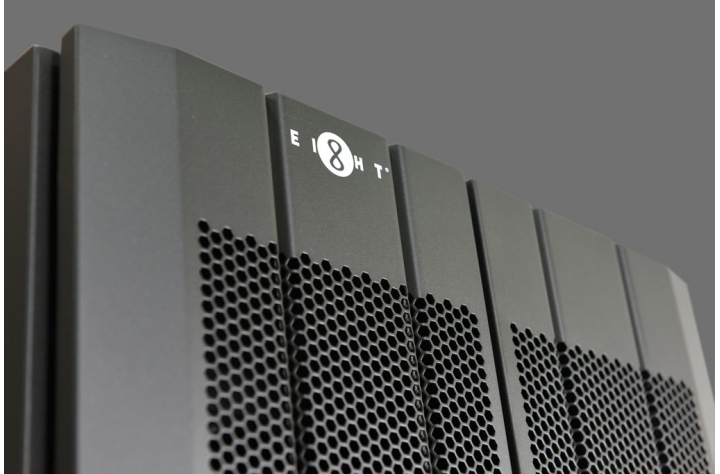

  • Double mesh front door & rear door, steel rear door

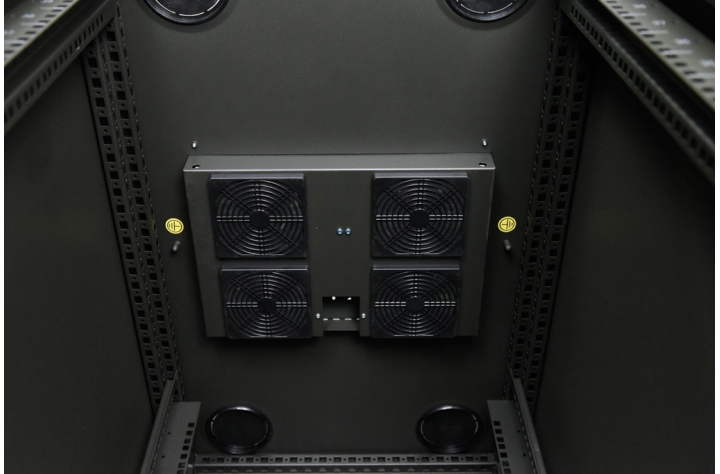

  • Top and bottom cable entries

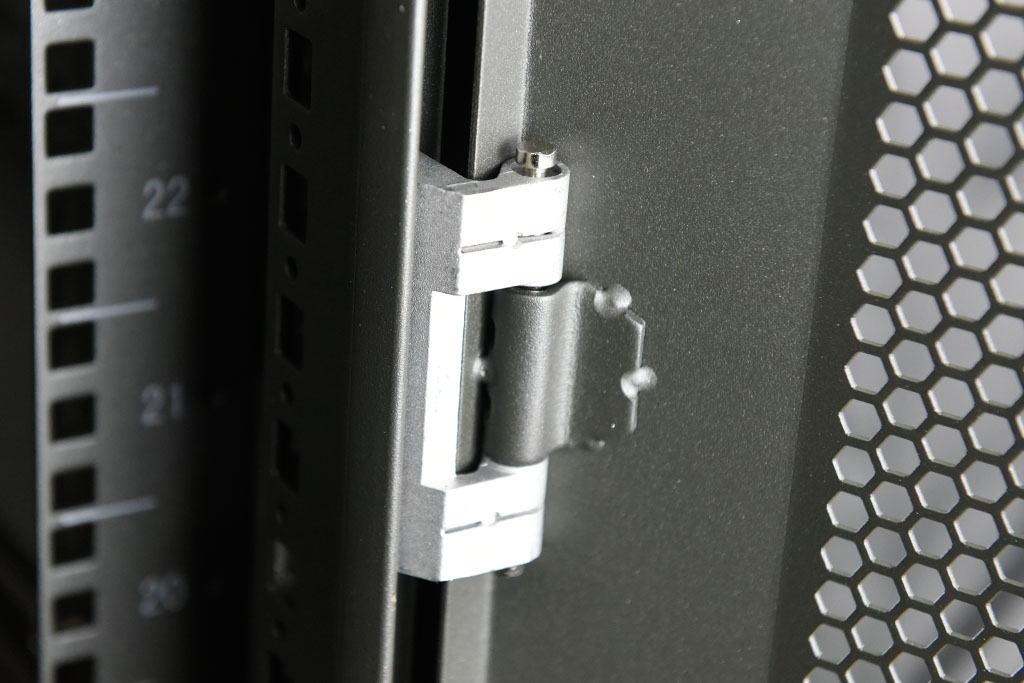

  • Front door, rear door and side panel can be easily removed

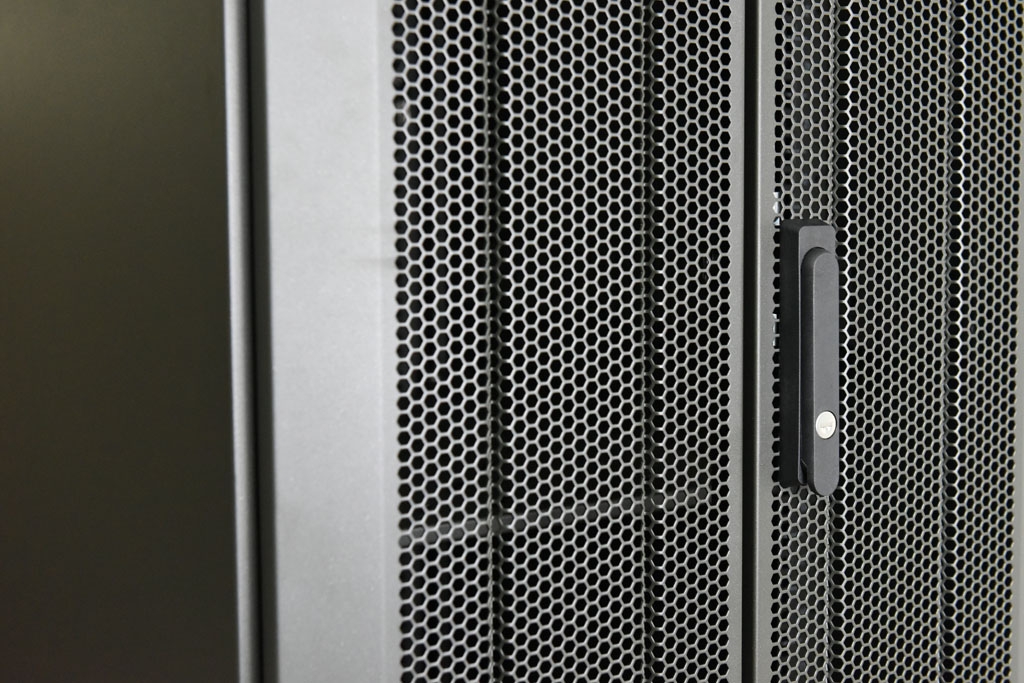

  • Front & rear door with spring lock

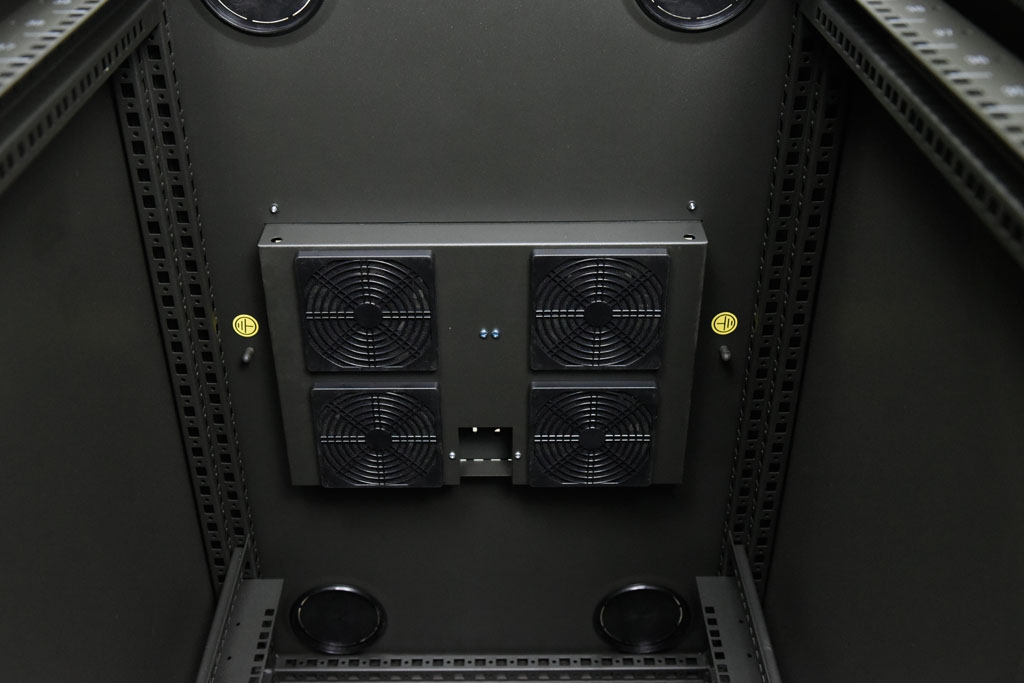

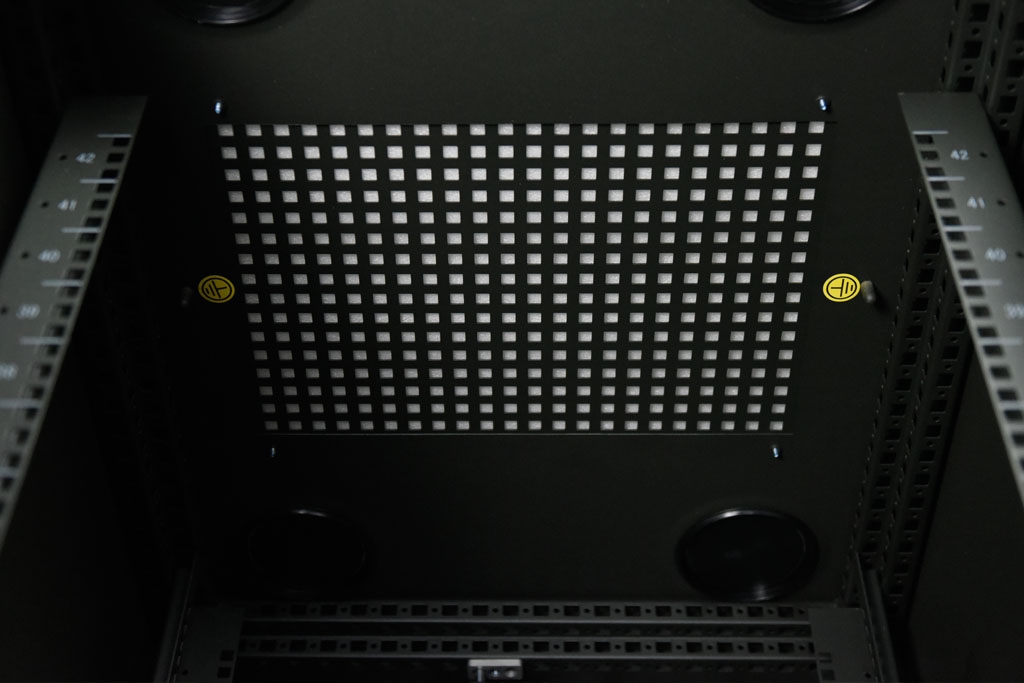

  • Optional accessories
技術規格


General

Standard

Comply with ANSI/EIA, RS-310-D; IEC297-2; DIN41491: PART 1; DIN41491: PART 7; GB/T3047.2-92 standard

Compatible with 19” international standard, metric system and ETSI standard

Static loading capacity 1500KG

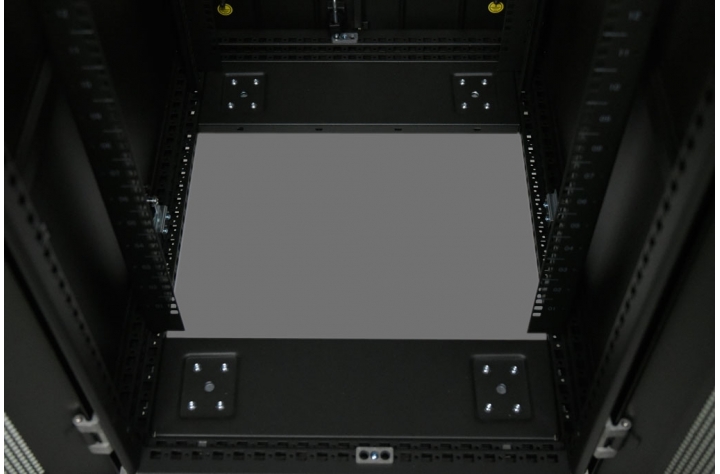

Cable entry Top and bottom
Door Lock Front & rear door with spring lock



Materials

Panel SPCC cold rolling steel plate

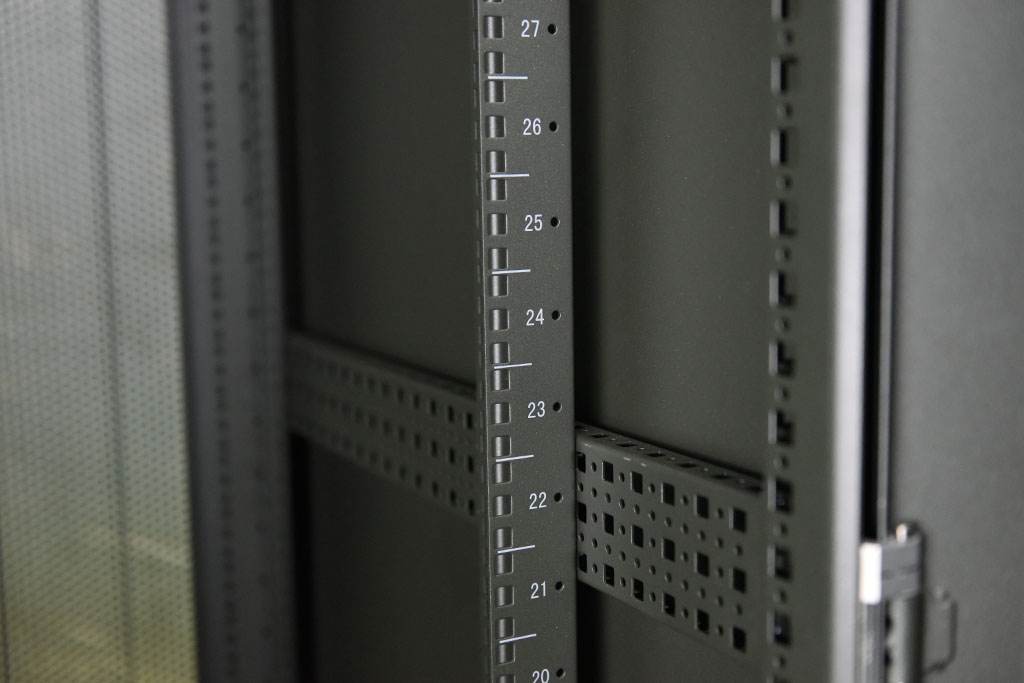

Mounting profile thickness 2.0mm
Others panel thickness 1.2mm
