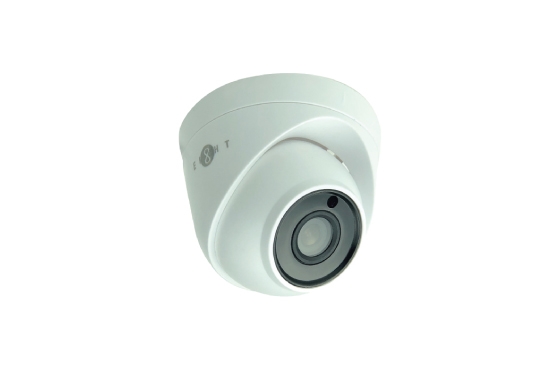

ETAD-200R
2 Megapixel full HD with IR AHD Dome Camera
價錢: HK$0
download-icon 下載技術規格
產品資訊
  • Indoor Dome Camera
  • 2.0MP
  • Fixed Lens 3.6mm @F1.2
  • 1/2.9” CMOS
  • 12 IR LEDs, 15M
  • 3-axis adjustment
  •  Plastic housing
技術規格

Video

Signal System PAL
Imaging Sensor 1/2.9” CMOS
Pixels 1920 x 1080
Resolution 1080P
Lens Type 3.6mm@F1.2
Minimum Illumination Color 0.01 Lux B/W 0 Lux (IR LED ON)
Day & Night Yes
Sync. System Internal
DWDR Digital
Video Output Signal AHD / TVI / CVI / CVBS
IR LED 12 EA
IR Distance Approx. 15M


Operational

Backlight Compensation BLC
DNR 2D + 3D - DNR
Electronic Shutter Speed Yes
White Balance Auto
Privacy Zone Masking Yes
Motion Detection Yes
Digital Effect Off / V-Flip / Mirror / Rotate
Multi OSD Language ENG & CHN
Communication Coaxial Communcation


General

Power Source DC12V
Power Consumption 2.0W
Operating Temperature / Humidity  -10˚C ~ 50˚C / < 90%
Storage Temperature /  Humidity  -40˚C ~ +60˚C / 20 ~ 95%
Dimension 52 x Ø113.5mm
