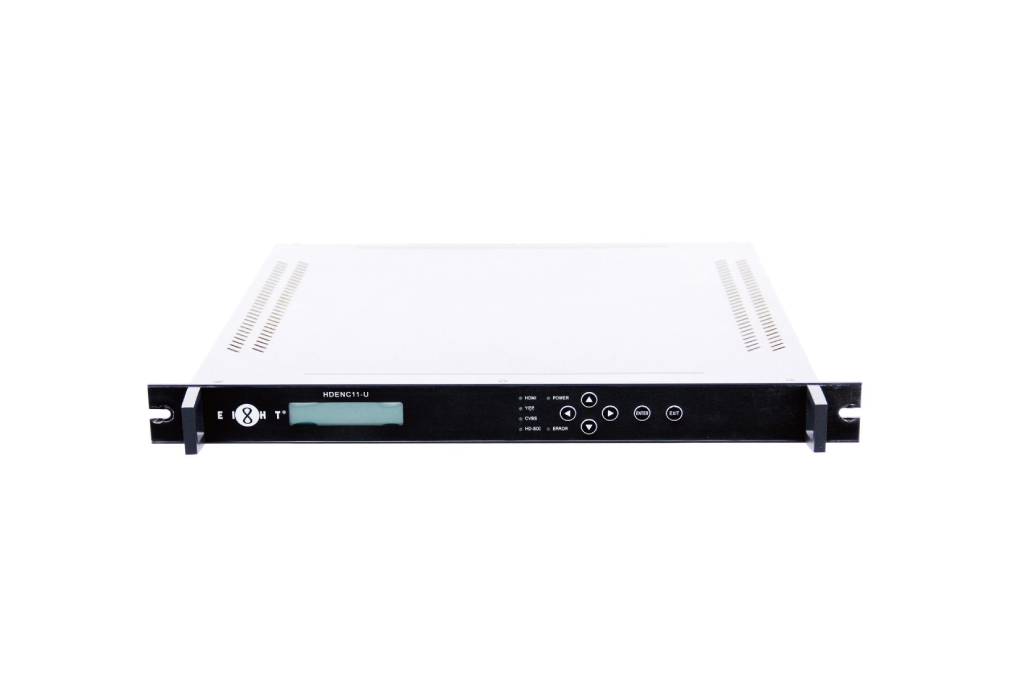

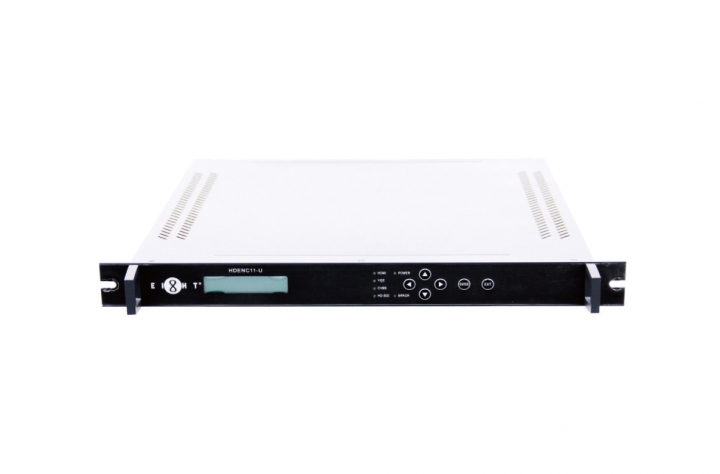

HDENCXX-U 系列
HDTV H.264 Encoder
價錢: HK$0
download-icon 下載技術規格
產品資訊
  • Multiple video resolution including 1080i, 720p, 576i and 480i
  • Multiple inputs HDMI, YPbPr and CVBS for encoding (Single channel model only)
  • HD-SDI input option available
  • 4 Channel input model available (HDMI x 4 or HD-SDI x 4)
  • H.264 Encoding, less bandwidth required
  • ASI output
技術規格


HDMI

Format Support 720P, 1080i, (50/60Hz)
Connector HDMI


YPbPr

Format Support 720P, 1080i, (50/60Hz)
Connector BNC
Impedance 75 Ω, unbalance


HD-SDI

Format Support 720P, 1080i, (50/60Hz)
Connector BNC
Impedance 75 Ω, unbalance


SVBS

Format NTSC(525/60), PAL(625/50) selectable
Connector BNC
Impedance 75 Ω, unbalance
Frequency 25Hz - 5.75MHz
Level 1.0Vp-p
Quantization 8 bits, CCIR-601
Sampling 27 MHz


DVB ASI Output Interface

Interface DVB ASI standard
Connector BNC
Impedance 75
Package Format 188 byte
Data Bit Rate 1 - 20 Mbps


Encoding

Video  H.264, High profile level 4.0
Output Bit Rate 1 - 20 Mbps
Audio MPEG1 & II layer, CD quality
Format DVB transport stream (TS)
Ethernet interface IEEE802.3, RJ45 connector
Protocol UDP / IP


NMS

Video  H.264, High profile level 4.0
Ethernet interface IEEE802.3, RJ45 connector
Protocol UDP / IP


General

Operating Temperature 5°C - 45°C
Storage Temperature -15°C - 55°C
Humidity 10 - 75%
Power AC90 - 250V, 50Hz
Consumption 25 W
Dimension 483 x 410 x 44 mm
Weight 4.5 kg
