C10

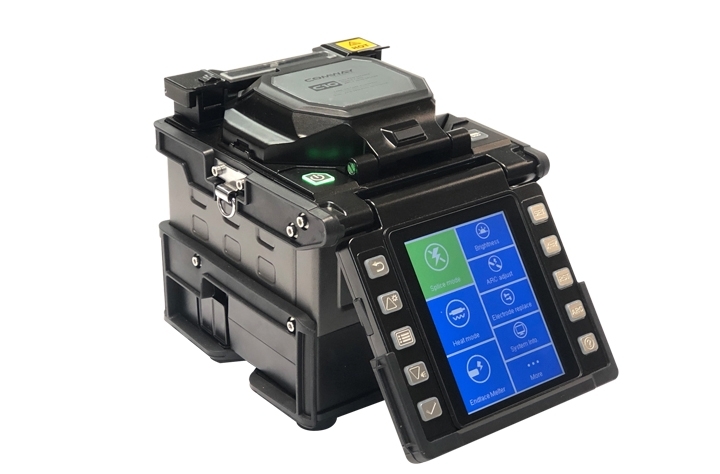

Comway 旗艦級光纖熔接機
價錢: HK$0
download-icon 下載技術規格
產品資訊
  • 防盜設計
  • 6 電機核心對齊
  • 4.1寸彩屏
  • ID電極
  • 1 秒啟動
技術規格


General

Fiber Alignment   6 motors core alignment
Fiber Type   SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), ZN/NZDS (ITU-T G.655), BI (ITU-T G.657)
Splice Mode   Single fiber
Fiber Diameter   Cladding diameter 80~150 µm, coating 100~1000 µm
Cleave Length   250 µm cladding diameter 8~16, over 250 µm cladding diameter 16mm
Splicing Programs   Max. 100
Splicing Time   6 sec. [SM Fast] program, 10 sec. [SM G652] program
Heating Programs   Max. 30
Heating Time   Typical 12 sec. (Adjustable)
Splice Protector   10 ~ 60 mm
Splice Image Capture   Max. 300
Splice Data Storage   Max. 20000
Splice Loss   SM: 0.02 dB, MM: 0.01dB, DS: 0.04 dB, NZ/NZDS: 0.04 dB, BI: 0.02 dB
Return Loss   >> 60 dB
Loss Estimation   Provided
Operation Condition Altitude 0 ~ 5000 m
  Humidity 0 ~ 95 %
  Temperature - 20 ~ +50 °C
  Wind Velocity up to 15m/s
Storage Condition  Humidity 0 ~ 95 %
  Temperature - 20 ~ +50 °C (Battery -20 ~ + 40 °C)
Tension   1.96 ~ 2.25 N
Fiber View   Two 300x camera obserevation,  4.1 inch high-light color screen
Fiber Magnification   300x for X or Y single axis view; 200x for both X & Y dual axis view
Port   High speed USB
Electrodes Life   5000 arc discharges
Power Supply   AC100-240, 50/60Hz
Battery Parameters   8400 mAh high capacity battery,  more than 320 times splicing and heating
Dimension (D x W x H)   156 x 135 x 149 mm
Weight   2.0 kg (2.5 kg with battery)
