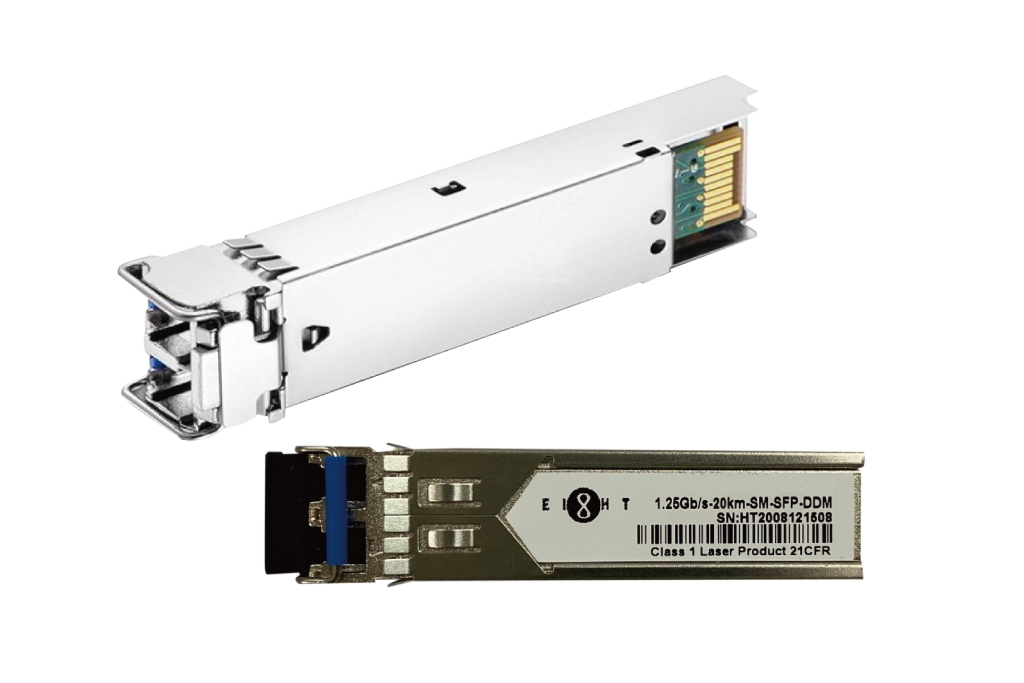

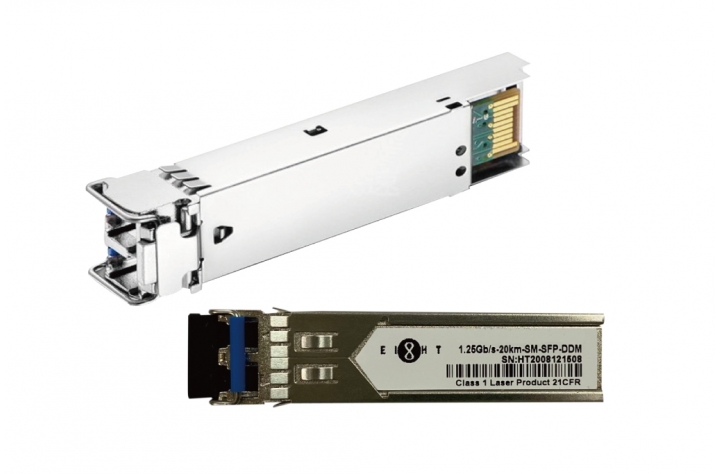

產品資訊
- UP to 1.25Gbps data rate
- Duplex LC receptacle optical interface compliant
- Receiver loss of signal output
- AC coupling of PECL signals
- International Class 1 laser safety
- Transmitter disable input
- Application: Gigabit ethernet, switch to switch interface, Gigabit fiber Channel, switched backplane applications
- Standards: Compliant with SFP MSA (INF-8074i), SFF-8472 v9.3, IEEE802.3z Gigabit Ethernet, ITU-T G.695
技術規格
Technical Specification
| Supply Current | Tx Section | 300 mA |
| Rx Section | 300 mA | |
| Receiver Sensitivity | 550m | -18 dBm |
| Overload Input Power | 550m | 0 dBm |
| Center Wave Length | 1210nm | |
| Transmission Range | 9/125um (up to 20Km) | |
| Connector | LC type |
Operating Conditions
| Operating Temperature | -10°C~70°C |
| Power Supply Voltage | 3.135V~3.465V |
| Data rate | 1.25/1.0625Gb/s |
| Storage Temperature Range | -40°C~ +85°C |
| Relative Humidity | 5% ~ 95% |
| Power Supply Voltage | -0.5V + 4V |
| Dimensions | 60 x 14 x 13 mm |
