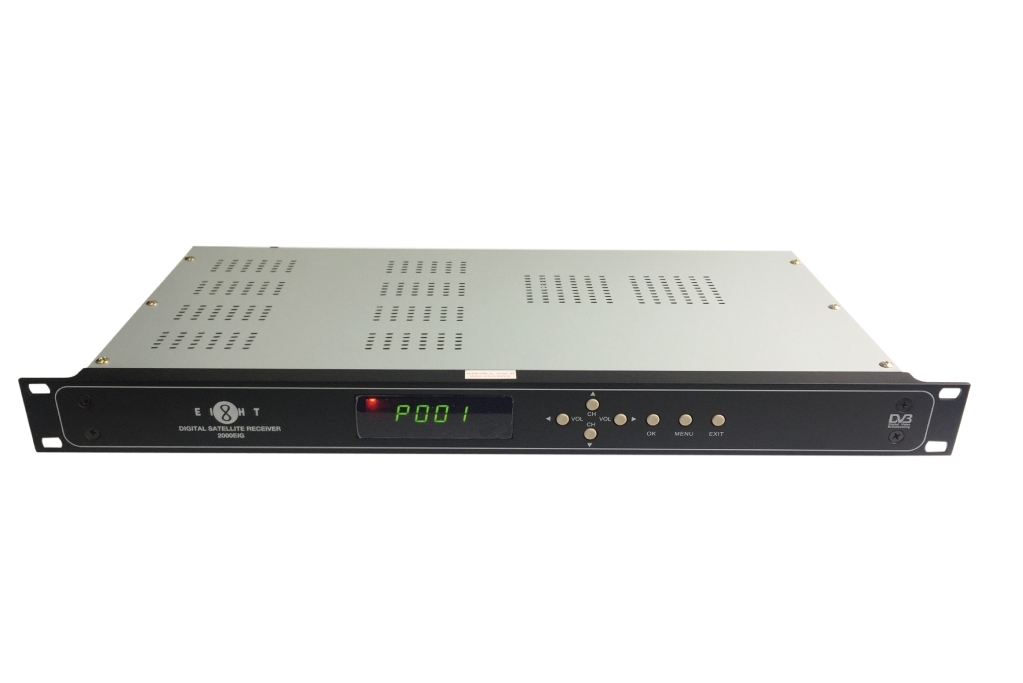

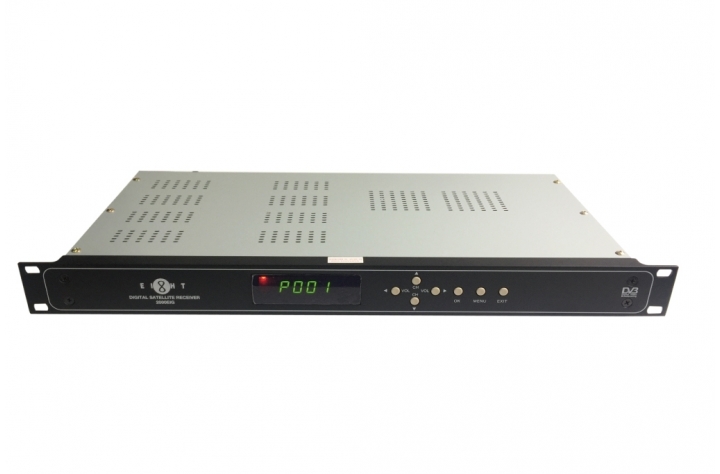

2000EIG
Satellite Receiver
Price: HK$0
download-icon Download Specification
Features
  • Meet DVB-S/S2. MPEG2 and MPEG4
  • QPSK demodulation tune, low threshold
  • Enhanced OSD (On Screen Display) screen
  • Stores up to 2000 channel data
  • The volume is adjustable and each program can have its own setting
  • Power-off memory
  • High-resolution picture and high fidelity digital stereo output
  • Signal strength display for convenient dish installation and/ or adjustment
  • SAP (Second Audio Program) stereo capable
  • Teletext, DiSEqC, 13/18V power control function
Specification


DVB-S/S2

Tuner Input DVB-S/S2
Tuner Input Type 1 x F type female for Input
  1 x F type female for loop through output
Demodulation QPSK /8PSK
Frequency Range 950~2150MHz
Input Impedance 75Ohm
InputLevel -25~+65 dBuV
Roll-off Factor

DVB-S:0.35

DVB-S2:0.2,0.25,0.35

FEC Code Rate

DVB-S QPSK:1/2,2/3,3/4,5/6,7/8

DVB-S2 QPSK:1/2,3/5,2/3,3/4, 4/5,5/6,8/9,9/10

DVB-S2 8PSK:3/5,2/3,3/4,5/6,8/9,9/10

LNB Polarity Selection Voltage 0,13V,18V selectable
LNB Band Selection Tone 0/22KHz selectable
Satellite Selection Command DiSEqC 1.0


Audio

Standard MPEG 1 Layers 1, 2 (mono, dual channel, and stereo);
MPEG-2 AAC-LC & MPEG4, DRA
Sampling Rate 32,44.1,48KHz
Audio Output mono, dual mono, stereo, joint stereo


Video

Standards

MPEG-2 MP@ML for SD

MPEG-2 MP@HL for HD

H.264/AVC MP@L3.0 for SD,HP@L4.1 for HD

VC-1 AP@L1 for SD,AP@L3 for HD

AVS+

Frame Frequency 25/50Hz
Resolution

Up to 1920 x 1080p(60Hz)

Bit Rate

MPEG-2 MP@ML: 2–15 M bps

MPEG-2 MP@HL: <19 M bps

MPEG-4 AVC HP@L3:<10 M bps

MPEG-4 AVC HP@L4: <20 M bps

Aspect Ratio 4:3 and 16:9


Interface

Video Output CVBS RCA x 2
Audio Output 2 pairs of RCA stereo(Audio Left/Audio Right)
HDMI HDMI x 1, HDCP 1.4


General

Power Supply AC 90~256V 50Hz~60Hz 25W
Power Consumption Max 25W
Temperature

Work Temperature: 5~45ºC

Storage Temperature: -10~65ºC

Humidity 20~90%,non-condensed
Weight 2.5kg
Dimension 483mm x 270mm x 45mm
