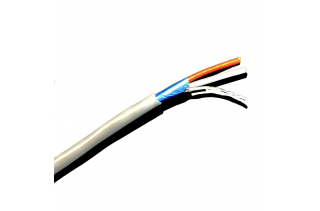

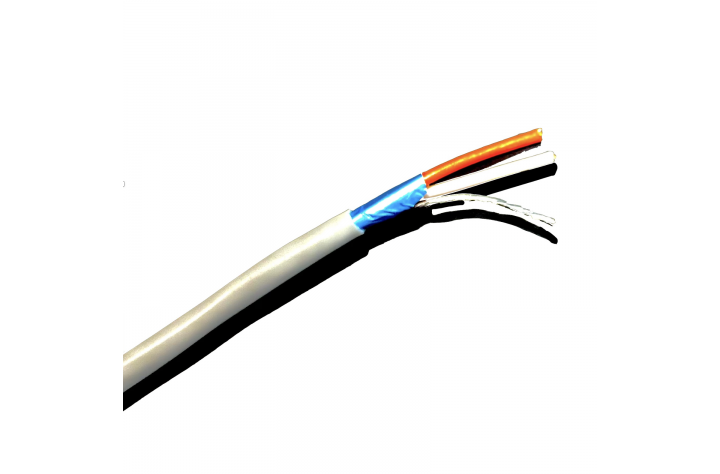

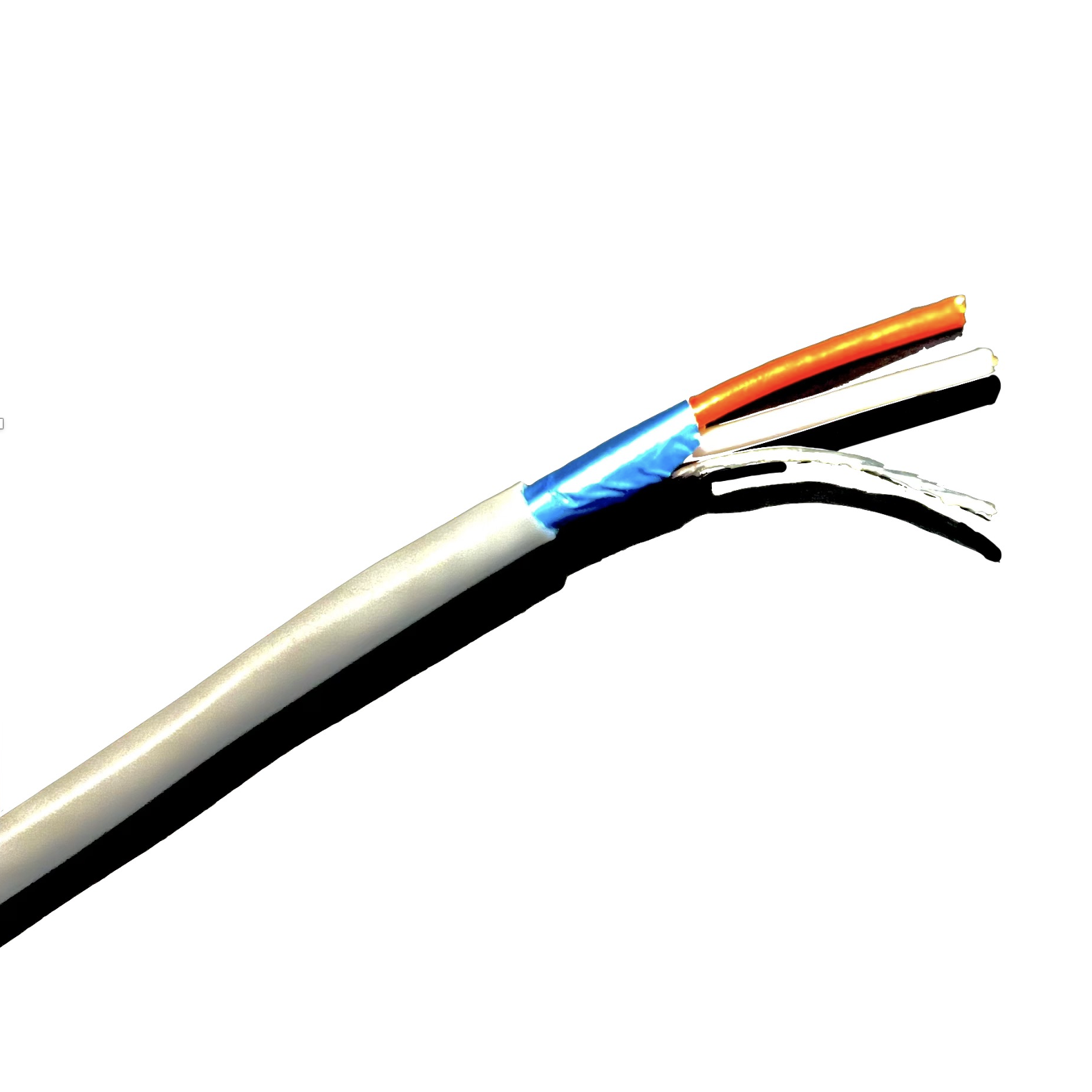

1612
Speaker Cable
Price: HK$0
download-icon Download Specification
Features
  • Intercom / PA systems
  • Sound / Audio systems
  • LSZH Jacket option available
Specification


General

Conductor Material BC
  Diameter (mm) 16/0.12
  Max Resistance(20°C) 96Ω/km
  Construction (mm) 2x16/0.12
Insulation Insulation  PE
  Insulation Diameter (mm) 1.2mm ± 0.02
  Insulation Color White, Orange
Jacket Jacket Material PVC
  Jacket Color Grey
  Jacket Thickness (mm)  0.38 ± 0.02
  Jacket O.D (mm) 3.1 ± 0.05
Drain Wire 25/0.12mmTC
Shield   AL Foil
Operation Temperature -15°C to +65°C


Construction

Self Photos / Files - 1612Construction
