CU5890BV
RG58 Coaxial Cable
Price: HK$0
download-icon Download Specification
Features
  • Application temperature - 40˚C ~ +75˚C
  • UL grade available, contact us for details
  • LSZH Jacket option available
  • ISO9001 Certified Manufacturing Plant
  • Other options are available, please ask our sales representative for detail
Specification


Construction

Inner Conductor Stranded Copper Wire
Braid Coverage 90%
Center Conductor  19 x 0.18 mm
Solid PE Insulation 2.95 mm
TIN - Copper Braiding 16 x 6 x 0.12 mm
PVC - Jacket 5.00 mm


Electric Specifications

Inner Conductor Resistance 38 Ω / km
Outer Conductor Resistance 20 Ω / km
Loop Resistance 53
Nominal Capacitance 10 pF /m
Impedance 50 Ω±2
Propagation Velocity Ratio 66% Nominal

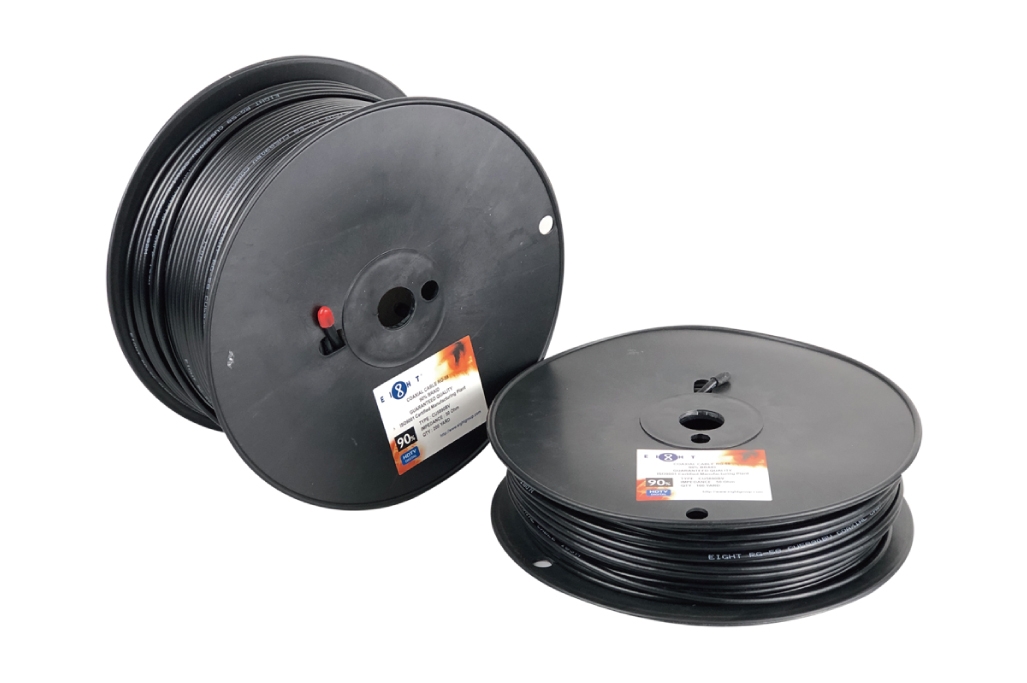

Packing

100 Yards Reel / 4 Reels in a Carton 26 x 10 x 7.2 cm / 27x 27 x 28.5cm
Gross Weight 16 kg
Net Weight 15 kg
200 Yards Reel / 2 Reels in a Carton 26 x 10 x 13 cm / 27x 27 x 28.5cm
Gross Weight 16 kg
Net Weight 15 kg



Attenuation

Frequency MHz 50 100 200 550 750 800 1000
Attenuation Nominal dB/100m 10.3 14.8 21.42 38.26 46.12 48.07 54.96
