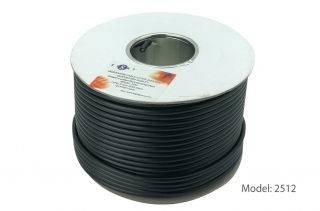

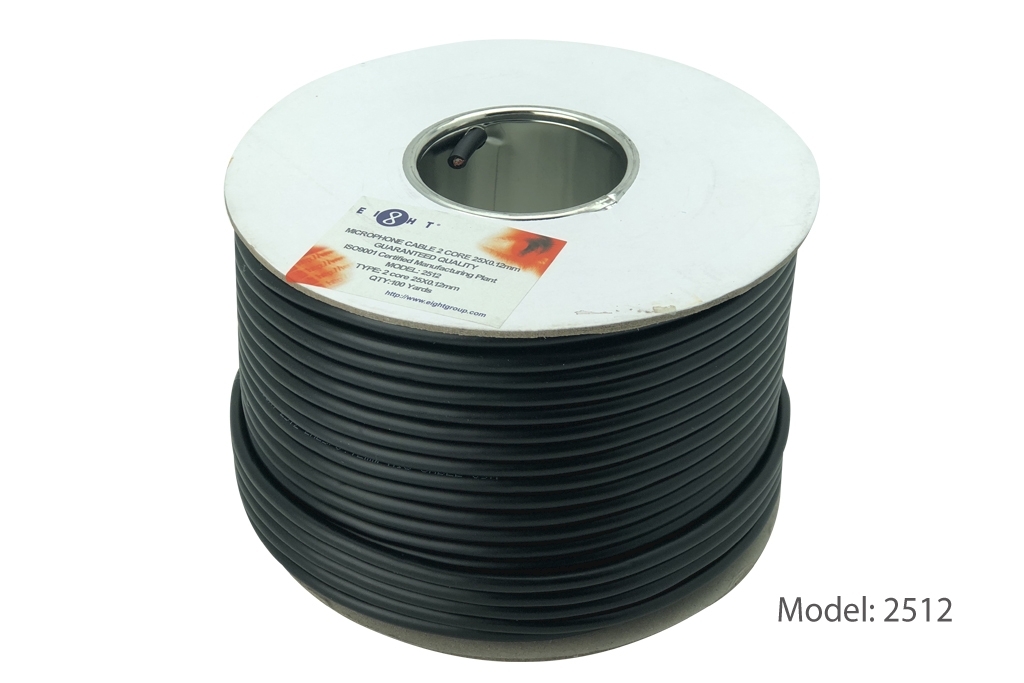

2512

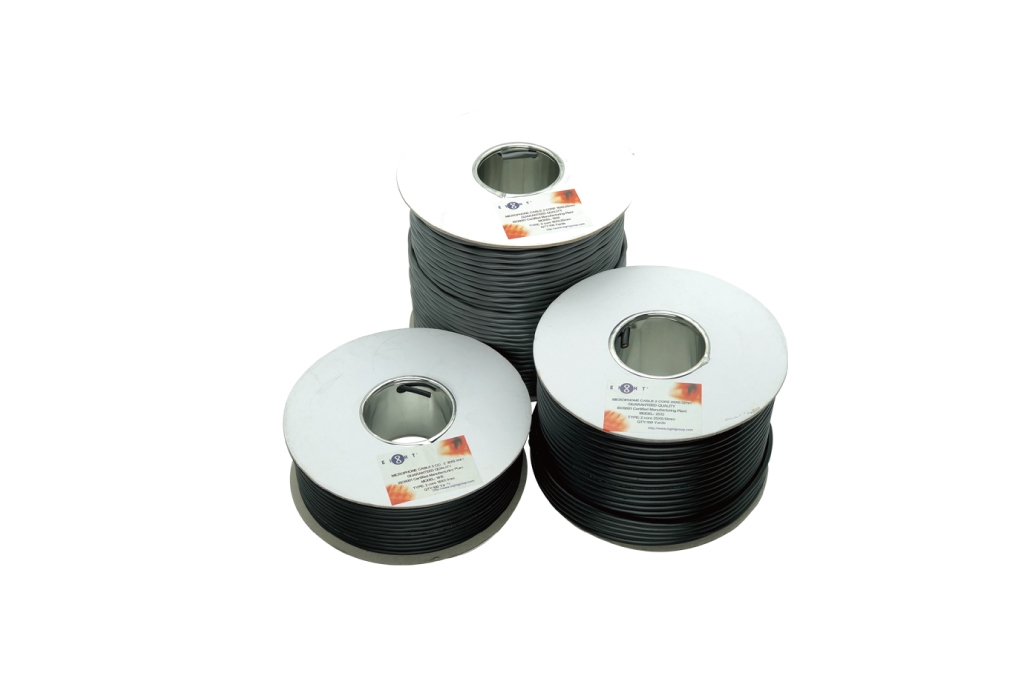

Microphone Cable
Length:
Price: HK$0
download-icon Download Specification
Features
  • Supreme quality
  • Intercom / PA systems
  • Sound / Audio systems
  • LSZH Jacket option available
Specification


General

Conductor Material  BC
  Cores 2
  Max Resistance(20°C) 63Ω/km
  Construction(No./mm) 25/0.12mm + 1 Tinsel copper
Insulation Insulation  PVC
  Insulation Dielectric 1.7mm±0.1mm
  Insulation Color Red&White
Filler Material  Cotton Yarn
Shield AL Foil AL Foil
  Braid(No./mm) 96/0.01mm BC
  Drain wire(No./mm) /
Jacket Jacket Material PVC
  Jacket Color Black
  Jacket Thickness 1.1mm
  Jacket O.D 6.5mm±0.2mm
Operation Temperature    -20°C To +60°C
Suitable for    Indoor
Diameter Ф220x136 (100Yards)
  Ф240x206 (200Yards)

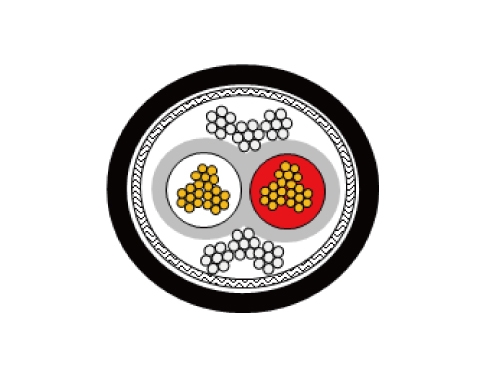

Construction

Self Photos / Files - 2521Construction
