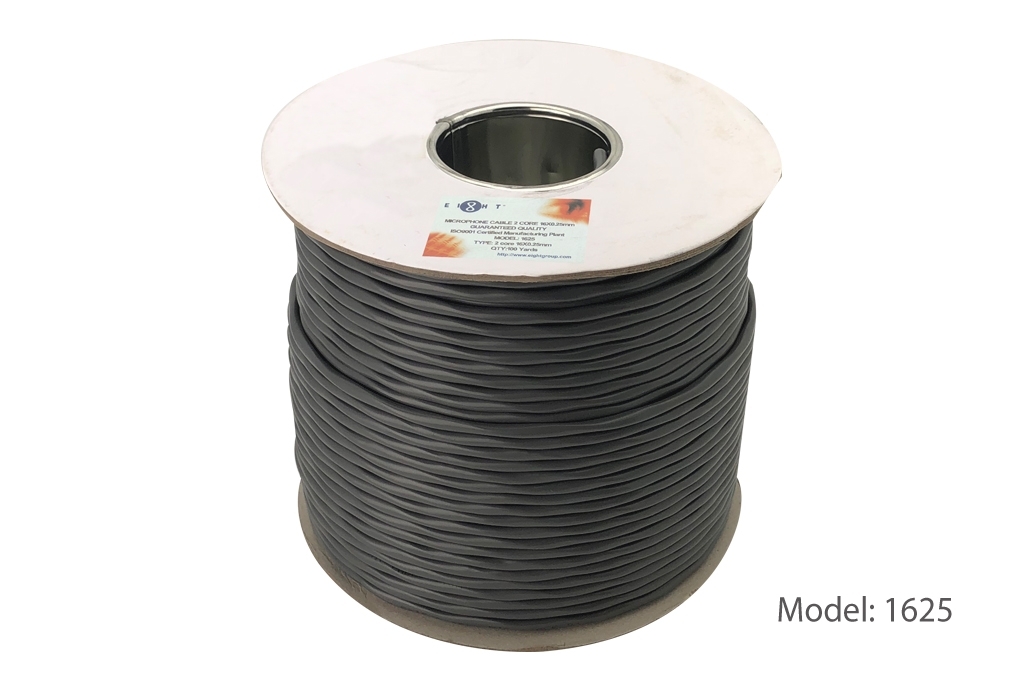

1625

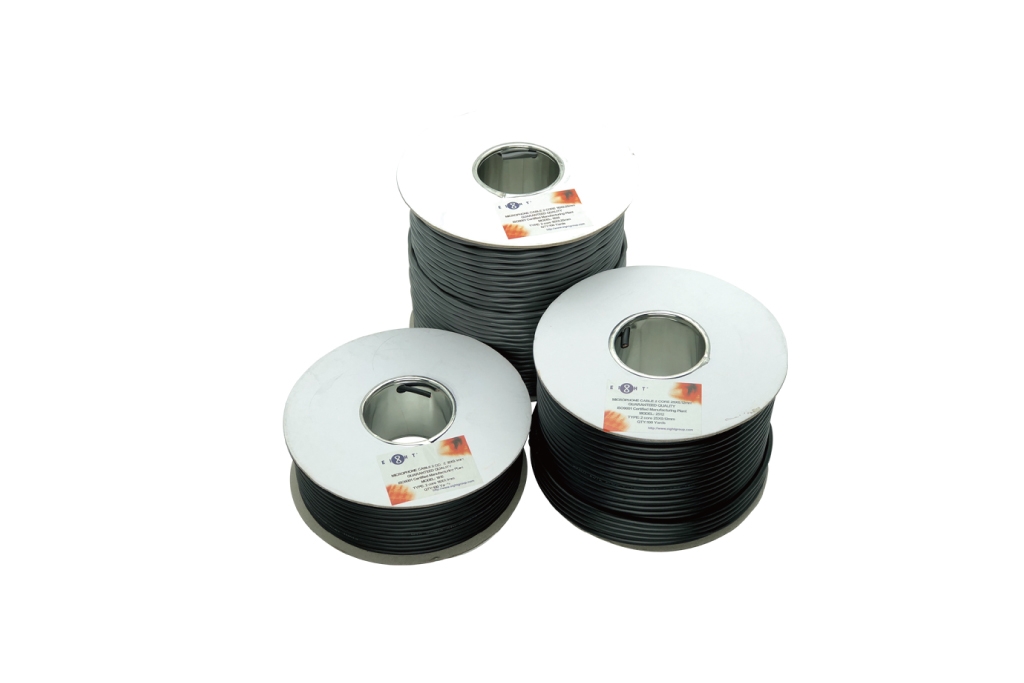

Microphone Cable
Length:
Price: HK$0
download-icon Download Specification
Features
  • Supreme quality
  • Intercom / PA systems
  • Sound / Audio systems
  • LSZH Jacket option available
Specification


General

Conductor Material  TC
  Cores 2
  Max Resistance(20°C) 24.5Ω/km
  Construction(No./mm) 16/0.25mm
Insulation Insulation  PE
  Insulation Dielectric 2.2mm±0.1mm
  Insulation Color White &Transparent
Filler Material  /
Shield AL Foil AL Foil
  Braid(No./mm) /
  Drain wire(No./mm) 10/0.25TC
Jacket Jacket Material PVC
  Jacket Color Grey
  Jacket Thickness 0.65mm
  Jacket O.D 5.5mm±0.2mm
Operation Temperature    -20°C To +60°C
Suitable for    Indoor

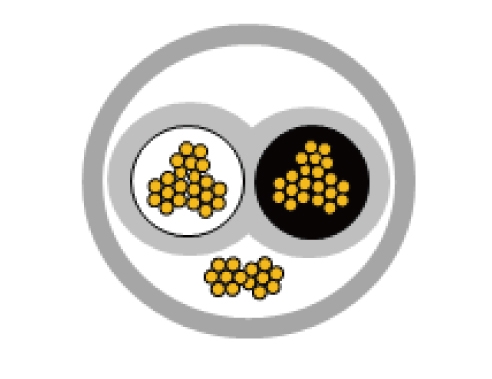

Construction

Self Photos / Files - 1625Construction
