2008

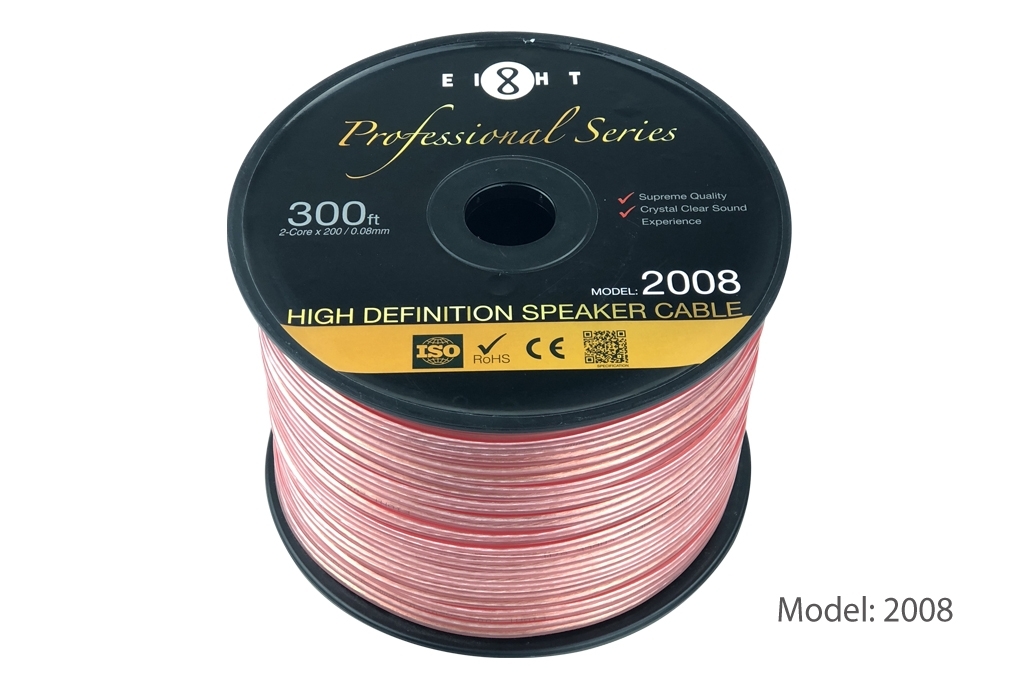

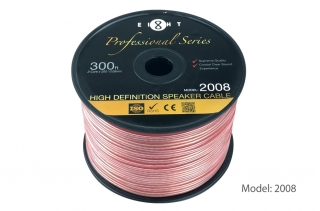

Speaker Cable
Price: HK$0
download-icon Download Specification
Features
  • Intercom / PA systems
  • Sound / Audio systems
  • LSZH Jacket option available
Specification


General

Conductor Material BC
  Diameter (mm) 200/0.08
  Max Resistance(20°C) 18Ω/km
  Construction (mm) 2x200/0.08
Insulation Insulation PE
  Insulation Thickness 0.24mm
  Insulation Diameter )mm) 1.8 ± 0.02
  Insulation Color Transparent
Jacket Jacket Material  PVC
  Jacket Color Transparent
  Jacket Thickness (mm)  0.9 ± 0.02
  Jacket O.D (mm) 4.2x8.4 ± 0.05
Drain Wire ---
Shield   ---
Operation Temperature -15°C to +65°C
Working voltage 300/300V


Construction

Self Photos / Files - 2008Construction
