Features
  • Reliable structure, static loading capacity: 1500KG
  • Adjustable feet and castors options are available
  • Baying cabinets together easily

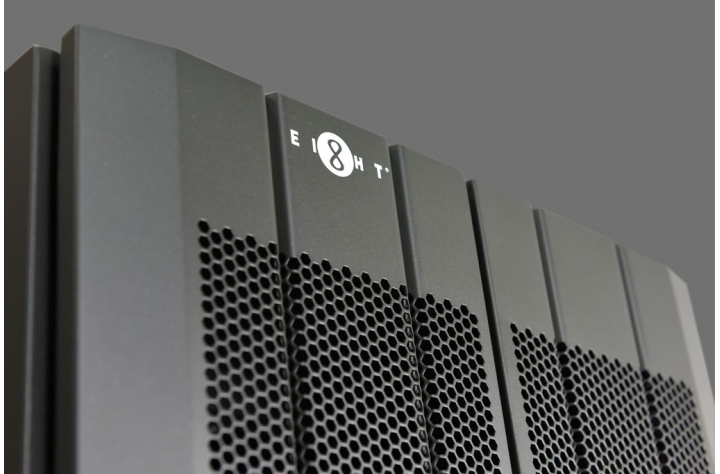

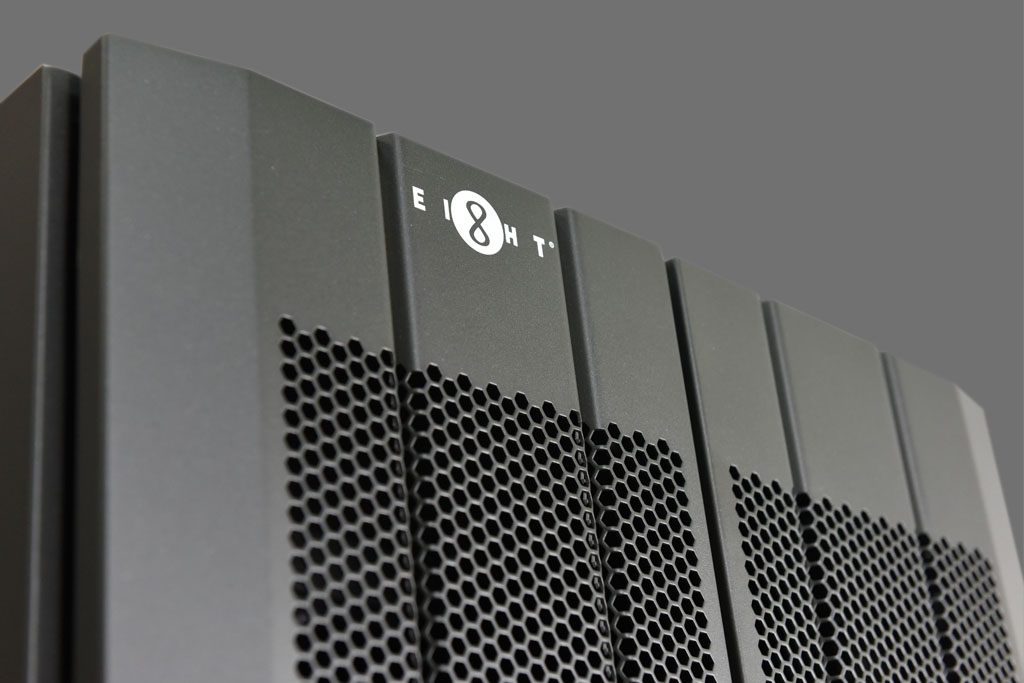

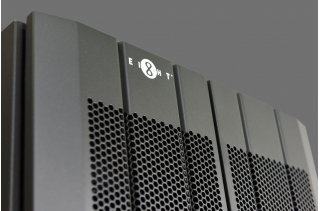

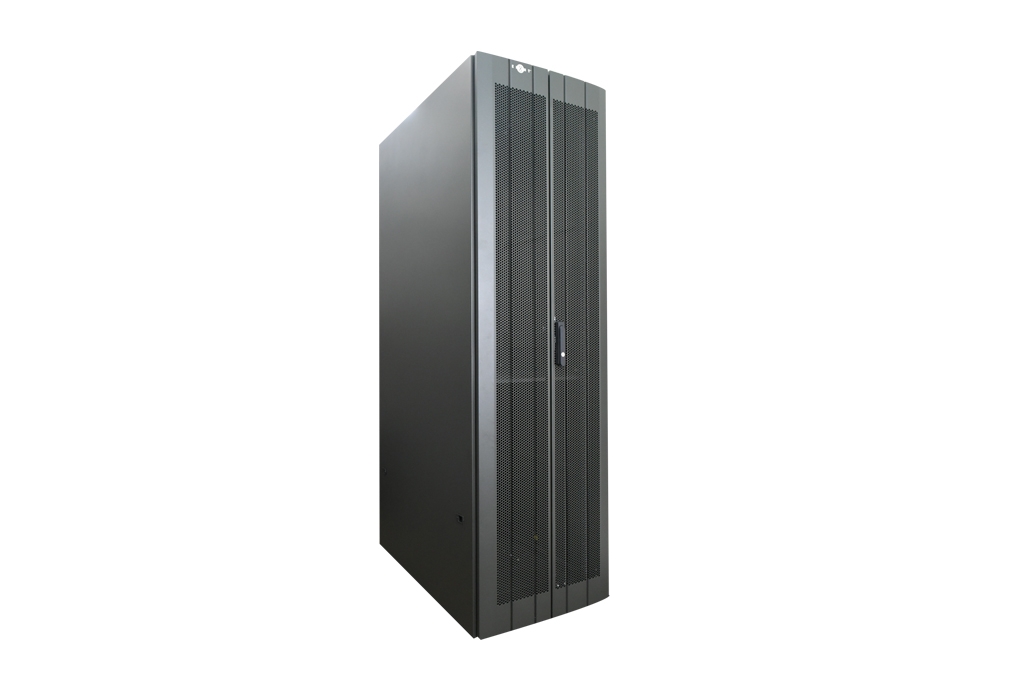

  • Double mesh front door & rear door, steel rear door

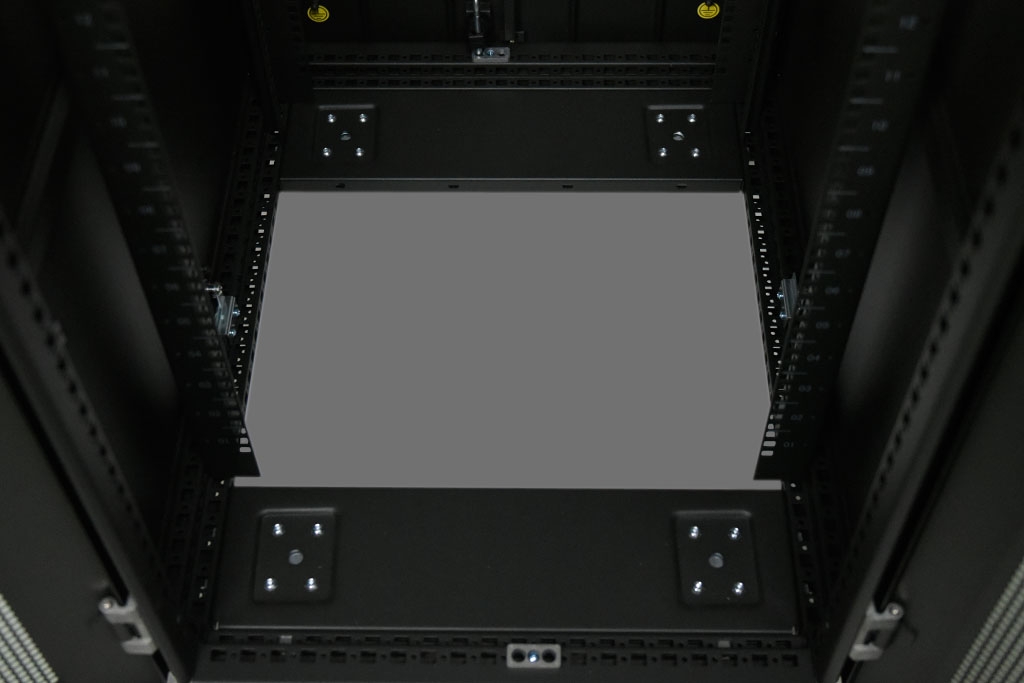

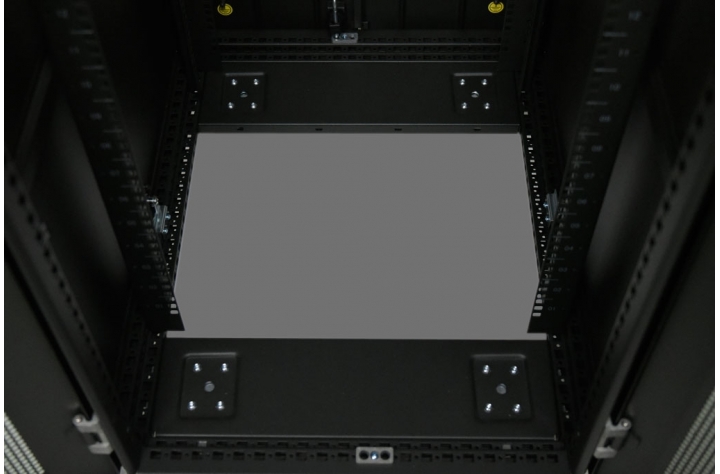

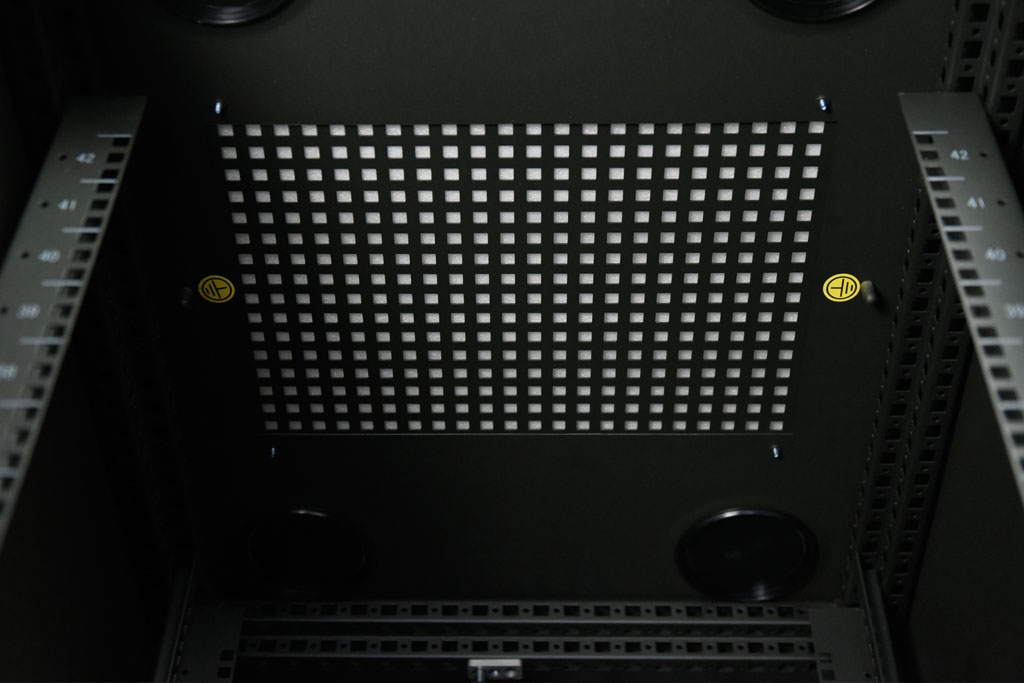

  • Top and bottom cable entries

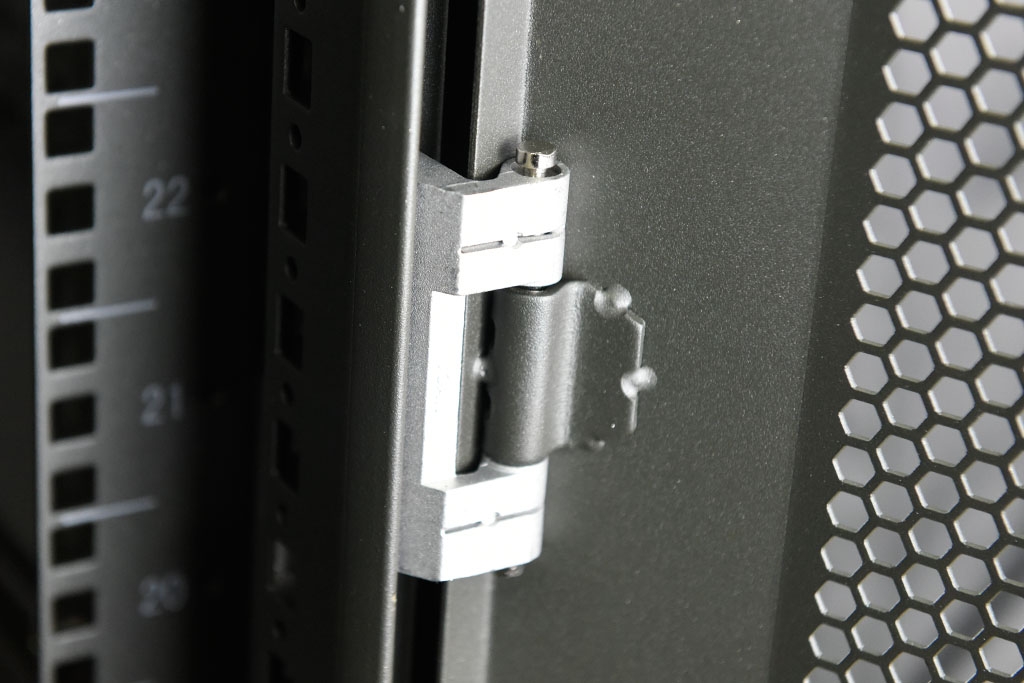

  • Front door, rear door and side panel can be easily removed

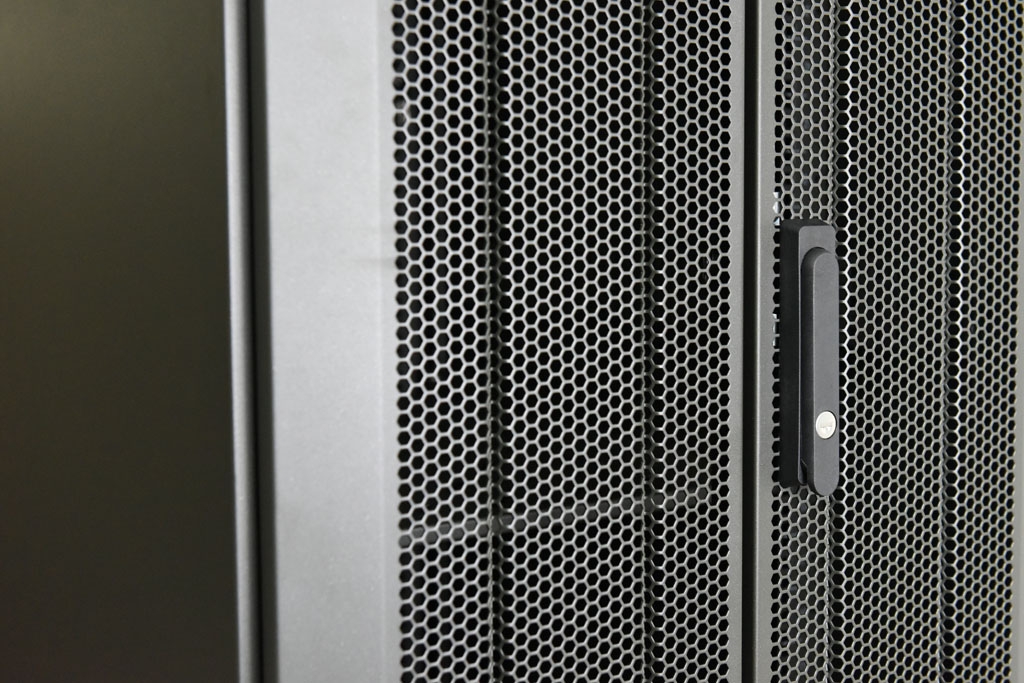

  • Front & rear door with spring lock
  • Optional accessories
Specification
  •

    General

    Standard

    Comply with ANSI/EIA, RS-310-D; IEC297-2; DIN41491: PART 1; DIN41491: PART 7; GB/T3047.2-92 standard

    Compatible with 19” international standard, metric system and ETSI standard

    Static loading capacity 1500KG
    Cable entry Top and bottom
    Door Lock Front & rear door with spring lock



    Materials

    Panel SPCC cold rolling steel plate

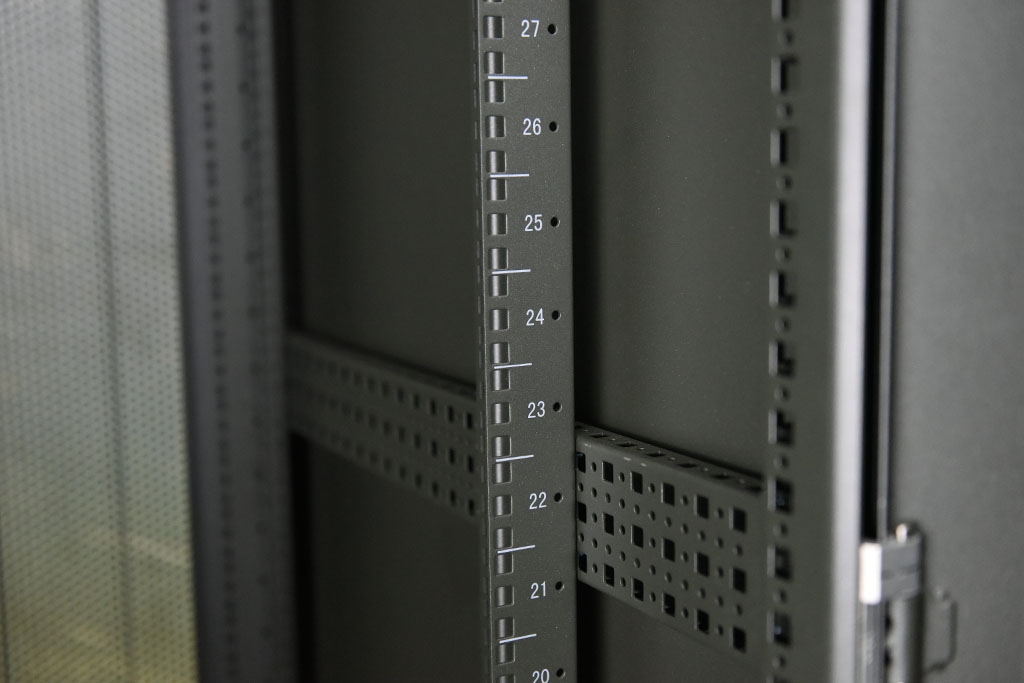

    Mounting profile thickness 2.0mm
    Others panel thickness 1.2mm
