27U

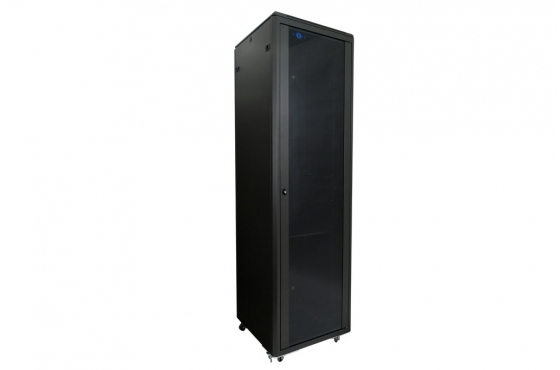

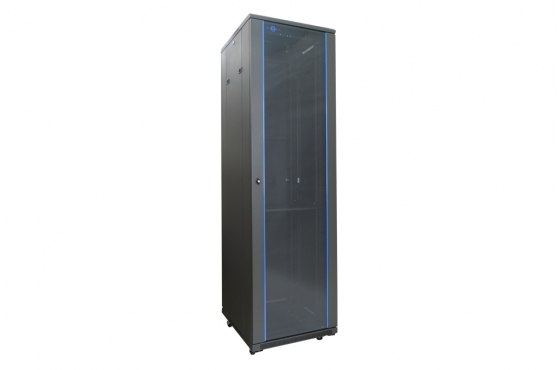

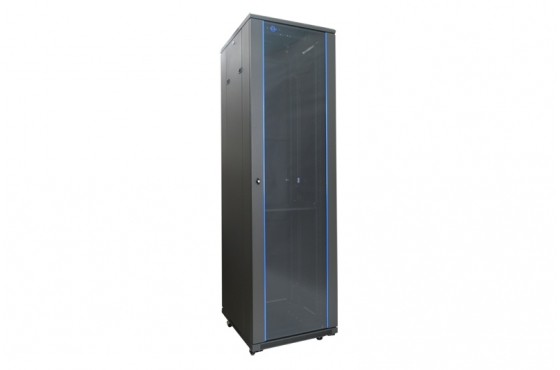

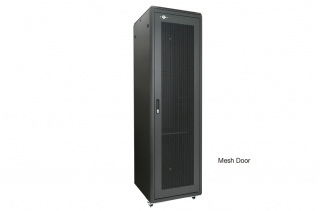

27U Standard Cabinet
Price: HK$0
download-icon Download Specification
Features
  • Reliable structure, static loading capacity: 300KG
  • Simple structure, easy operation, precision size

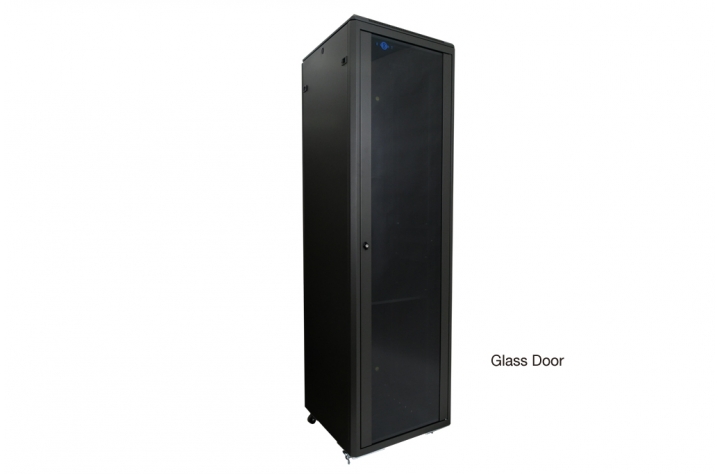

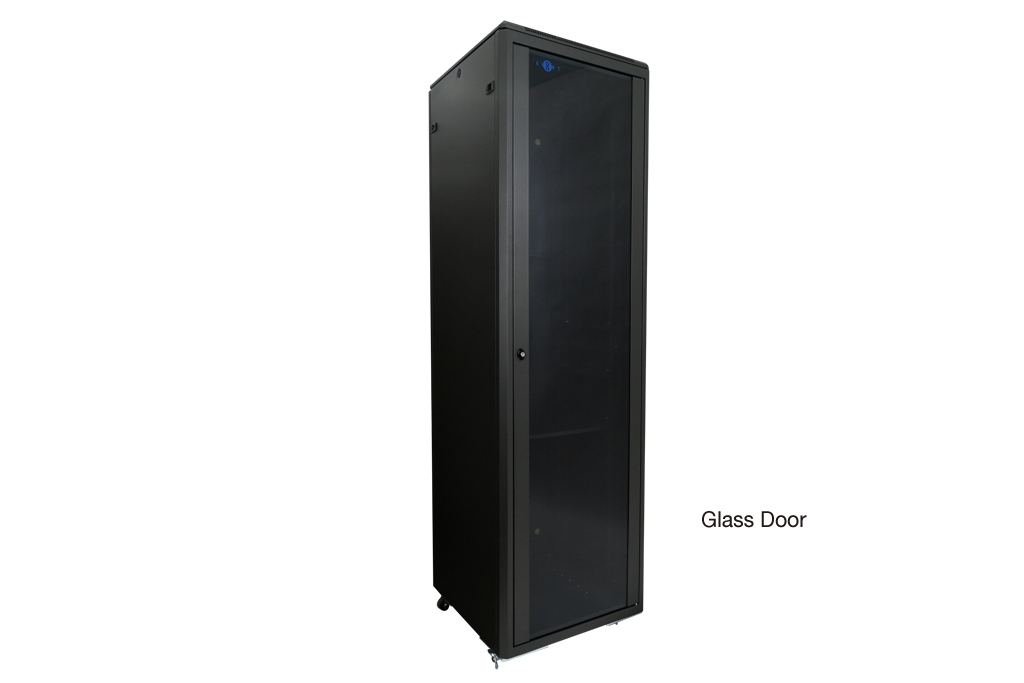

  • Tempered glass front door
  • Castor wheels and support feet option are available

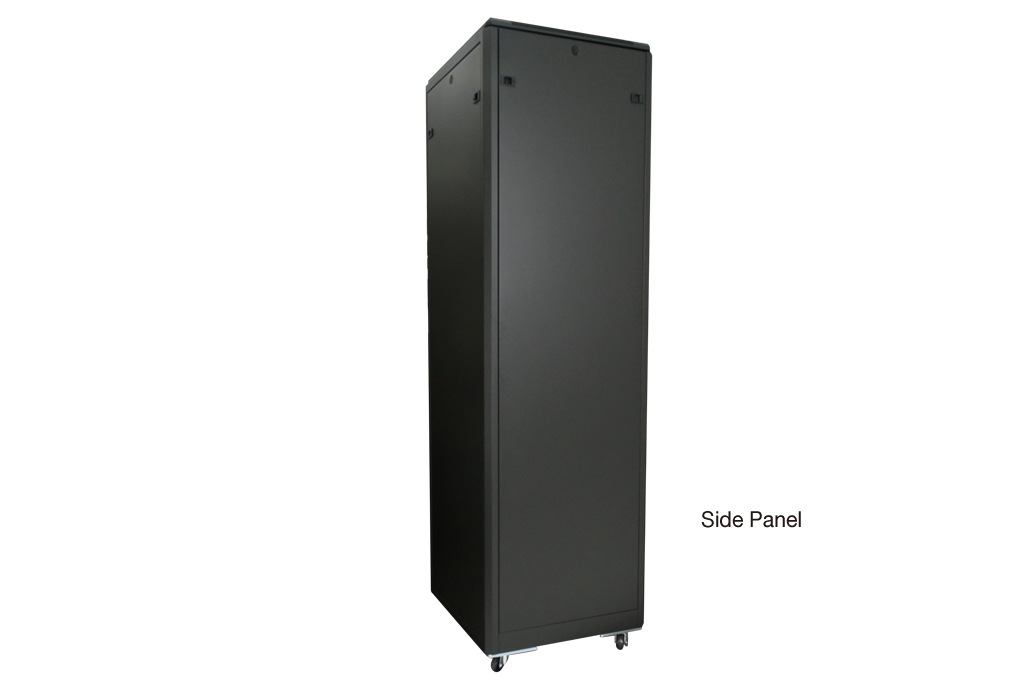

  • Quick install side panel and rear door for easier maintenance

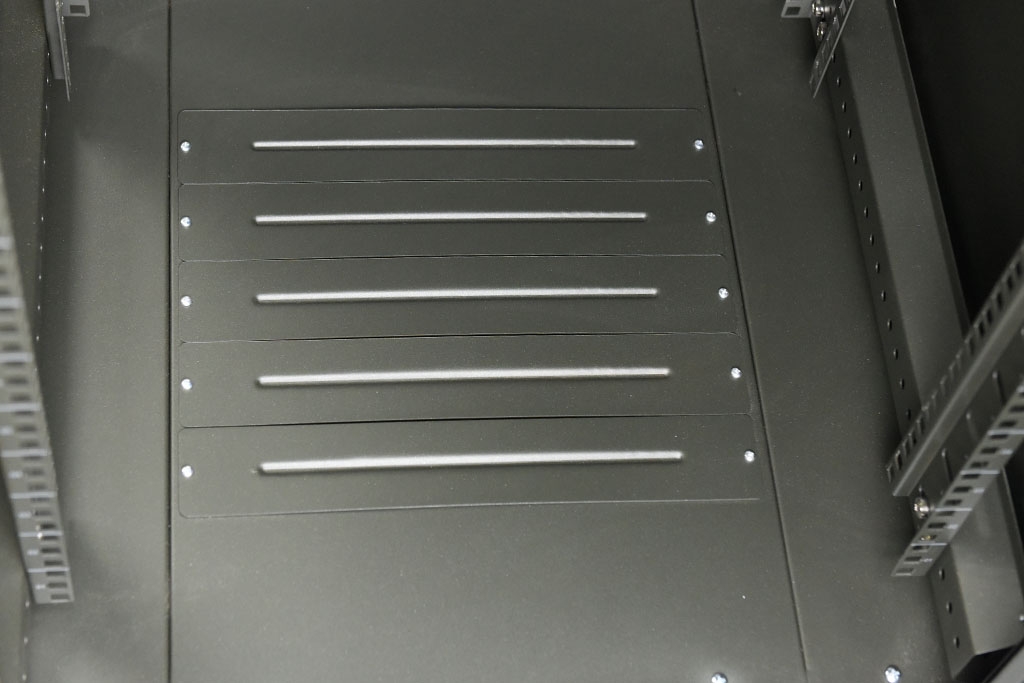

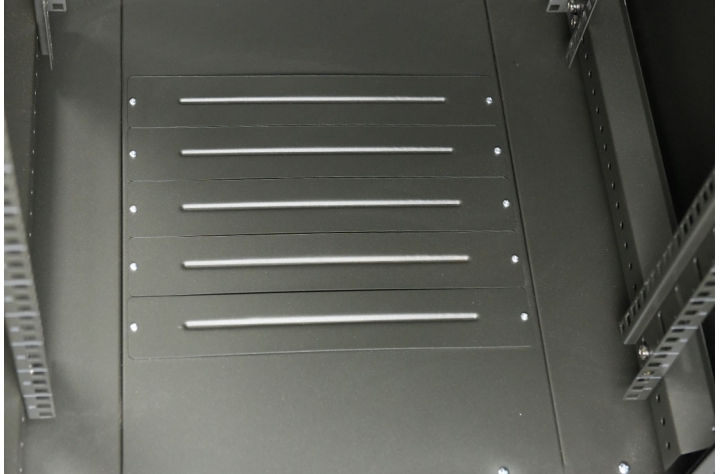

  • The bottom cable entry can be adjusted according to the requirment
  • Optional accessories
Specification


General

Standard

Comply with ANSI/EIA, RS-310-D; IEC297-2; DIN41491: PART 1; DIN41491: PART 7; GB/T3047.2-92 standard

Compatible with 19” international standard, metric system and ETSI standard

Static loading capacity 300KG
Cable entry Bottom



Materials

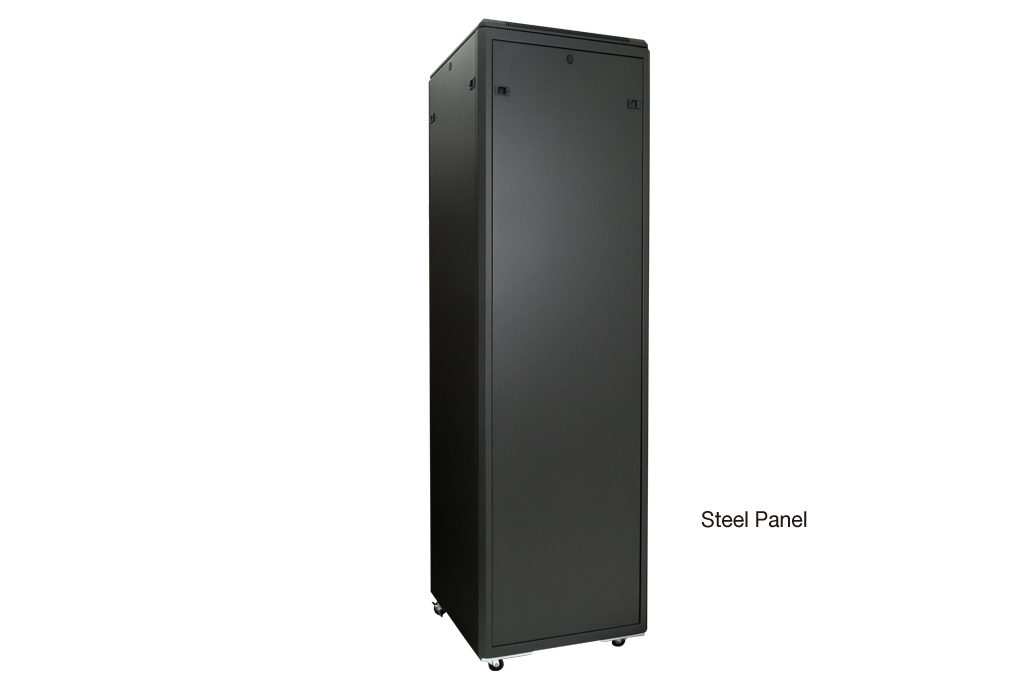

Panel SPCC cold rolling steel plate

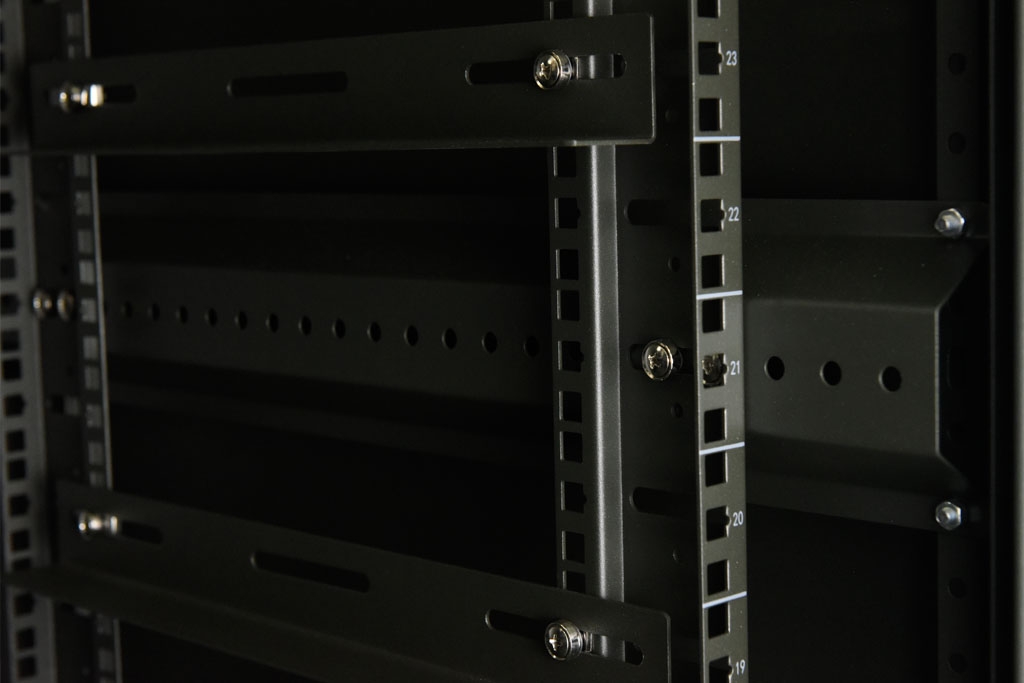

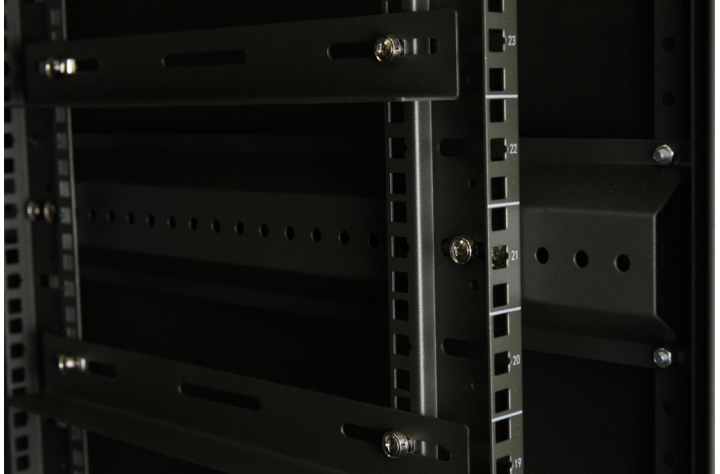

Mounting profile thickness 1.5mm
Others panel thickness 0.8mm
