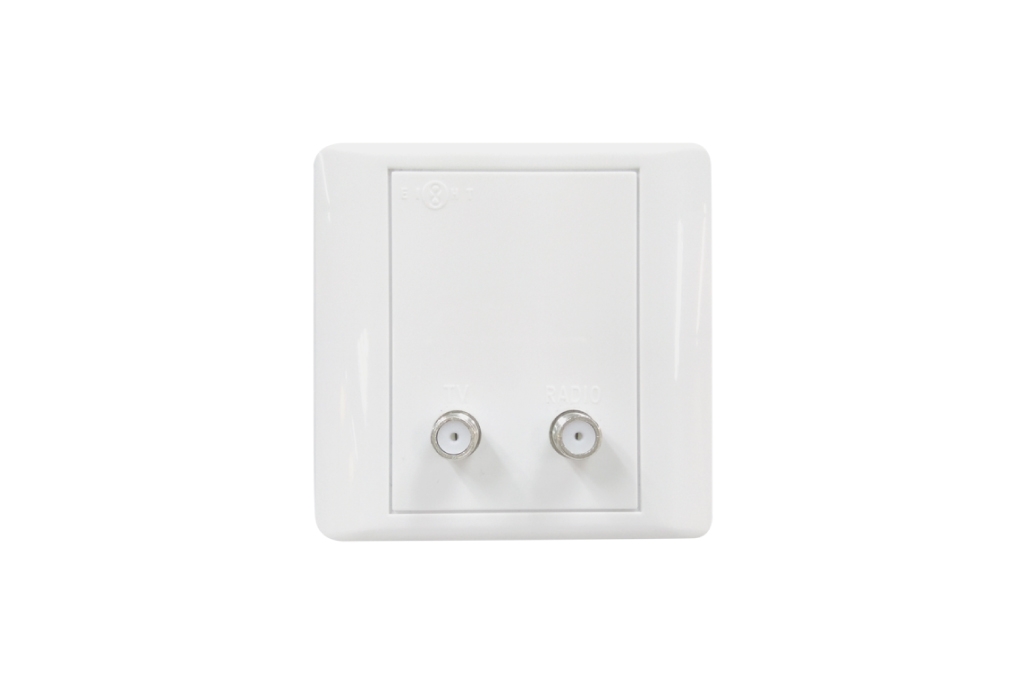

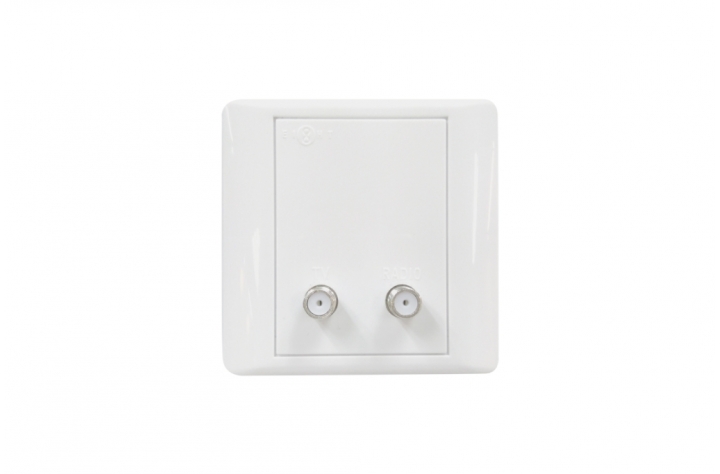

TV15F
TV/FM Wallplates
Price: HK$0
download-icon Download Specification
Features
  • Zinc diecast housing
  • Screening factor>95dB
  • High RFI
Specification
Model   TV15F (Loop Through)
Insertion Loss IN-TV 5 - 550 MHz ≤ 1.2 dB Max
  550 - 860 MHz ≤ 1.3 dB Max
  860 - 1000 MHz ≤ 1.5 dB Max
Insertion Loss IN-FM 88 - 108 MHz 12.5 dB Max
Isolation FM-TV 5 - 550 MHz ≥ 40 dB Min
  550 - 860 MHz ≥ 40 dB Min
  860 - 1000 MHz ≥ 40 dB Min
Return Loss TV (MIN) 5 - 550 MHz ≥ 16 dB Min
  550 - 1000 MHz ≥ 14 dB Min
Return Loss FM (MIN) 88 - 108 MHz ≥ 12 dB Min
RFI (MIN) 5 - 1000 MHz ≥ 90 dB Min
Indepdance   75 Ω
