C6AUSG

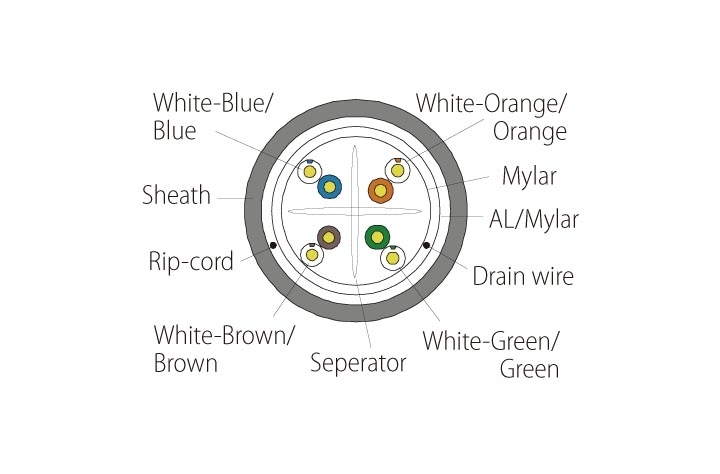

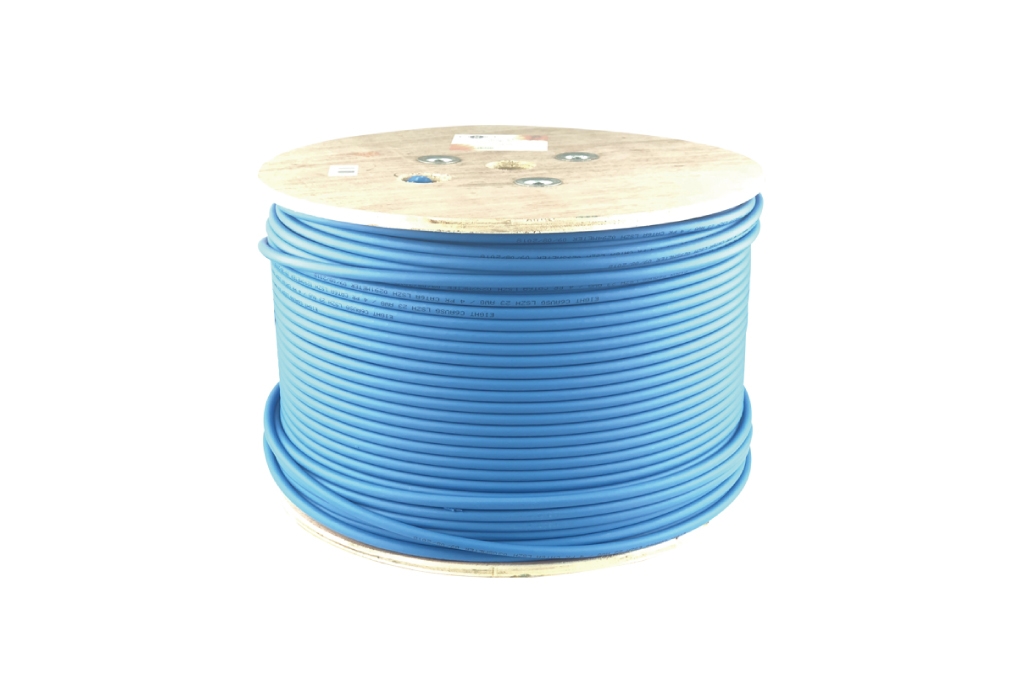

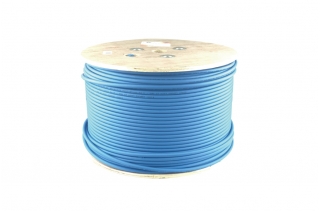

Cat 6A F/UTP Cable
Price: HK$0
download-icon Download Specification
Features
  • Conductor: 23 AWG, solid copper wires
  • Outer Jacket: LSZH
  • Standard:

ISO/IEC 11801, ANSI/TIA- 568-C.2, IEC 61156-5, EN 50575:2014, EN 60332-1-2:2004, EN 13601-6:2004,
UL444 & C22.2 No.214

  • Application :

Data communications, Local area networks, Building signaling systems

  • ISO9001Certified Manufacturing Plant
Specification

Standard

Standard

ISO/IEC 11801, ANSI/TIA- 568-C.2, IEC 61156-5, EN 50575:2014, EN 60332-1-2:2004, EN 13601-6:2004, UL444 & C22.2 No.214

ISO9001Certified Manufacturing Plant



General

Operating Temperature Range  -20°C ~ 75°C
Maximum pulling Tension  110N
Minimum bending Radius  4D mm
Nominal Mutual Capacitance@ 1KHz 5.1 nF / 100m
Maximum Capacitance Unbalance  330 pF / 100m
Maximum Delay @1Hz 570 ns / 100m
Maximum Delay Skew  45 ns / 100m
Maximum Conductor DC Resistance @20°C 9.38 Ω / 100m
Maximum DCR Unbalance @20°C   5%
Maximum Operating Voltage (VRMS) ≦ 80V
Characteristics Impedance 100 Ω


Electric Performance

Frequency

(MHz)

Attenuation

(dB/100m)

Next

(dB)

Return Loss

(dB)

Power Sum

PSNEXT (dB)

Power Sum

ELFEXT (dB)

Power Sum

PSELFEXT (dB)



1 --- 74.3 20 72.3 68 65
4 3.8 65.3 23 63.3 56 53
8 5.3 60.8 24.5 58.8 49.9 46.9
10 5.9 59.3 25 57.3 48 45
16 7.5 56.2 25 54.2 43.9 40.9
20 8.4 54.8 25 52.8 42 39
25 9.4 53.3 24.3 51.3 40 37
31.25 10.5 51.9 23.6 49.9 38.1 35.1
62.5 15 47.4 21.5 45.4 32.1 29.1
100 19.1 44.3 20.1 42.3 28 25
200 27.6 39.8 18 37.8 22 19
250 31.1 38.3 17.3 36.3 20 17
300 34.3 37.1 16.8 35.1 28.5 15.5
500 45.3 33.8 15.2 31.8 14  11.0
