C5EFSG

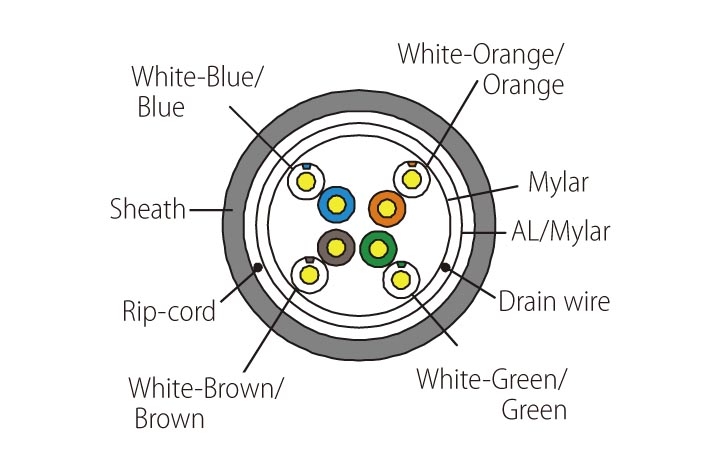

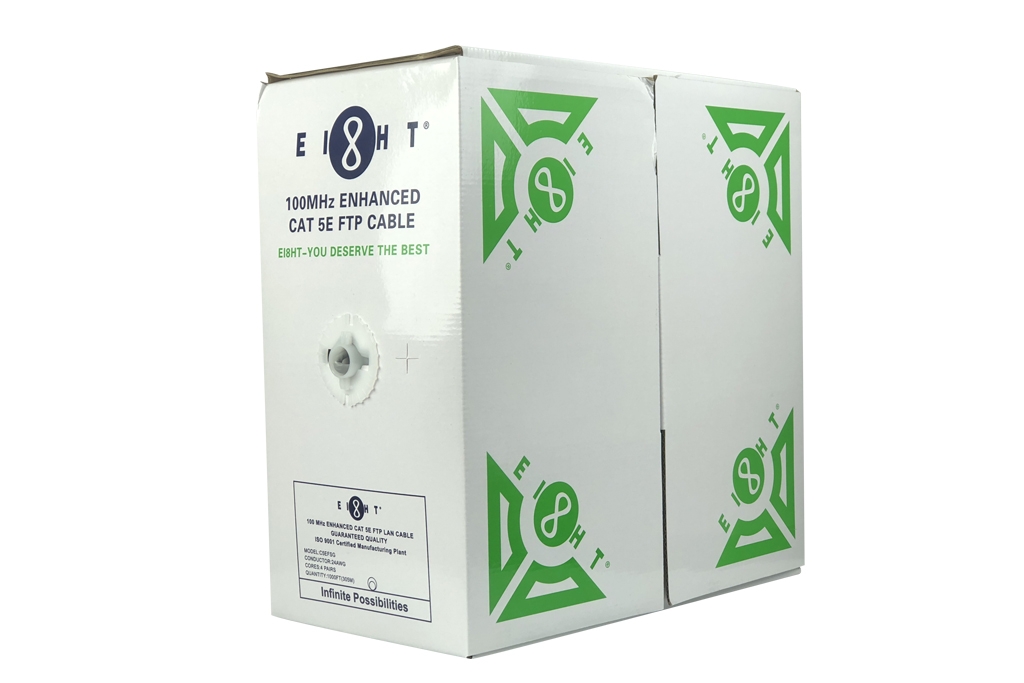

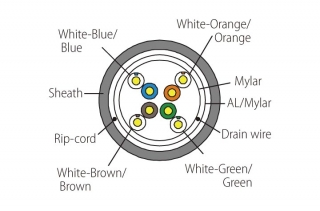

Cat 5e F/UTP Cable
Price: HK$0
download-icon Download Specification
Features
  • Conductor: 24  AWG, solid copper wires
  • Outer Jacket Polyvinyl Chloride
  • Standard:

ISO/IEC 11801, ANSI/TIA- 568-C2, UL444,

LSZH is available , Armour version available

  • Application:

Data communications, Local area networks, Building signaling systems

  • ISO9001Certified Manufacturing Plant
Specification

Standard

Standard

ISO/IEC 11801, ANSI/TIA- 568-C2, UL444,

ISO9001Certified Manufacturing Plant



General

Operating Temperature Range  -20°C ~ 75°C
Maximum pulling Tension  70N
Minimum bending Radius  4D mm
Nominal Mutual Capacitance@ 1KHz 5.1 nF / 100m
Maximum Capacitance Unbalance  330 pF / 100m
Maximum Delay @1Hz 570 ns / 100m
Maximum Delay Skew  45 ns / 100m
Maximum Conductor DC Resistance @20°C 9.38 Ω / 100m
Maximum DCR Unbalance @20°C  5%
Maximum Operating Voltage (VRMS) ≦ 80V
Characteristics Impedance 100 Ω


Electric Performance

Frequency

(MHz)

Attenuation

(dB/100m)

Next

(dB)

Return Loss

(dB)

ACR

(dB)

Power Sum

Next (dB)

Power Sum

ELFEXT (dB)

Power Sum

ACR(dB)



1 2 65.3 20 63.3 63.3 63.8 61.3
4 4.1 56.3 23 52.2 54.3 51.8 50.2
8 5.8 51.8 24.5 46 49.8 45.7 44
10 6.5 50.3 25 43.8 48.3 43.8 41.8
16 8.3 47.2 25 39 45.2 39.7 37
20 9.3 45.8 25 36.5 43.8 37.8 34.5
25 10.4 44.3 24.3 33.9 42.3 35.8 31.9
31.3 11.7 42.9 23.6 31.2 40.9 33.9 29.2
62.5 17 38.4 21.5 21.4 36.4 27.9 19.4
100 22 35.3 20.1 13.3 33.3 23.8 11.3
