WP01L, WP02L
WP01L, WP02L
WP02L

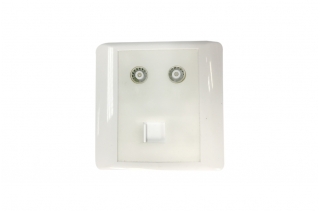

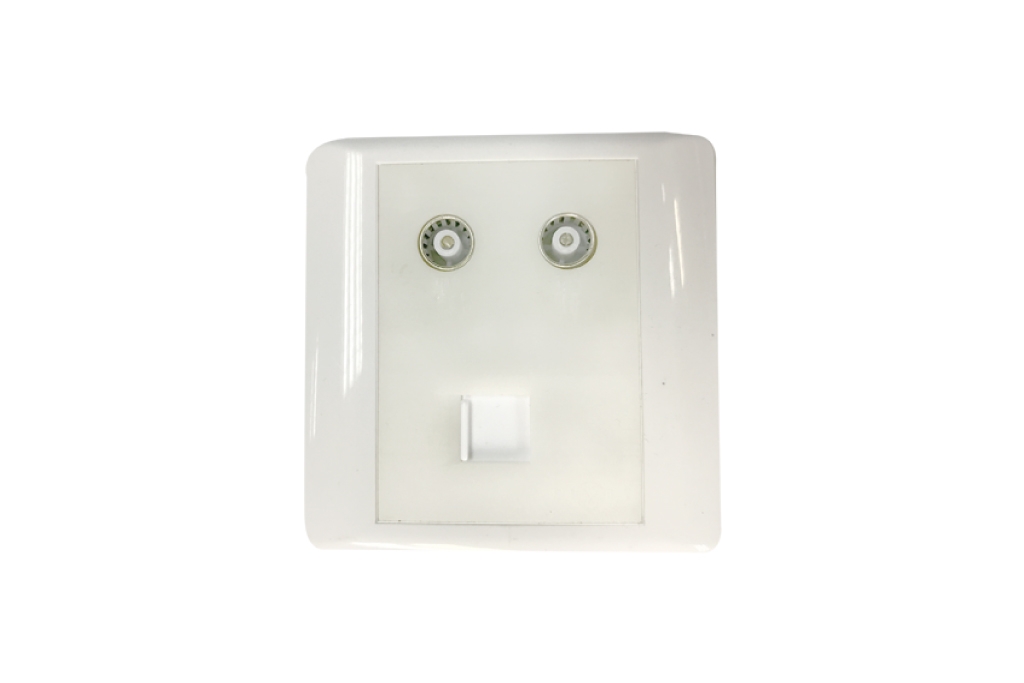

TV/FM Wallplate + Data Port
Price: HK$0
download-icon Download Specification
Features Specification Download Documents
Features
  • IEC Connector
  • Data Port



Specification


General

Frequency 5 - 1000 MHz
Insertion Loss
IN-TV 5 - 1000 MHz 5.5 dB
IN-RADIO FM&DAB 10 dB
Through Loss
FM 87 - 108 MHz 3.6 dB
TV 470 - 860 MHz 4.5 dB
Isolation Between FM and TV ≧ 40 dB
Data Port Plug with Ethernet / Telephone Keystone Jack
