Features
- LED display or LCD display selectable
- Microprocessor-based digital control
- Boost and buck AVR for voltage stabilization
- Auto sensing frequency
- Wide input voltage range
- Power-on self test
- Cold start
- Auto restart when mains power is restored
- Auto track mains phase to ensure that inverter output voltage has same phase with utility voltage, reducing transfer time and peak surge
- Intelligent battery management: battery temperature compensation to extend the battery life; three-stage charging to shorten recharge time
- Short circuit, battery overcharge / over discharge, overload, surge protections
- Automatic charging in OFF mode
- Optional no-load shutdown
- Optional USB communication port and RJ45 protection
- Unattended safety shutdown: system alarm and auto Power-Off by USB interface communicating with PC

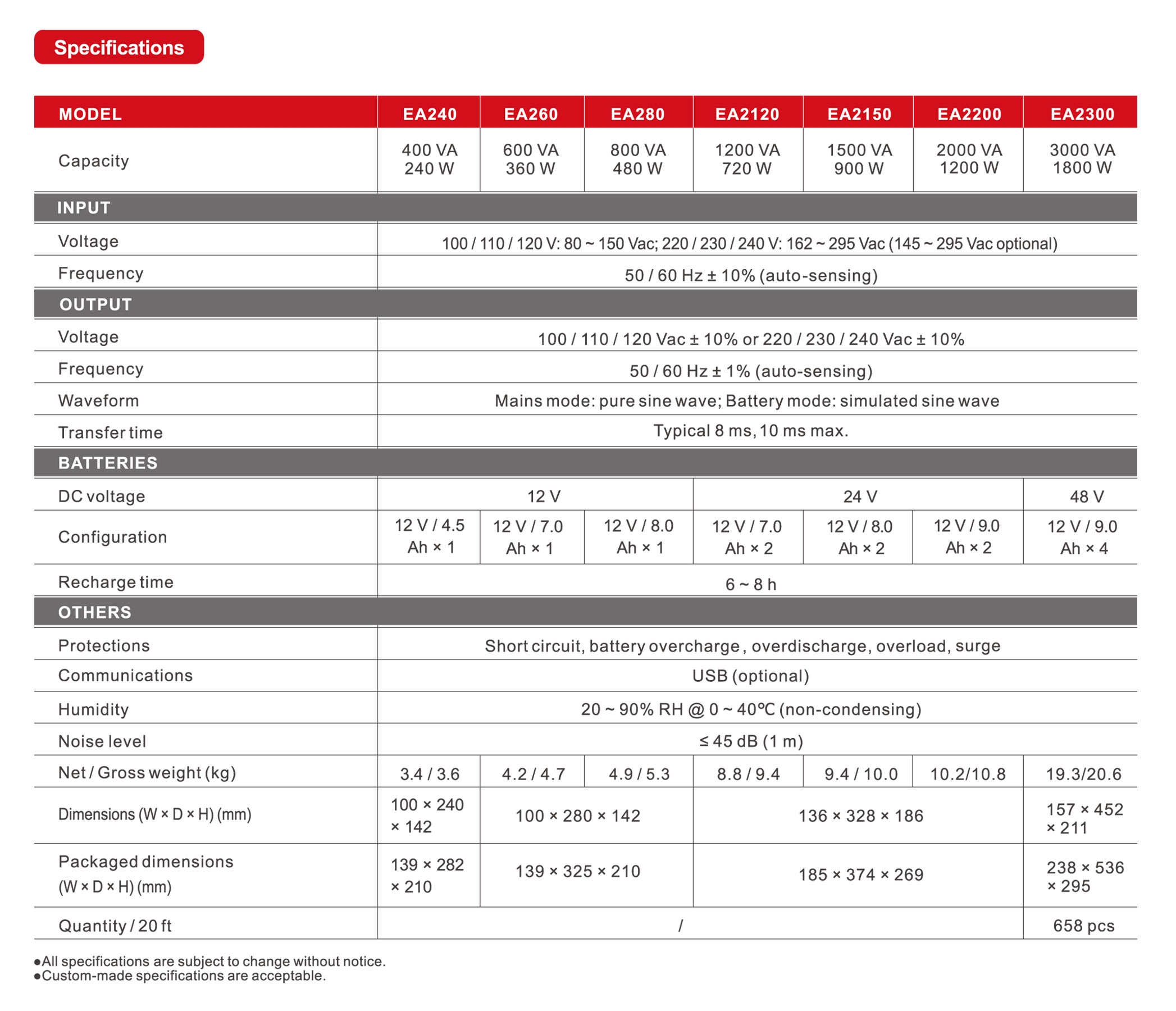

Specification
