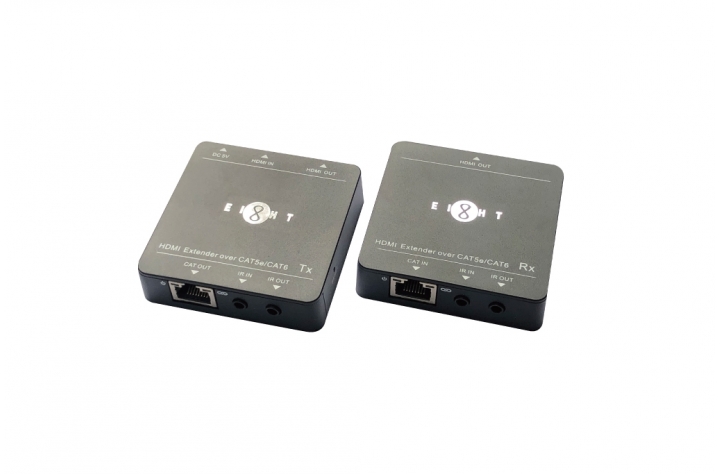

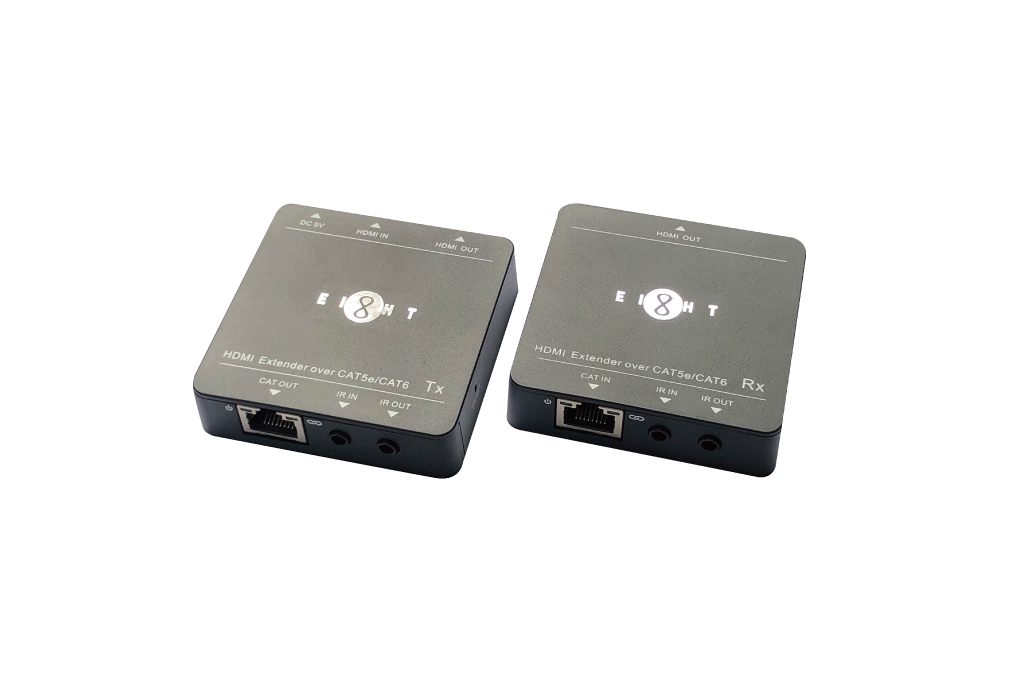

H1.3LAN55_LT
HDMI 1.3 Extender (50m)
Price: HK$0
download-icon Download Specification
Features
  • HDMI1.3, HDCP1.4 compliant
  • Built-in EDID to ensure HDMI signal transmission from source to display
  • Extends 1080P @60Hz signal up to 55m (Cat6 )
Specification


General

HDMI In Port  TX: HDMI, RX: RJ45
HDMI Out Port  HDMI (Loop Through)
IR Control Function IR IN,  IR OUT ( 3.5mm mini jacks)
Transmission Distance 1080p@60Hz≦55m (CAT6)
HDMI Standard HDMI 1.3, HDCP 1.4 compliant
EDID Management Built-in EDID
Power Supply Input AC100V~240V, 50/60Hz
Power Supply Output  DC 5V 1A
Power Consumption 4W (Max)
Working Temperature -10 to +55°C
Relative Humility 10% to 90%
Dimensions (LxWxH) 66  x 66 x 16.8mm

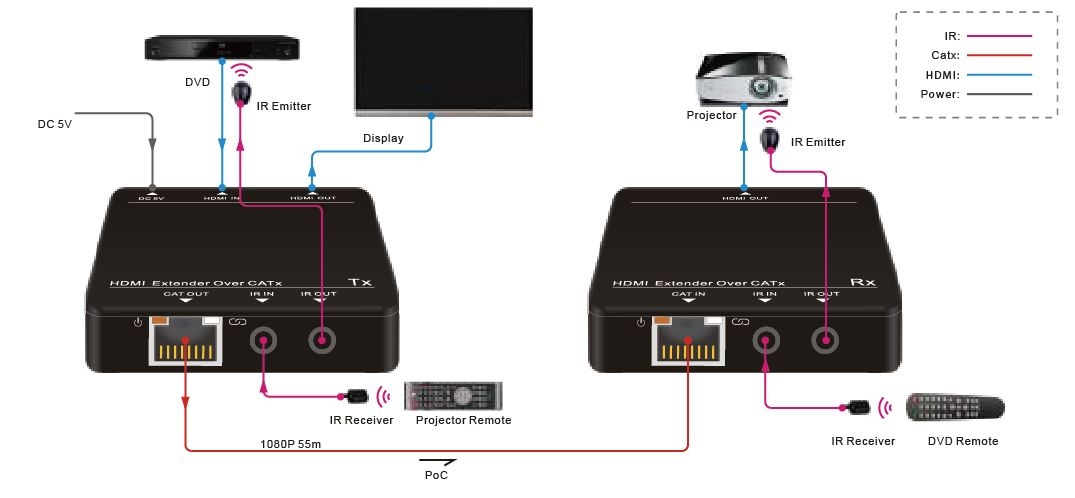

Connection Diagram

Self Photos / Files - Lan55 Connection Diagram
