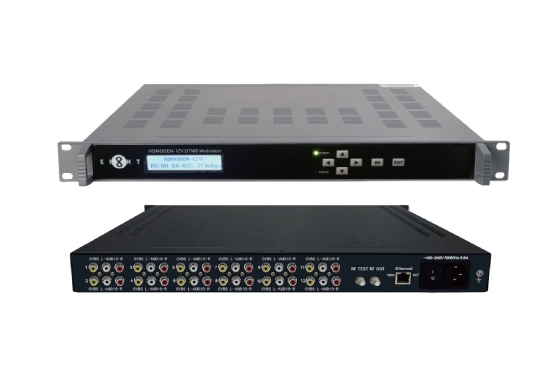

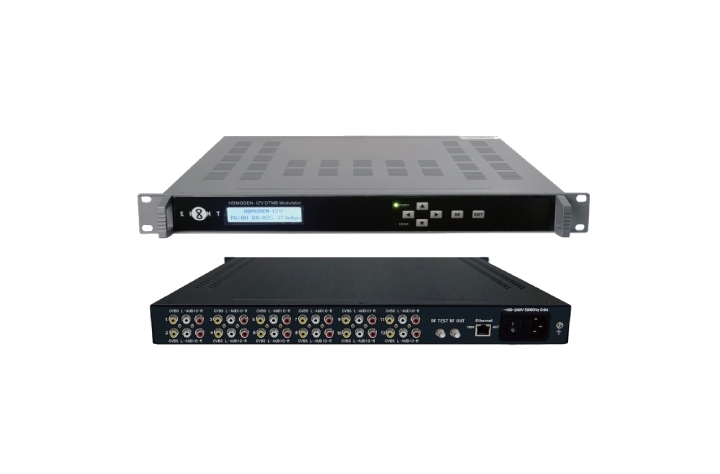

HDMODEN-12V
12 AV in DTMB Encoder Modulator
Price: HK$0
download-icon Download Specification
Features
  • Integrated encoder and modulator
  • 12 CVBS + Audio
  • DTMB RF out
  • RF Range: 30-960MHz
  • Keyboard+LCD control and network management
Specification

Input

Input   12 x (CVBS x 3), RCA inferface, level 1.0 Vp-p


Video Encoding

Video Coding MPEG-2/H.264
Resolution   720x576 (PAL); 720x480(NTSC)
Bit Rate   1.0~15Mbps continuously adjustable per channel


Audio Encoding

Encoding   MPEG-1, Layer 1/2
Sampling   32, 44.1, 48kHz
Code Rate   64, 128, 192, 256, 384kbps


Modulator

Output   DTMB RF, F connector
Format   DTMB- GB20600-2006
DTMB Modulation Frequency 36-900MHz, 1kHz step
  Constellation 4QAM-NR, 4 QAM 16QAM, 32 QAM, 64QAM
  Interleaving 240, 720
  Output level 70~90dBuV
  Frame Mode 420 fixed , 595 fixed, 945 fixed, 420 var, 945 var
  MER >35dB
  FEC 0.4, 0.6, 0.8



General

Operating temperature 5~45°C
Storage temperature -20~80°C
Power   AC100~240V, 50Hz, 25W
