SM10AH

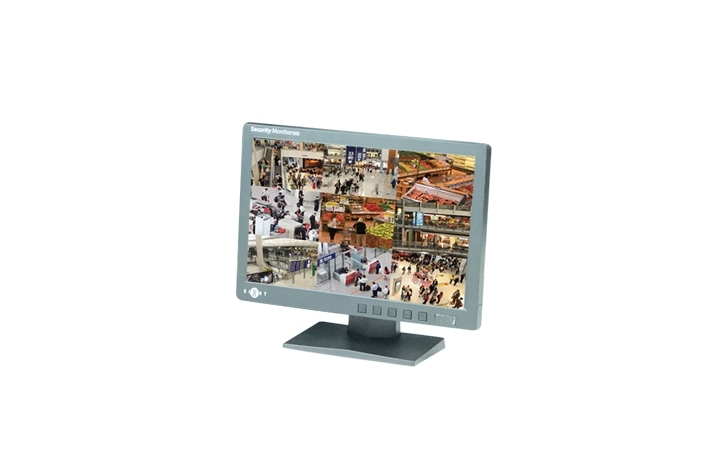

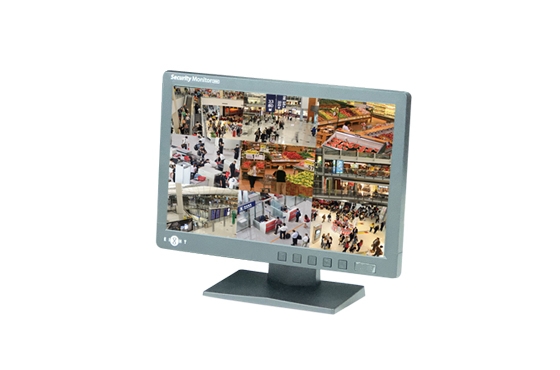

16:10 LED Security Monitor
Price: HK$0
download-icon Download Specification
Features
  • 5ms response time
  • HDMI, BNC, VGA inputs
  • Comb filter
  • Audio in, Audio out
  • Built-in speakers
  • Noise reduction
Specification

Panel

Inch   10.1”
Resolution   1280 x 800 @ 60Hz
Brightness   300 cd/m²
Contrast   800:1
Viewing Angle Degree   178°(H) / 178°(V)
Pixel Pitch (mm)   0.1695(H) x 0.1695(V)



Scan System   Interlace
Comb Filter   Yes
Screen Mode   16:10


Input

Composite   1 (BNC)
VGA   1
HDMI   1
Audio   1 (3.5mm Stereo Plug)


Output


Composite   1 (BNC)
Audio   Built-in 1W Stereo Speaker


General

Power Supply   DC 12V
Power Consumption   Less than 15W
Dimension A 246 mm
  B 231 mm
  C 173 mm
  D 85 mm
  E 43 mm
Weight   1.5 Kg
VESA   75 x 75 mm


Dimension (Unit)

Self Photos / Files - Monitor Dimension




Download Documents
