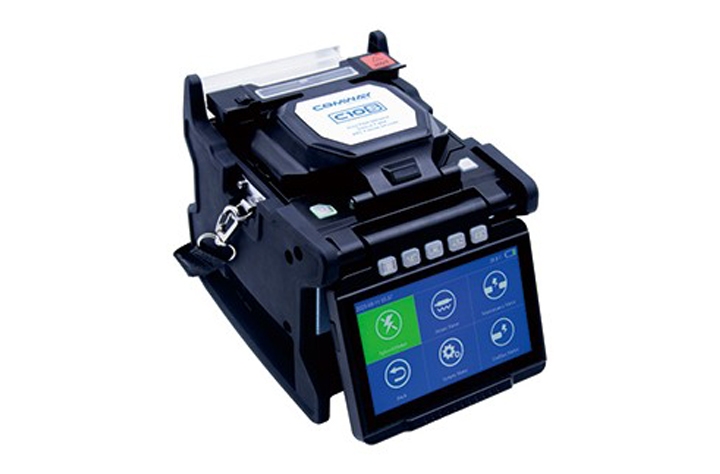

Features
- Remote Locker Anti-theft
- 6 Motors Core Alignment
- 5 Inch color screen
- 750X Single axis view
- 5 Sec Splicing
- 8 Sec Heating
Specification
General
| Size | 170mm(D) x 149mm(W) x 154mm(H) |
| Weight | 1.97kg (2.51kg with battery) |
| Fiber Alignment | 6 Motors Core Alignment |
| Fiber Type | Single Fiber |
| Splice Mode | SM(ITU-T G.652), EB(ITU-T G.654), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) |
| Fiber Diameter | Cladding Diameter 80~150µm, Coating Diameter 100~3000µm |
| Cleave Length | 250µm Cladding Diameter 5~16mm, over 250µm cladding diameter 16mm |
| Splicing Programs | Max. 200 |
| Splicing Time |
5 sec. [SM Fast] program, 10 sec. [SM G652] program |
| Heating Programs | Max. 30 |
| Heating Time | Adjustable, 8 sec. typical |
| Splice Protector | 10~60mm |
| Splice Image Capture | Max. 800 |
| Splice Data Storage | Max. 20000 |
| Splice Loss | SM:0.01dB, MM:0.01dB, DS:0.02dB, NZ/NZDS:0.02dB, BI:0.02dB |
| Return Loss | >>60dB |
| Loss Estimation | Provided |
| Operation Condition | Altitude 0~5000m, Humidity 0~95%,Temperature -10~+50°C, Wind velocity up to 15m/s |
| Storage Condition | Humidity 0~95%, Temperature -40~+80°C (Battery -20~+40°C) |
| Tension | 1.96~2.25N |
| Screen | 5 inch touch screen |
| Fiber Magnification | 320x for both X&Y dual axis view, 750x for X or Y single axis view (zoom up) |
| Port | High speed USB |
| Electrode Life | 5000 ARC discharges |
| Power Supply | AC100-240V, 50/60Hz |
| Battery Parameters | 8400mAh High capacity battery, more than 500 times splicing and heating |
