Features

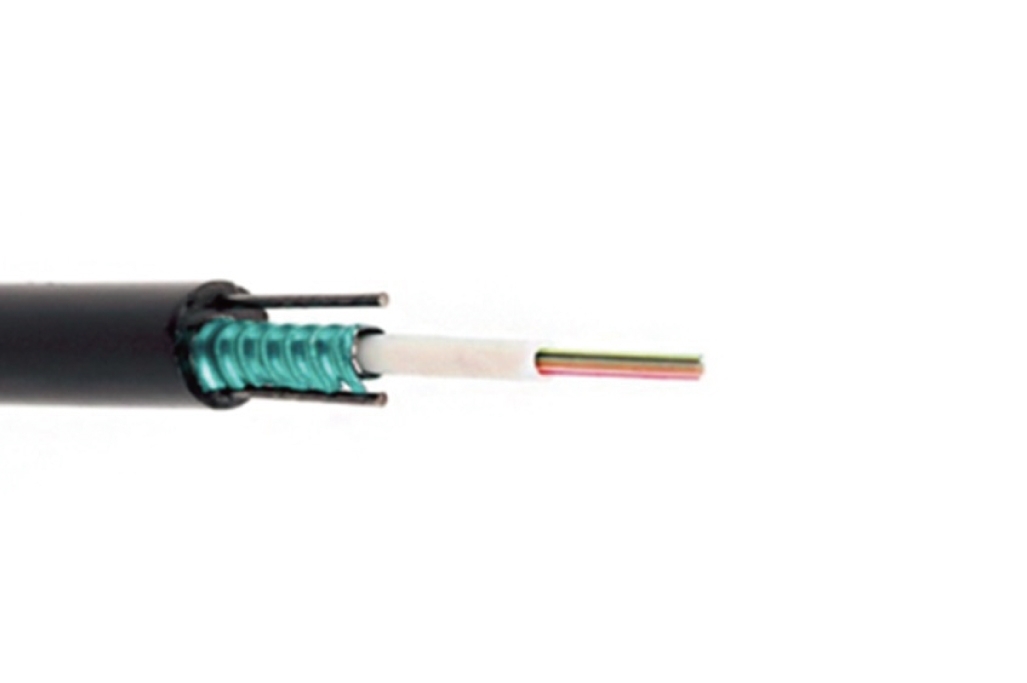

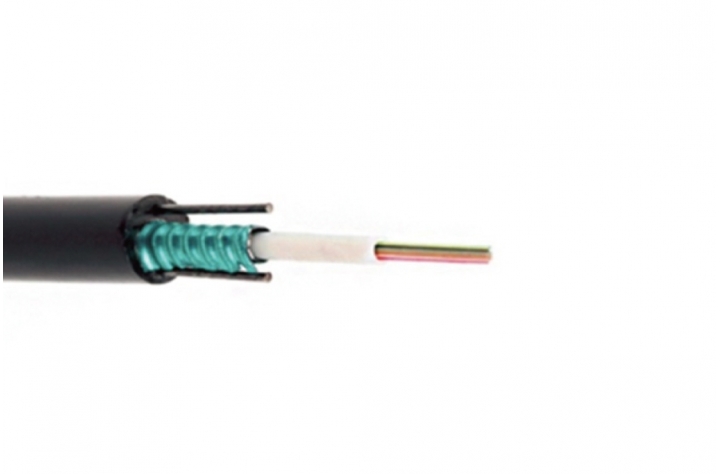

  • Available in Multimode fiber, from 2,4,6,8,12,16,24,48,96,108,120,132,144 &216 cores
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Crush resistance and flexibility
  • PSP enhancing moisture-proof
  • Two parallel steel wires ensure tensile strength
  • Cable complies with IEC60332-1-2:2015, IEC61034-2:2019 & IEC60754-1:2019
Specification


General

Fiber Type   50 / 125 μm
Attenuation (+20°C)

@850nm

@1300nm

≦2.3 dB/km

≦0.6 dB/km

Bandwidth

@850nm

@1300nm

≧3500 Mhz.km

≧500 Mhz.km

Numerical Aperture   0.200 ± 0.015NA
Non-Circularity of Core   ≦6%
Core / Cladding Dimension   50 /125 μm
Buffering Diameter   900 μm ± 50 μm
Fiber Coating Diameter   245 μm ± 7 μm
Tensile StrenthLong / Short Term (N)   1000 / 3000 N
Crush Resistance Long / Short Term (N /100mm)   100 / 300 (N/100mm)
Bending Radius Dynamics / Static (mm)   20 /10 D
Coating Strip Force   ≦13.3
Operation Temperature   -20°C~60°C


***EGYXTW MZ-OM4 Series is replaced by EGYXTW M4Z Series
