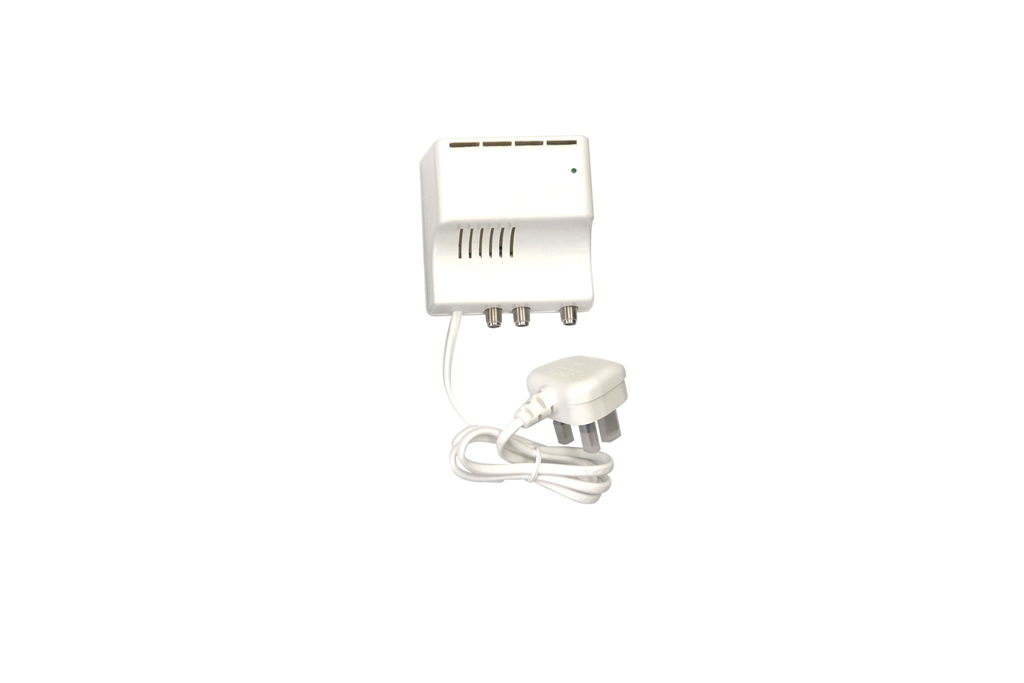

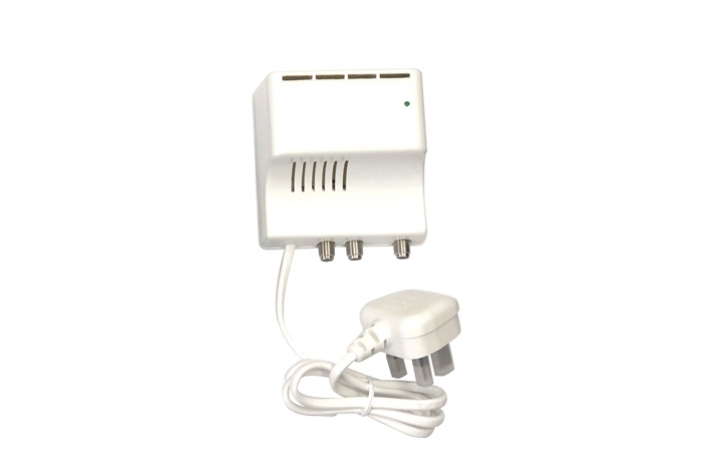

Indoor Amplifiers
Price: HK$0
download-icon Download Specification
  • Indoor Amplifiers 2 RF outputs, V+U (U-25dB, V-15dB)
  • Gain VHF 15dB
  • Gain UHF 25dB
  • Output: 100dBμV, F connector


Frequency 47~862MHz
Inputs  1
Output 2
UHF Input Gain (dB) 25
VHF Input Gain (dB) 15
FM Input Gain (dB) ---
Output Level (dBμV) 101
Connection “F” Connector
Impedance (Input & Output) 75Ω
Type Noise Factor (dB) VHF: <2.5, UHF:<3
Power Consumption (Max)  3.5W
Power Voltage 220V
