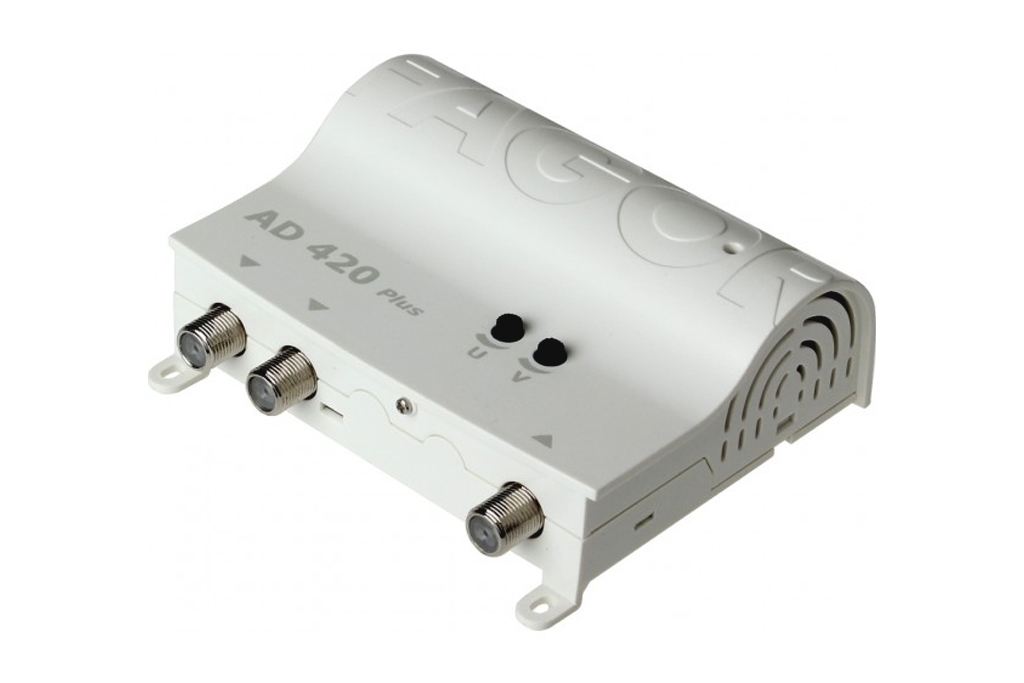

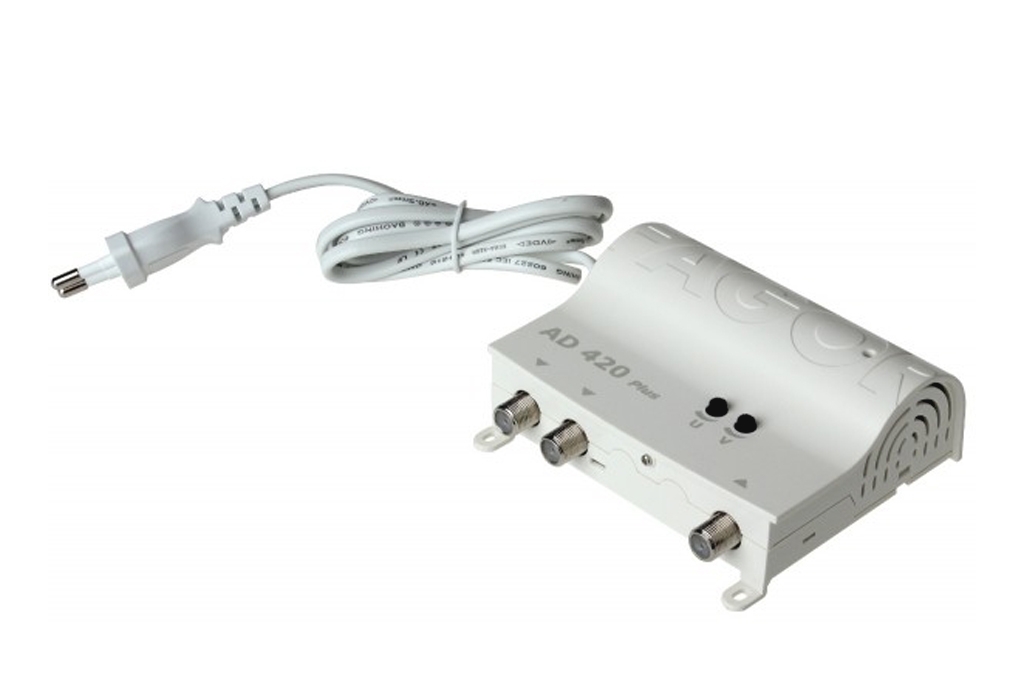

AD420+
Indoor Amplifer
Price: HK$0
download-icon Download Specification
Features
  • Circuit in metal box, with high degree of shielding
  • Switching power supply, which reduces consumption and
    inner temperatureand guarantees a long life product
  • Modern and reduce-sized design, that allows an easy installation
  • Independent gain regulation in UHF and VHF
Specification


General

Band Coverage VHF: 40~318 UHF: 470 ~ 862
Gain 20 dB 22 dB
Regulation 17 dB 15 dB
Noise Figure 7 dB 5 dB
Number of Output 2
Max. Output Level 100 dBµV
Input / Output Impedance 75 Ω
Packing Dimensions 107 x 48 x 138 mm (+30)
Weight 0.29 Kg
Supply Voltage 195 ~ 265 Vac
Power Consumption 1.5 W
Operating Temperature Range 0 ~50°C
