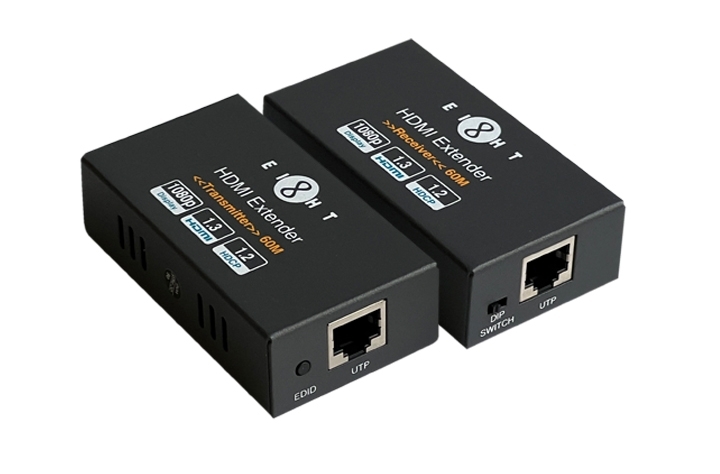

H1.3LAN60
HDMI 1.3 Extender (60m)
Price: HK$0
download-icon Download Specification
Features
  • H1.3LAN60 HDMI1.3, HDCP1.2 compliant
  • Built-in EDID to ensure HDMI signal transmission from source to display
  • Extends 1080P @60Hz signal up to 60m (Cat6 )
Specification


General

Standards HDMI 1.3; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution 1920x1080@60Hz, 3D
Connector HDMI-A
Impedance 100Ω
Interface RJ45
Transmission distance CAT6---60M
Power supply The power adapter: DC 5V
Power dissipation MAX 3W
Temperature Operating: -5°C ~ +70°C
Humidity Operating: 5% ~ 90%
Dimension 81x43x23mm
