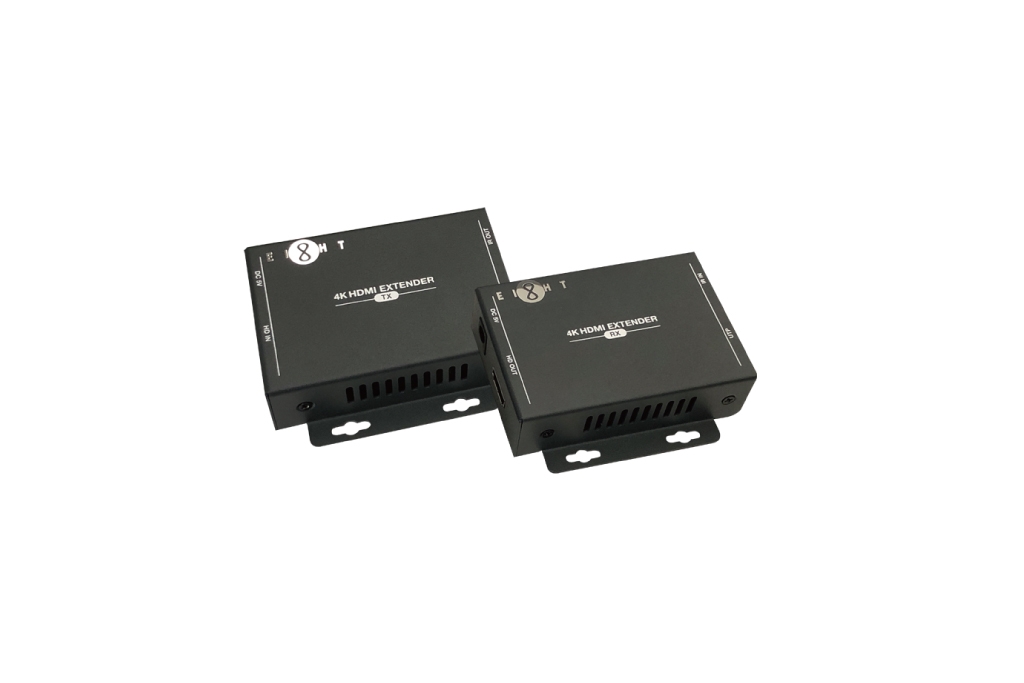

H1.4LAN100IR
HDMI 1.4 Extender (100m)
Price: HK$0
download-icon Download Specification
Features
  • HDMI1.4, HDCP1.4 compliant
  • Built-in EDID to ensure HDMI signal transmission from source to display
  • Extends 1080P @60Hz signal up to 100m
Specification


General

Standards HDMI 1.4,  HDCP 1.4
Maximum Pixel Clock 165MHz
Maximum Data Rate 6.75Gbps
Resolution  4K x 2K@30Hz
Impedance 100Ω
Audio Sample rate  32kHz, 44.1kHz and 48kHz
Audio Interface 3.5mm Earphone
Signal Direction Unidirectional
IR Frequency 38kHz
Ethernet Interface RJ45
Transmission Distance CAT 5e/6  Max: 100m
Power Supply Input  100VAC~240VAC, 50/60Hz
Power Supply Output DC 5V
Power Consumption  Max: 3W; 1000mA working current
Operation Temperature -15°C to +55°C
Relative Humility 5% to 90%
Dimension (LxWxH)  116 x 78 x 30mm
