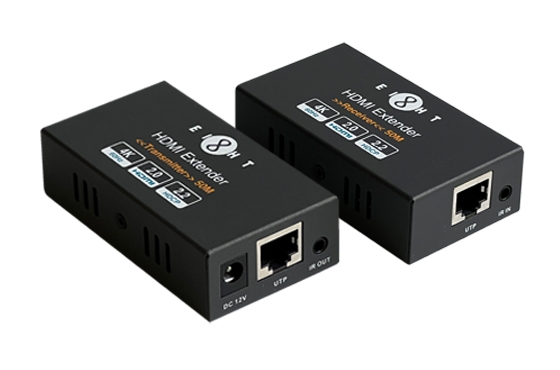

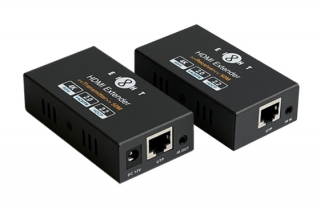

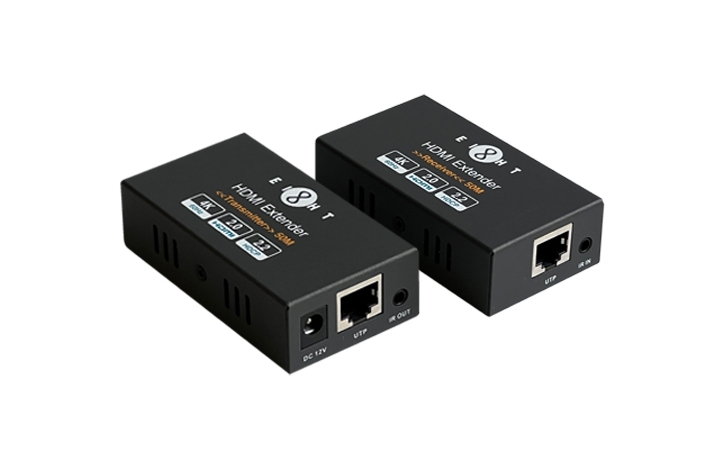

HDMI 2.0 Extender (50m)
Price: HK$0
download-icon Download Specification
  • Transmits HDMI video and audio signals up to 50M over a single CAT6 cable
  • Support video resolution up to 3840x2160@60Hz signal
  • Supports screen formats YUV444 and RGB444
  • Compliance with HDMI 2.0 and HDCP 2.2 standard


Standards HDMI 2.0; HDCP2.2
Resolution 3840x2160@60Hz
Maximum pixel clock 600MHz
Maximum data rate 18Gbps
Interface type 3.5mm stereo audio socket
Signal direction Return infrared signal from receiver
Carrier frequency 20K-60KHZ
Interface RJ45
Max length Cat6 : 50m
RJ45 type T568B
Power supply DC 12V
Power dissipation MAX 3.6W
Temperature Operating: -5°C ~ +70°C
Humidity Operating Operating: 5% ~ 90%
Dimension Dimension 82x46x24mm
