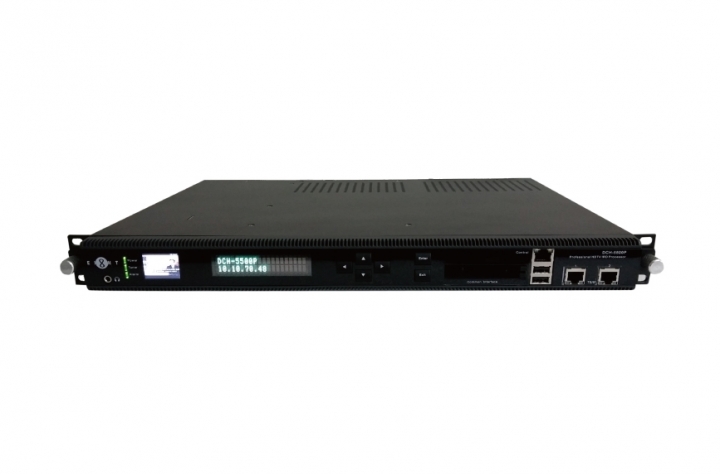

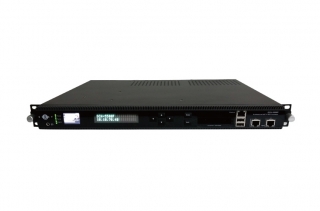

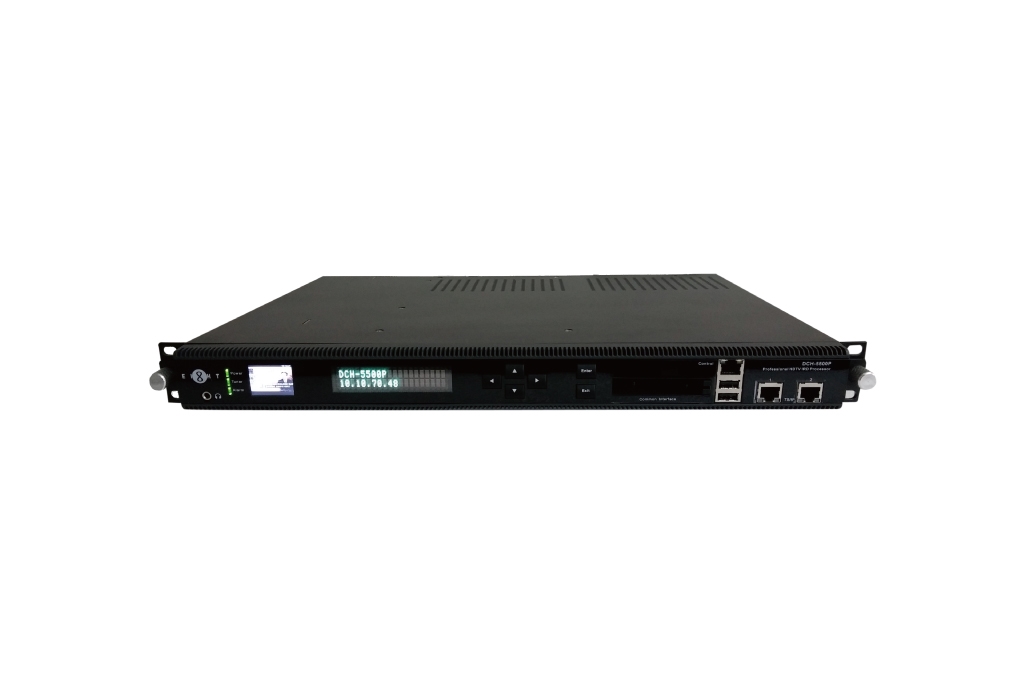

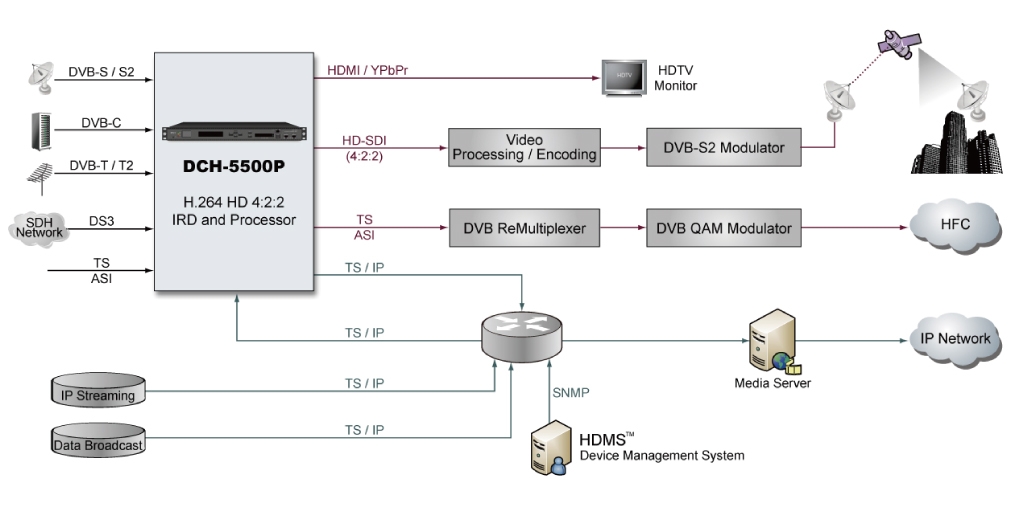

DCH-5500P
HDTV IRD / Processor
Price: HK$0
download-icon Download Specification
Features
  • Variety of input options DVB-T2/S2/S/C/T/DTMB/ATSC/ISDB-T, DS3/E3, TS/IP and ASI
  • Supports DVB-S2 Input Stream Identifier (ISI, optional) and DVB-T SFN MIP pass through
  • Redundant backup among Tuner, ASI and TS/IP with configurable priority
  • 4:2:0 and 4:2:2 (optional) of SD/HD MPEG-2 and MPEG-4 AVC/H.264 digital video decoding
  • Up to 8 Audio PIDs decode or pass through (compressed) in SDI output
  • Up to 6 Audio PIDs decode or pass through (compressed) in AES output
  • Multiple Analog and Digital Outputs, ASI, CVBS, HDMI, SD/HD-SDI, AES/EBU Audio, TS/IP
  • Built-in TS re-multiplexer receives from ASI, Tuner and TS/IP Inputs
  • 2 x DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption
  • Frame synchronizes the IRD to the external black and burst reference
  • Dynamic PMT detection and automatic updating
  • Supports VBI TELETEXT, EBU/DVB Subtitle, Closed Caption, and can be embedded in SDI
  • UDP/RTP, Unicast/Multicast, and double full duplex SPTS/MPTS over IP
  • Remote Control and Supervision by SNMP, HTTP WEB and Proprietary HDMS software
  • One alarm Relay with D-sub 9 male connector
  • On Site software update through IP and USB
  • RSSI, received Eb/No & BER monitoring
  • 1.5” TFT LCD on front panel for monitoring
  • Hot-swappable redundant power supply
Specification

DVB-S/S2 Tuner Input  (ISI Factory Optional)

Connector Type    1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
Input Frequency Range    950~2150MHz
Input Level    -25~-65dBm
Symbol Rate    2~45MBaud
Roll-off Factor    DVB-S QPSK: 0.35
    DVB-S2 8PSK: 0.35, 0.25, 0.2
FEC Code Rate    DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
    DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10
    DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
LNB Polarity Selection Voltage    0, 13V, 18V selectable
LNB Band Selection Tone    0/22KHz selectable
Satellite Selection Command    DiSEqC 1.0
ISI ID    1~255 user configurable


DVB-C Tuner Input

Connector Type    1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
Input Frequency Range    51~862MHz
Input Level     51~75dBμV
Symbol Rate    1~7MBaud (ITU J.83 Annex A)
Constellation    16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Bandwidth    6MHz, 7MHz, 8MHz
Input Return Loss   7dB (typ.)


DVB-T/T2 Tuner Input

Connector Type    1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
Input Frequency    104~862MHz (VHF/UHF)
Input Level    -20~-70dBm
Constellation    DVB-T: QPSK, 16QAM, 64QAM
    DVB-T2: QPSK, 16QAM, 64QAM, 256QAM ,
Bandwidth    6MHz, 7MHz, 8MHz
FFT Mode   DVB-T: 2K, 8K
    DVB-T2: 1K, 2K, 4K, 8K, 16K, 32K
Guarding Interval   DVB-T: 1/4, 1/8, 1/16, 1/32
    DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
FEC Code Rate    DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
    DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Input Return Loss    7dB (typ.)


DTMB Tuner Input

Connector Type    1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
Input Frequency Range    46.5~866MHz
Input Level    -87~-29dBm
Symbol Rate   7.56MBaud
Bandwidth    6MHz/7MHz/8MHz
Constellation    4QAM-NR,4QAM,16QAM,32QAM, 64QAM
Guard Interval    PN420, PN595, PN945
Roll-off Factor    0.05
Interleaving Depth    240,720
FEC Code Rate   0.4, 0.6, 0.8


ATSC Tuner Input

Connector Type    1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
Input Frequency Range    51~862MHz
Input Level    51~75dBμV
Symbol Rate    1~7MBaud (ITU J.83 Annex A)
Constellation    16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Bandwidth    6MHz, 7MHz, 8MHz
Input Return Loss   7dB (typ.)


ASI Input 1

Connector Type    1 x F type female 75Ω for Input, 1 x F type female 75Ω for loop through output
Input Frequency Range    54~864MHz
Input Level     -75~-7dBm(ATSC 8VSB)
Symbol Rate    10.762MBaud
Constellation    8VSB
Roll-off Factor    0.115
Bandwidth   6MHZ


DS3 Input 2 (Option)

Connector Type     1 x BNC female, 75Ω
Standard    DVB-ASI, EN50083-9
Input Bit Rate    ≦100Mb/s


DS3/E3 Input (Option)

Connector Type    1 x BNC female, 75Ω
Standard    DVB-ASI, EN50083-9
Input Bit Rate    100Mb/s
Connector Type   2 x BNC female, 75Ω, including loop through
Standard    Compliant with ITU-T G.703
Frame Structure   Frame Structure Compliant with ITU-T G.752 and ITU-T G.804
Bit Rate   DS3: 44.736Mb/s
    E3: 34.368Mb/s


TS over IP

Connector Type    2 x RJ-45, seperated 100/1000 Base-T for TS/IP
Effective Bit Rate    800Mb/s for 100/1000 Base-T, duplex for SPTS and MPTS
Protocol   UDP / RTP, Multicast / Unicast, IGMPv3, ARP


TS Processing

TS Input Management   Demux and Remux among Tuner / DS3(optional) / E3 (optional), ASI and TS/IP Inputs
TS Output Management    Demux and Remux for 2 independent ASI outputs
Service and PID Management    Remux, filtering and remapping
PSI/SI   PSI/SI table regeneration, NIT and SDT edition, LCN Edition and Re-generation
Descrambler    DVB Common Scrambling Algorithm (CSA)
BISS Mode    BISS-1, BISS-E
Common Interface    Double PCMCIA slots, compatible with major CA CAMs in the market


ASI Output

Connector Type    2 pairs of BNC female, 75Ω
Standard   DVB-ASI, EN50083-9
Output Bit Rate    200Mb/s
TS Processing   2 Independent TS Re-multiplexed from tuner, TS/IP and 2 ASI inputs


HDMI Output

Standard    1 x HDMI 1.3 interface (up to 1080i)
Video Resolution and Frame Rate   1080i x 30, 1080i x 29.97,1080 x 25,720p x 60,720p x 59.94, 720p x 50, 480p x 60, 576p x 50, 576i x 25, 480i x 29.97
Audio Embedded    1 x stereo


Video Decode

Video Profile/Level   MPEG-2(MP@ ML for SD, MP@HL for HD),
    Main Profile(MP) 4:2:0 8-bit,
    High Profile(HP) 4:2:2 8-bit
    MPEG-4/H.264 AVC Part 10 (MP@L3 for SD, HP@L4.1 for HD),
    High-422(Hi442P) 4:2:2 8/10-bit,
    High-10(Hi10P) 4:2:0 10-bit,
    High (HiP) 4:2:0 8-bit,
    Main (MP) 4:2:0 8-bit,
    Constrained Baseline (CBP) 4:2:0 8-bit,
    High 10 Intra Profile (AVC-I 50) 4:2:0 10-bit,
    High 4:2:2 Intra Profile (AVC-I 100) 4:2:2 8/10-bit


Audio Decode

Audio Format MPEG-1 Layer 2 a. 2 stereo pairs (Stereo, Dual Mono, Left, Right)
  Dolby Digital (AC3) a. 5.1 down-mix to 2.0 (Stereo, Dual Mono, Left, Right)
    b. Dolby Digital Audio Pass-through
  Dolby Digital Plus(AC3+) a. 5.1 down-mix to 2.0 (Stereo, Dual Mono, Left, Right)
    b. Dolby Digital Plus Audio Pass-through
  Dolby E a. 5.1 down-mix to 2.0 (Stereo, Dual Mono, Left, Right)
    b. Dolby E Audio Pass-through
  MPEG-2 AAC a. 5.1 down-mix to 2.0 (Stereo, Dual Mono, Left, Right)
    b. 2.0 (Stereo, Dual Mono)
  MPEG-4 HE-AAC v1/v2 a. 5.1 down-mix to 2.0 (Stereo, Dual Mono, Left, Right)
    b. 2.0 (Stereo, Dual Mono, Left, Right)


Digital Video Processing

Connector Type     2 x BNC female, 75Ω
SDI Video Resolution   1080p x 59.94,1080p x 50, 1080i x 30,1080i x 29.97,1080i x 25,720p x 60,720p x 59.94, 720p x 50, 720p x 29.97, 720p x 25, 576i x 25, 480i x 29.97
Video PID Bit Rate    ≦ 60Mb/s


HD/SD-SDI Output

Connector Type   1 pair of BNCs (mirrored) , female, 75Ω (1 pair of BNCs can be configured as ASI Output-3)
SD Standard    SMPTE 259M, 270 Mb/s (10bit)
HD Standard    SMPTE 292M, 1.485 Gbit/s (10bit)
Level    800mV p-p


Genlock

Connector Type    1 x BNC female, 75Ω
Input Signal    Analog SD (black & burst)


Digital Audio Processing

Connector Type   2 x D-sub 9 male with XLR adaptor cables and 6 x BNC female 75Ω
Number of Output    8 x audio PIDs are decoded or passed through
Nominal Output Level    1V p-p (with standard test stream)
Output Format    SDI (Embedded Audio), AES
Load Impedance    AES1~AES2: 2 x D-sub9, 110Ω (with XLR adaptor cables) AES3~AES8: 6 x BNC, 75Ω


Analog video Output

CVBS Connector    1 x BNC female 75Ω
CVBS Standard    NTSC, PAL, and SECAM
CVBS Resolution    576i x 25, 480i x 29.97
Nominal Output Level    1.0 Vp-p±5% (with standard test stream)
Frequency Response    <±1 dB, at 5.5 MHz  for PAL/SECAM, 4.2MHz for NTSC
Chroma-Luma Delay    <±30 ns
Field Time Distortion    <2%
Line Time Distortion     <1%
Short Time Distortion    <2%
Differential Gain    <3%
Differential Phase    <2°
Signal to Noise Ratio   >55dB (luminance weighted)


Analog Audio Output

Connector Type   2 x D-sub 9 male, with XLR adaptor cable
Output Impedance    600Ω (balanced)
Output Mode    Left, Right, Dual Mono, Stereo
Number of Output   2 pairs of stereo audio outputs (2 Audio PIDs or 4 channels are decoded)
Cross Talk Among Channels    >70dB
THD    <0.3% @ 400Hz, 1KHz test tone
Frequency Response   ±0.5dB over 20Hz ~ 18KHz
Output Level   0dBm in 600Ω (0dBu), adjustable range±I0dB


Ancillary Data Processing

Subtitle    DVB, EBU
VBI    Teletext, WSS
Closed Caption     EIA 608, EIA 708, EIA 608-to-708


Redundancy

Redundancy Port    Among Tuner, ASI input and
Switching Condition    TS/IP inputSwitching Condition TS Sync Loss
Switching Mode    Main, Spare


Alarm

Connector Type   2 x D-sub 9 male
Switching Condition   User Defined


Control & Monitoring

Connector Type    1 x RJ-45, 10/100 Base-T, for equipment IP Control
Remote Control   SNMP2.0 , HTTP (Web GUI ) , Proprietary HDMS (Headend Device Management System)
Local Control    LCD display and Front control 6-key keypad
Monitoring    1.5'' TFT LCD monitor
Serial Port   1 x RS-232 D-sub female, for debug use only
Equipment Upgrade    Embedded FTP loader ,Telnet and USB


General

Dimension    1U 19" Full-rack size
Power Supply    AC 90V~250V, 50/60Hz
Power Consumption    24W (exclusive of LNB power)
Operating temperature     0~45°C
Storage temperature     -10~60°C
Operating Humidity    10~90%, non-condensed


Certification

EMC    EN 55024:1998+A1:2001+A2:2003,
    EN 55022:2006+A1:2007, EN 61000-3-2:2006,
    EN 61000-3-3:2008
FCC   Part 15 Class B
LVD   EN 60950-1:2006 + A11:2009
