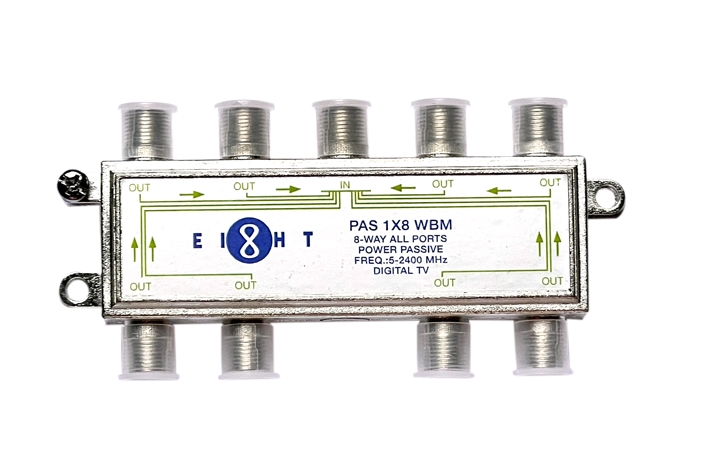

PAS 1x8 WBM
Wide Band Splitter
Price: HK$0
download-icon Download Specification
Features
  • All ports power pass
  • Nickel plated zinc alloy die-cast
  • Suitable for RF (5-1000MHz)
  • IF (900-2150MHz) distribution
  • Suitable for analog and digital signals
  • All Port F-(f) connector, 75Ω
  • Power pass max 1A, 30V
  • Low insertion loss, high return loss and isolation for CATV, Satellite TV & MMDS
  • Screening factor 55dB@2000MHz
Specification


General

Splitters Way 8 Ways
VSWR In 5 - 40 MHz 1.6
  40 - 1000 MHz 1.9
  1000 - 2050 MHz 2.1
  2050 - 2400 MHz 2.1
VSWR Out 5 - 40 MHz 2.5
  40 - 1000 MHz 1.4
  1000 - 2050 MHz 3.5
  2050 - 2400 MHz 3.9
Insertion Loss 5 - 40 MHz 15 dB
  40 - 1000 MHz 14 dB
  1000 - 2050 MHz 16.5 dB
  2050 - 2400 MHz 21 dB
Mutual Isolation Out - Out 5 - 40 MHz 19 dB
  40 - 1000 MHz 20 dB
  1000 - 2050 MHz 16 dB
  2050 - 2400 MHz 16 dB
