PAS TAP2-20

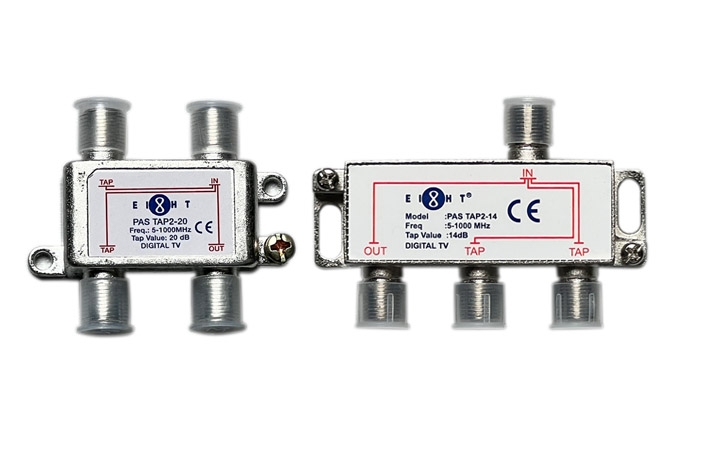

2 Way Indoor Tap
Price: HK$0
download-icon Download Specification
Features
  • Zinc die cast housing, nickel-plated
  • All ports F-(f) connector , 75Ω
  • Grounding terminal provided
  • Two pieces of screws attached
  • Low insertion loss , high return loss and isolation
  • Particularly designed for easy and convenient installation
  • Screening factor:

30~300MHz ≥ 75dB

300~470MHz ≥ 75dB

470~1000MHz ≥ 65dB

Specification

General

Insertion Loss(dB) IN-OUT 5 - 40  MHz ≤ 1.2
  40 - 470 MHz ≤ 1.5
  470 - 1000 MHz ≤ 2.0
Tap Loss(dB) IN-TAP 5 - 40 MHz 20 ± 1.5
  40 - 1000 MHz 20 ± 1.5
Reverse Isolation(dB) OUT-TAP 5 - 40 MHz ≥ 30
  40 - 470 MHz ≥ 28
  470 - 1000 MHz ≥ 25
Mutual Isolation(dB) TAP-TA 5 - 40 MHz ≥ 36
  40 - 470 MHz ≥ 32
  470 - 1000 MHz ≥ 30
Return Loss(dB) IN、OUT、TAP 5 - 40 MHz ≥ 18
  40 - 470 MHz ≥ 20
  470 - 1000 MHz ≥ 16
Dimensions (L x Hx D)   57 x 49 x 16 mm
