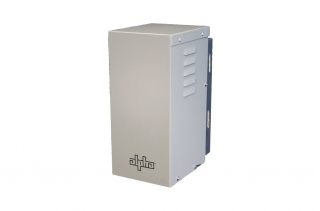

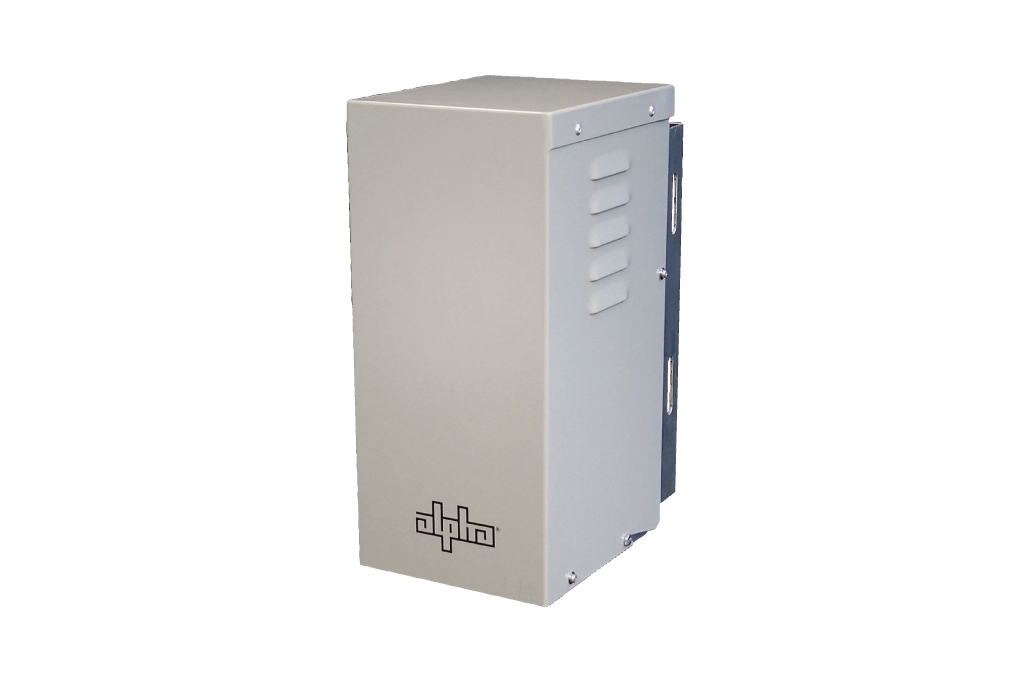

APX2 614 G-220
Non Standby Power Supply
Price: HK$0
download-icon Download Specification
Features
  • Indoor and outdoor applications
  • Complete line conditioning provides regulated, clean, reliable power
  • Current limited output and short circuit protection
  • Universal bracket (pole or wall mount)
  • Output current test points
  • Input line fuse
  • Input line switch
  • Visual output “ON” indicator
  • Output coaxial terminal
  • Ground connection
  • Cable gland (Input wiring)
  • Other Alpha product are also available
Specification

General

Input Voltage (VAC)   220
Input Frequency (Hz)   60
Output Voltage (VAC)   63
Output Current (A)   14
Max. Output Power (VA)   900
Input Fuse Protection (breaker)   8A
Weight (kg/lbs)   15.88 / 35
Input Power factor > 0.90 at full load
  Voltage: 50Hz 220VA -20% ~ 25%
  Voltage: 60Hz 110 / 220VAC -20% ~ 25%
  Frequency ± 3%
Output Waveform Quasi-square wave
  Voltage regulation  ± 5%
  Eciency 90% or better
Dimensions (WxHxD)   171.5 x 381 x 241.5 mm
Finish   Durable powder coat
Material   Aluminum
Operating Temperature   -40°C ~ 55°C
Safety   CCC, CB, SARFT
