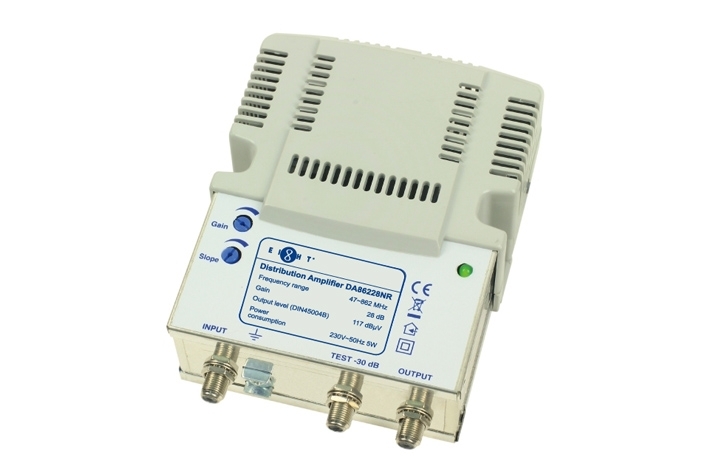

DA86228NR
Distribution Amplifier
Price: HK$0
download-icon Download Specification
Features
  • 220V main power
  • Push-pull technology
  • Built-in adjustable attenuator & equalizer
  • Built-in test point
  • Connector F type
  • Metal-plastic housing for indoor mounting
  • Output test point and screw terminal for equipotential bonding
  • Made in Europe
Specification

General

Frequency Range (forward path) 47 ~ 862 MHz
Gain 28 dB
Frequency Response ± 0.5 dB
Gain Adjustment 20dB
Slope Adjustment, Typical 18dB
Maximal Output Level IMD3 =60 dB (DIN45004B) 117 dBμV
Output Level CTB, CSO (EN50083-3) 101 dBμV
Input and Output Return Loss* > 14 dB
Noise Figure < 6 dB
Input / Output Interface F, 75ohm
Test Point Attenuation - 30 dB
Power Consumption 230V / 50 Hz / 5W
Operating Temperature Range -20°C ~ 50°C
Dimensions/ Weight (packed) 107 x 148 x 53 mm / 0.6 kg


*When f ≧ 40MHz, return Loss ≧ 14dB (40MHz) -1.5dB / octave, but not less than10dB
