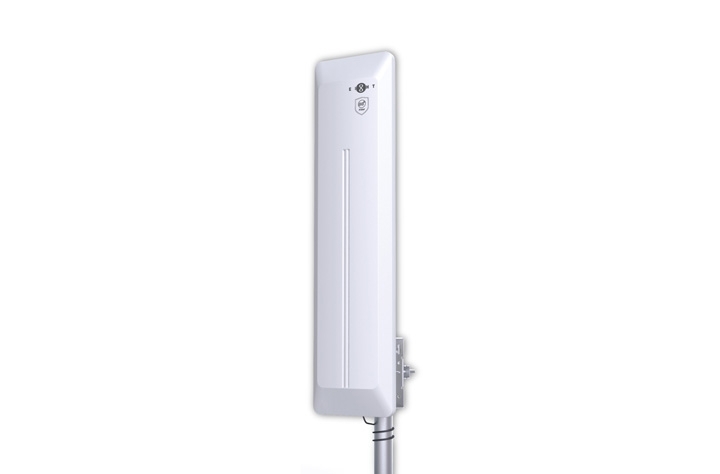

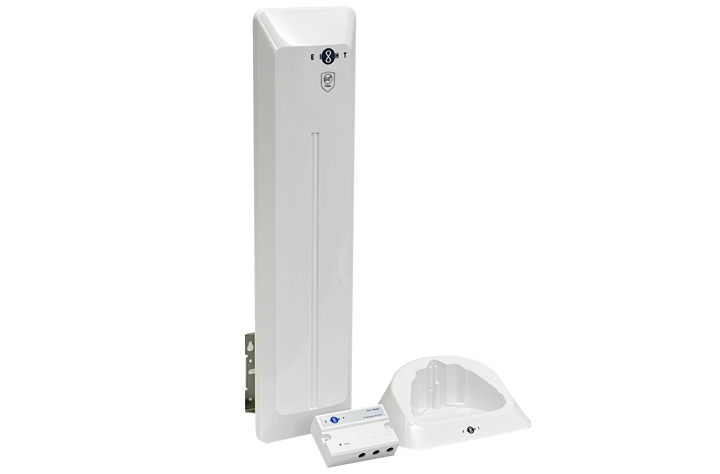

Outdoor Digital TV Antenna
Price: HK$0
download-icon Download Specification
  • Frequency: 470-694 MHz
  • Anti-UV coating and waterproof design

  • Weather resistant specifically designed our outdoor use

  • Excellent reception for Digital Terrestrial TV Signal

  • Uses amplification technique, with built-in low noise and high gain booster for best picture and sound reception

  • Lightweight, compact size and easy to install

  • Receives both Horizontal signal and Vertical signal

  • Can be wall mounted, mast mounted or balcony mounted

  • Dimension:
    67x25x19cm (with Antenna Base)
    66x16.5x13cm (without Antenna Base)



Frequency Range UHF: 470~694 MHz
Output Level 108 dB
Gain Control (dB) 28 dB
3dB Beam width ± 42º
Max. Noise Figure 2 dB
Polarization Horizontal & Vertical
Connector F connector female
Impedance 75Ω
Input Voltage AC220~240V
Working Voltage DC12V / 100mA
Dimension (with Antenna Base) 67x25x19cm
Dimension (without Antenna Base) 66x16.5x13cm
