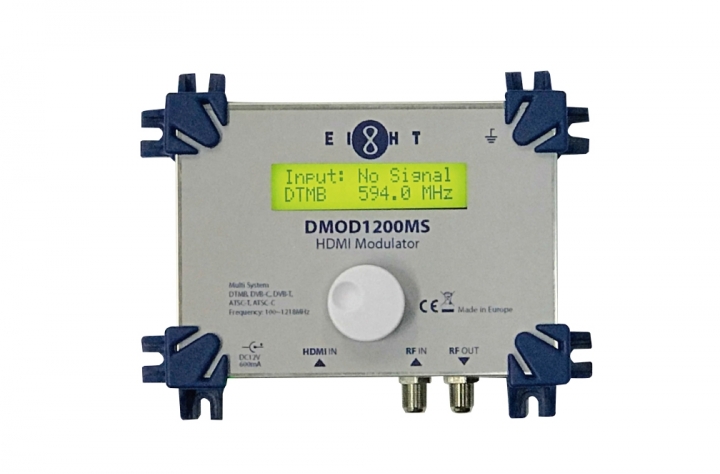

DMOD1200MS
HDMI modulator
Price: HK$0
download-icon Download Specification
Features
  • HDMI to HDTV modulator (upto 1080p)
  • Supports Multi digital TV standard: DTMB, DVB-T, DVB-C ATSC-T, ATSC-C
  • RF output supports upto 1218MHz
  • Easy to use menu structure, in combination with rotary/ push button
  • Supports LCN insertion
  • Supports Channel name edit
  • Small compact size that can place anywhere
Specification

HDMI Input

Video Resolution 576i up to 1080p
Video Encoding H264/AVC
Audio Encoding MPEG1 Layer II / AAC
Connector Type HDMI Type A


RF In

Frequency (MHz) 5 - 1218
Loss to RF Output (dB) 2
Input Interface F, 75Ω


RF Out

Modulated Channel Frequency (MHz)  100-1218
Output Level (dBμV) 59-99 (adjustable)
MER (dB) Typ. 38
Output Interface F, 75Ω


Output Settings

DVB-T Output Bitrate (Mbps) 2-23
  Channel Bandwidth (MHz) 6,7 or 8
  Constellation COFDM  (QPSK/ 16QAM/ 64QAM)
  Other Settings Code rateGuard Interval 2K-8K

DVB-C Output Bitrate (Mbps) 2-23
  Channel Bandwidth (MHz) 2 to 81
  Constellation 6QAM, 32QAM, 64QAM, 128QAM, 256QAM

ATSC-T Output Bitrate (Mbps) 2-15
  Channel Bandwidth (MHz) 6
  Constellation 8VSB

ATSC-C Output Bitrate (Mbps) 2-23
  Channel Bandwidth (MHz) 6
  Constellation 64QAM, 256QAM

DTMB Output Bitrate (Mbps) 2-23
  Channel Bandwidth (MHz) 8
  Constellation QPSK, 16QAM, 32QAM, 64QAM
  Other Settings Interleave Code Rate Sync frame


Other

Basic Configuration   Country / Output Type / Output Frequency / Output Level / LCN / Channel Name
Advanced Configuration   RF / Video & Audio / SID / PMT, VPID, APID / NIT, ONID / PDS / TS ID
Power   Input Voltage: 12 VDC / Consumption: 5 W Typ. (6 W max.) / Jack Ø 2.1 mm
Dimensions   155 x 120 x 60 mm
Weight   0.6 kg
Accessories   12 V power adapter
