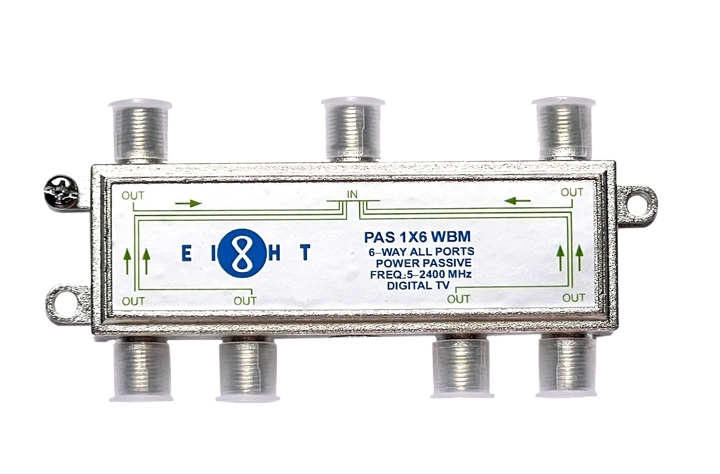

PAS 1x6 WBM
Wide Band Splitter
Price: HK$0
download-icon Download Specification
Features
  • All ports power pass
  • Nickel plated zinc alloy die-cast
  • Suitable for RF (5-1000MHz)
  • IF (900-2150MHz) distribution
  • Suitable for analog and digital signals
  • All Port F-(f) connector, 75Ω
  • Power pass max 1A, 30V
  • Low insertion loss, high return loss and isolation for CATV, Satellite TV & MMDS
  • Screening factor 55dB@2000MHz
Specification


General

Splitters Way 6 Ways
VSWR In 5 - 40 MHz 1.5
  40 - 1000 MHz 1.6
  1000 - 2050 MHz 1.6
  2050 - 2400 MHz 1.8
VSWR Out 5 - 40 MHz 1.5
  40 - 1000 MHz 1.6
  1000 - 2050 MHz 1.6
  2050 - 2400 MHz 1.8
Insertion Loss 5 - 40 MHz 13 dB
  40 - 1000 MHz 12 dB
  1000 - 2050 MHz 15.5 dB
  2050 - 2400 MHz 18.5 dB
Mutual Isolation Out - Out 5 - 40 MHz 20 dB
  40 - 1000 MHz 20 dB
  1000 - 2050 MHz 20 dB
  2050 - 2400 MHz 16 dB
