ST-7

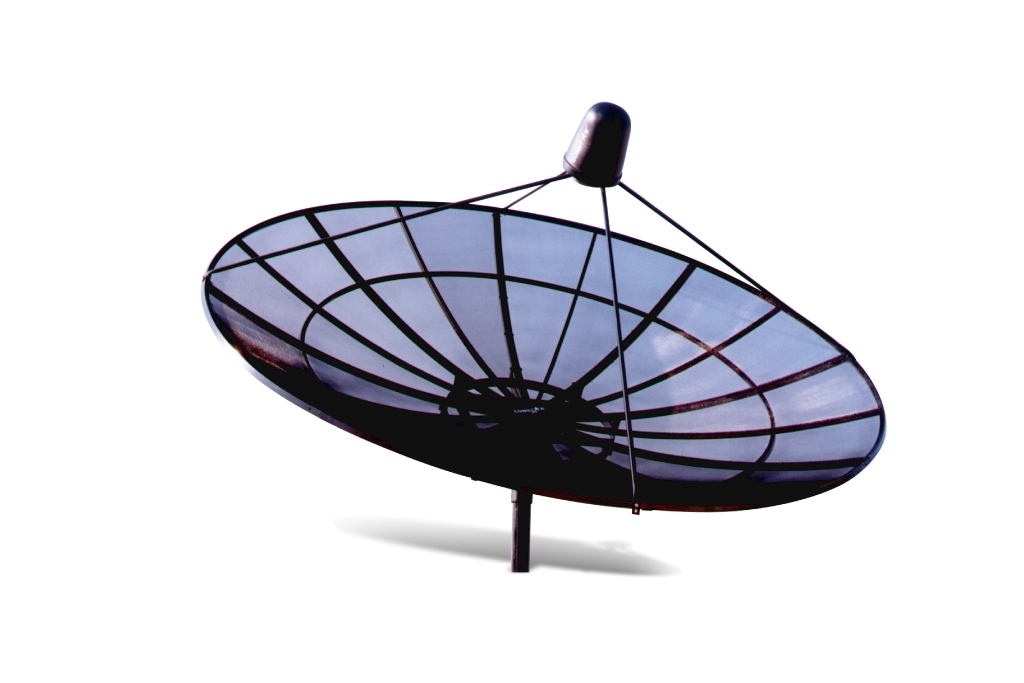

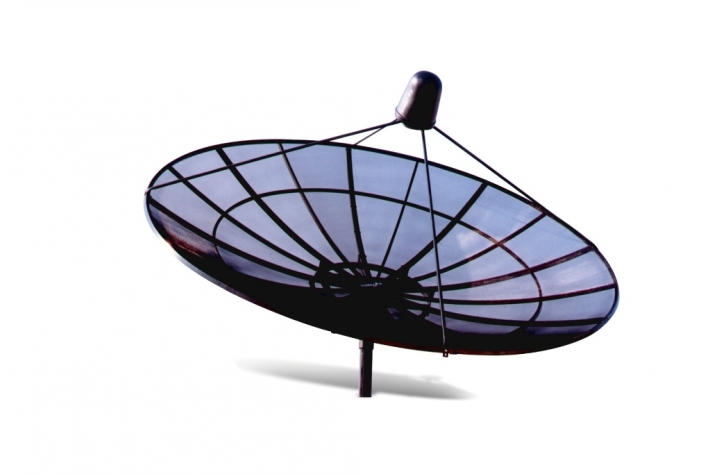

Satellite Mesh Antenna
Price: HK$0
download-icon Download Specification
Features
  • Pro-form aluminum reflector
  • C/Ku mesh
  • Powder-coat finish
  • Wind-resistant structure
  • 8 Point Pro-from 32” mount
  • 4 Point Pro-form 24” mount
  • Quad feed support
  • Ideal for TVRO / SMATV application
Specification


General

Type     4 Section
Operation Frequency 1 ~ 13 GHz
Diameter     2.3 m (7.5 ft)
Reflective Material Aluminum
Mesh Thickness 0.7 ± 0.05 mm
Mounting     Polar mount
F/ D Ratio     0.3766
Pole Size (O.D) 76 mm (3”)
Focal Length 866.25 mm (36”)
Gain at 4.2 (GHz) 37.08 dBi
Gain at 12.2 (GHz) 46.5 dBi
Frist Side Lobe ≤-14
Feed     Prime focus
      Quad feed
      Support
EL Travel Range 5° ~ 90°
AZ Travel Range 0° ~ 360°
Withstand Wind  (Operation)  8 degree wind 72 km / h
                         (Able to receive) 10 degree wind 100.8 km / h
                          (Survival upright) 12 degree wind 133.2 km / h
Net Weight 34.3 kg
