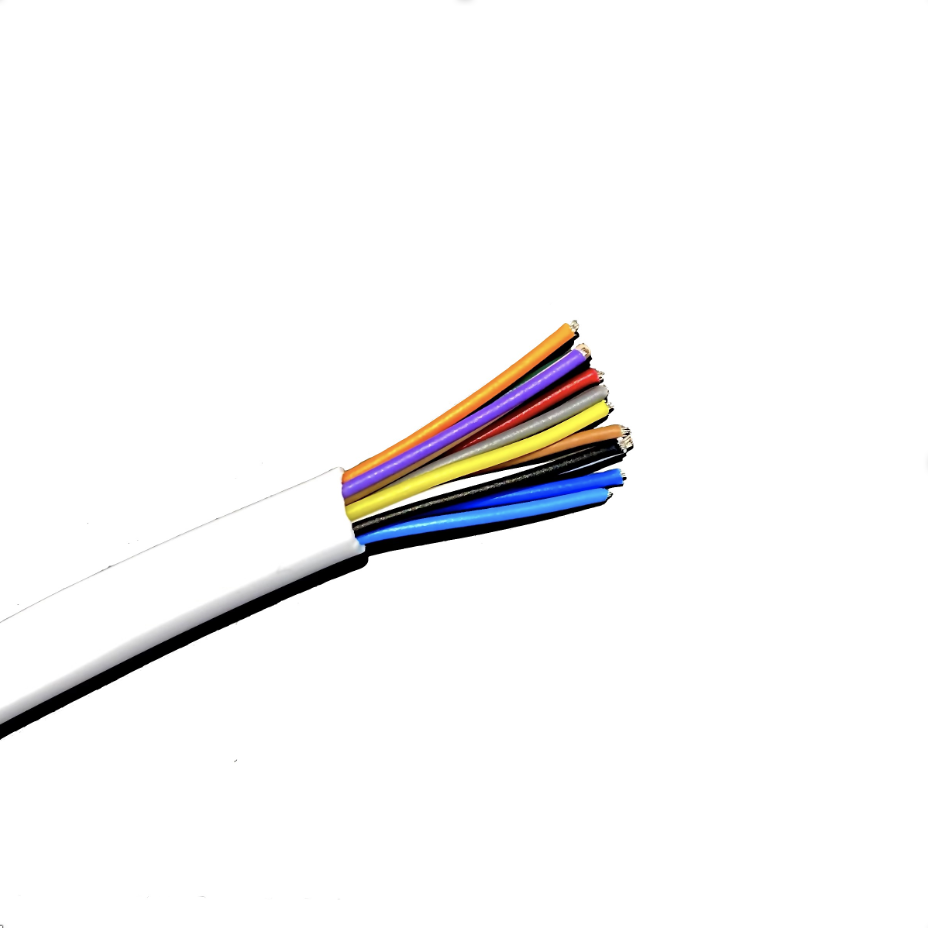

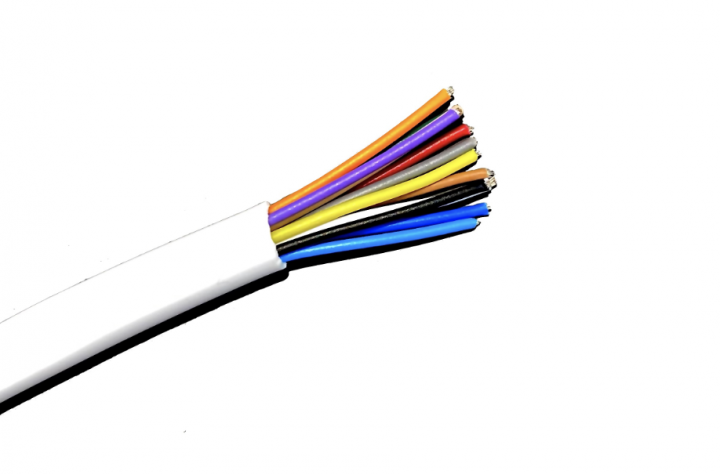

70212

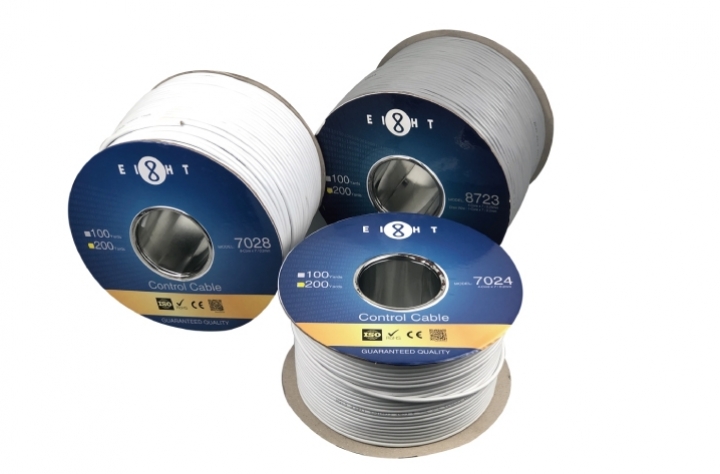

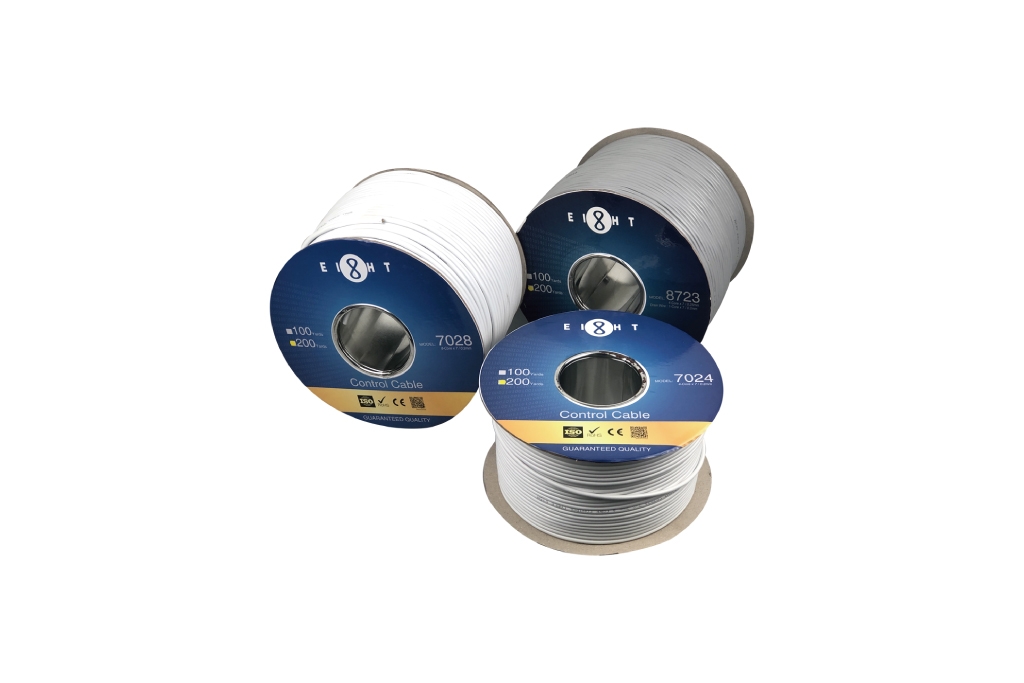

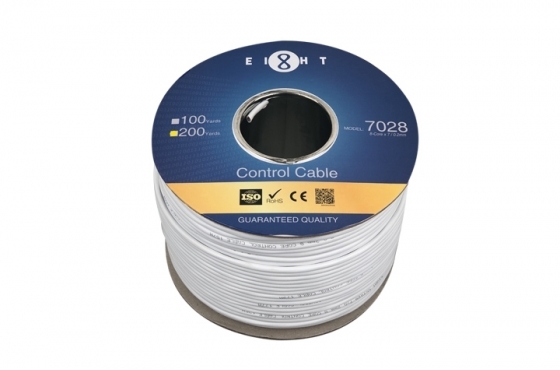

Control Cable
Length:
Price: HK$0
download-icon Download Specification
Features
  • Power limited controls
  • Single line telephone
  • Security systems
  • LSZH Jacket option available
Specification


General

Conductor Material TC
  Diameter 7/0.2mm
  Max Resistance(20°C) 79Ω/km
  Construction 12x7/0.2mm
Insulation Insulation  PVC
  Insulation Thickness 0.25mm±0.03mm
  Insulation Diameter 1.1mm±0.03mm
  Insulation Color White, Orange, Black, Red, Green, Brown, Yellow, Blue, Grey, Light blue, Purple, Light Brown
Jacket Jacket Material PVC
  Jacket Color White
  Jacket Thickness 0.6mm±0.1mm
  Jacket O.D 5.8 mm±0.1mm
Shield AL Foil ---
  Drain Wire ---
Operation Temperature -15°C to +65°C
Working voltage 300/300V

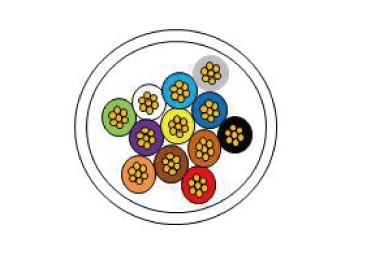

Construction

Self Photos / Files - 70212Construction
