C5EFSG_LSZH

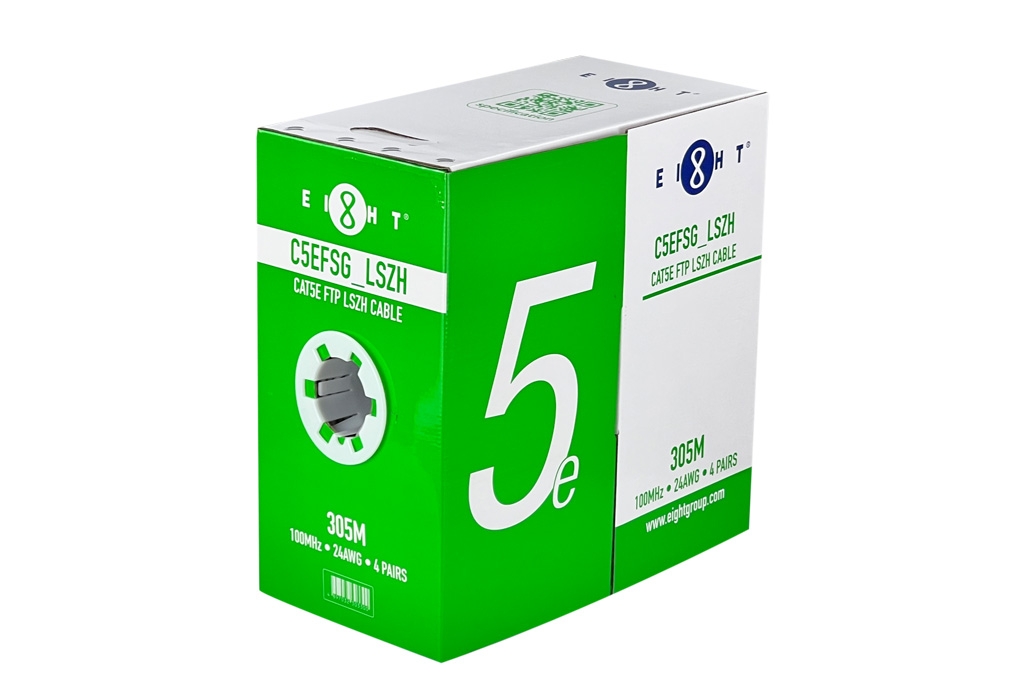

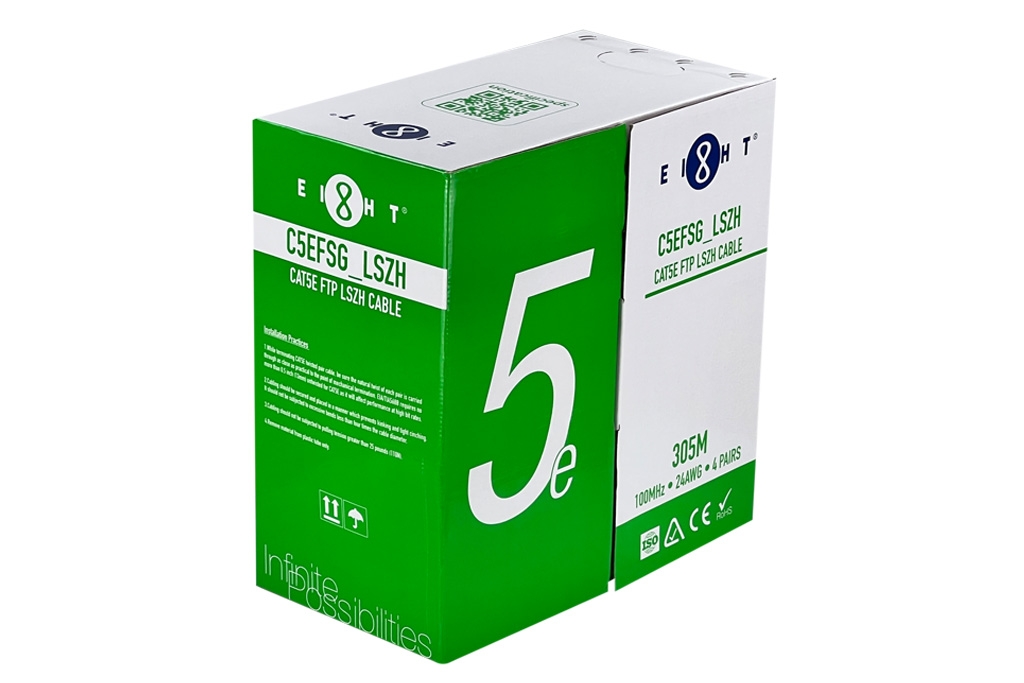

CAT5e Cable F/UTP Shielded LSZH
Length:
Price: HK$0
download-icon Download Specification
Features
  • Conductor: 24 AWG, Solid-Bare Copper
  • Outer Jacket: LSZH (Complies RoHS)
  • Standard: ISO/IEC11801, TIA-568-C.2
  • ISO9001 Certified Manufacturing Plant
Specification

Standard

Standard

ISO/IEC11801, TIA-568-C.2

ISO9001 Certified Manufacturing Plant



General

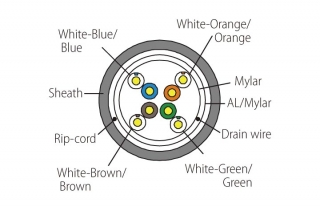

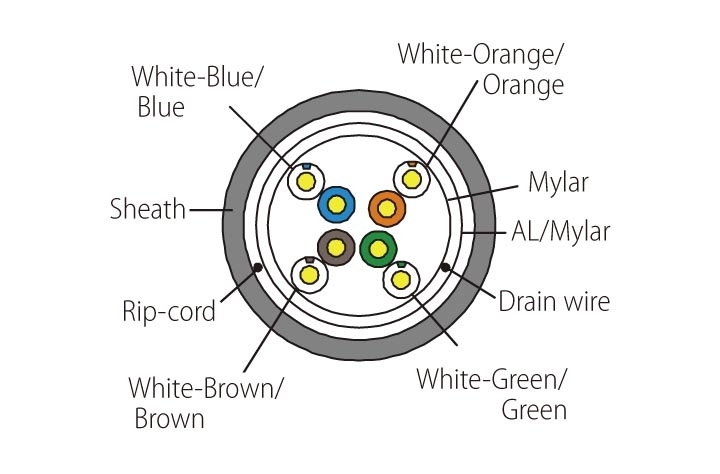

Construction   F/UTP
Conductor Material Solid-Bare Copper
  Nom.O.D. 0.500 ± 0.005 mm
Insulation Material & Diameter  HDPE (1.00 ± 0.05 mm)
Screening Material   Mylar+AL/Mylar
Sheath Thickness 0.55 ± 0.05 mm
  External O.D. 6.2 ± 0.4 mm
  Material  LSZH (Complies RoHS)
Rip-cord   Yes
Drain Wire
  Yes
Sheath Physical Properties (Before Aging) Tensile Strength  ≥ 10.0 Mpa
  Elongation ≥ 125 %
  Aging Period 100 °C x 24h x 7d
Sheath Physical Properties (After Aging) Tensile Strength  ≥ 8 Mpa
  Elongation ≥ 100 %
  Cold Bend -20 ± 2 °C x 4h, 8 x Cable O.D., No visible cracks
Electrical Characteristics (20°C) Impedance 1.0-100.0MHz:100 Ω ± 15 Ω
  Delay Skew 1.0-100.0MHz:≤ 45 ns / 100 m
  Unbalanced-to-ground capacitance Max. 330 pf / 100 m
  DC Resistance Max. 9.5 Ω / 100 m
  DC Conductor Resistance Unbalance Max. 5.0 %


Electric Performance

Frequency

(MHz)

Return Loss

(≥dB)

Attenuation (20°C)

(≤dB)

NEXT

(≥dB)

PHASE DELAY

(≤ns)

PSNEXT

(≥dB)

ELFEXT

(≥dB)

PSELFEXT

(≥dB)



1 20 --- 65.3 570 62.3 63.8 60.8
4 23 4.1 56.3 552 53.3 51.8 48.8
8 24.5 5.8 51.8 546.73 48.8 45.7 42.7
10 25 6.5 50.3 545.38 47.3 43.8 40.8
16 25 8.2 47.2 543 44.4 39.7 36.7
20 25 9.3 45.8 542.05 42.8 37.8 34.8
25 24.3 10.4 44.3 541.2 41.3 35.8 32.8
31.25 23.6 11.7 42.9 540.44 39.9 33.9 30.9
62.5 21.5 17 38.4 538.55 35.4 27.9 24.9
100 20.1 22 35.3 537.6 32.3 23.8 20.8
