Features
- Conductor: 23 AWG, Solid-Bare Copper
- Armoured Cable
- Outer Jacket: LSZH (Complies RoHS)
- Standard: IEC 60332-1-2, ANSI/TIA-568.2-D
- ISO9001 Certified Manufacturing Plant
Specification
Standard
| Standard |
IEC 60332-1-2, ANSI/TIA-568.2-D ISO9001 Certified Manufacturing Plant |

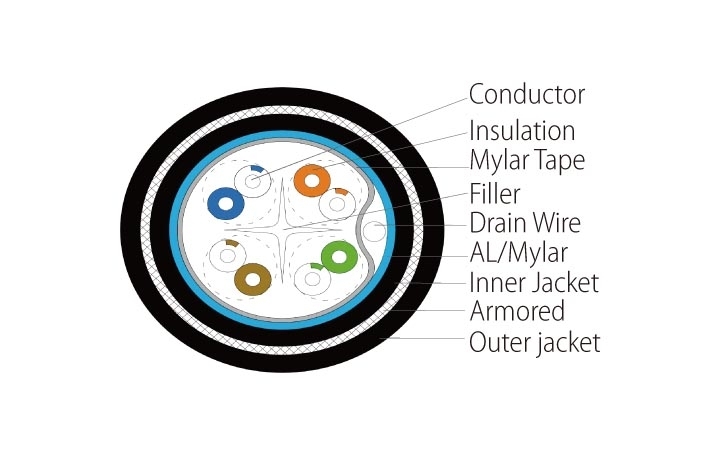

General
| Construction | F/UTP | |
| Conductor | Material & O.D. | 0.565mm Solid-Bare Copper |
| Insulation | Material | PE |
| O.D. | 1.18±0.10mm | |
| Filler | PE cross separator | |
| Tape | Mylar tape | |
| Drain wire | Tinned copper wire | |
| Overall screen | AL/Mylar | |
| Rip-cord | Yes | |
| Inner jacket | Material | LSZH |
| O.D. | 8.00±0.50mm | |
| Armored | Material & O.D. | 0.90 mm galvanized steel wire Spiral |
| Coverage | ≥90% | |
| Outer Jacket | Material | LSZH |
| O.D. | 12.00±0.60mm | |
| Electrical Characteristics (20°C) | Conductor DC resistance | ≤95ohm/km |
| Resistance unbalance | ≤5% | |
| Insulation Resistance | ≥5000MΩ·km | |
| Delay skew | ≤25 ns/100m | |
| Characteristic impedance | 100±15ohm @100MHz | |
| Dielectric strength | DC1KV for 1min.no breakdown | |
| Transmission performance | ANSI/TIA-568.2-D | |
| Other Characteristics | Operating temperature | -20 ~ +75°C |
| Installation temperature | 0 ~ +60°C | |
| Min. Bending radius | Fixed: 12D (Cable diameter) | |

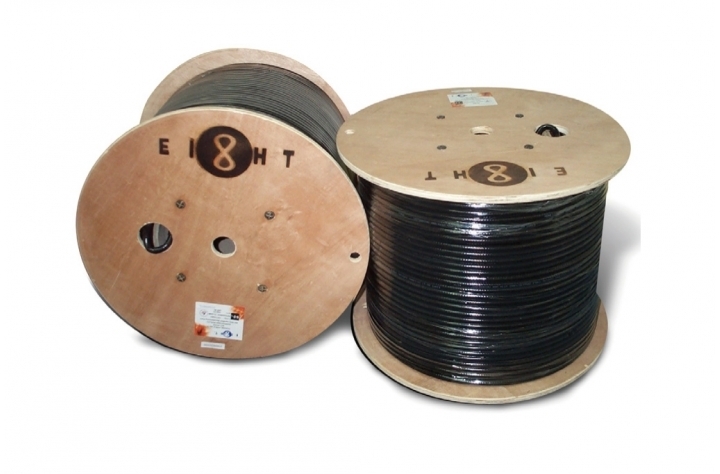

| Length | 305M |
Electric Performance
|
Frequency (MHz) |
Attenuation (≤dB) |
Return Loss (≥dB) |
NEXT (≥dB) |
PSNEXT (≥dB) |
ACRF (≥dB) |
PSACRF (≥dB) |
| 1 | 3.0 | 19.0 | 65.0 | 62.0 | 63.3 | 60.3 |
| 4 | 4.2 | 19.0 | 63.0 | 60.5 | 51.2 | 48.2 |
| 8 | 5.8 | 19.0 | 58.2 | 55.6 | 45.2 | 42.2 |
| 10 | 6.5 | 19.0 | 56.6 | 54.0 | 43.3 | 10.3 |
| 16 | 8.2 | 18.0 | 53.2 | 50.6 | 39.2 | 36.2 |
| 20 | 9.2 | 17.5 | 51.6 | 49.0 | 37.2 | 34.0 |
| 25 | 10.2 | 17.0 | 50.0 | 47.3 | 35.3 | 32.3 |
| 31 | 11.5 | 16.5 | 48.4 | 45.7 | 33.4 | 30.4 |
| 63 | 16.4 | 14.0 | 43.4 | 40.6 | 27.3 | 24.3 |
| 100 | 20.9 | 12.0 | 39.9 | 37.1 | 23.3 | 20.3 |
| 200 | 30.1 | 9.0 | 34.8 | 31.9 | 17.2 | 14.2 |
| 250 | 33.9 | 8.0 | 33.1 | 30.2 | 15.3 | 12.3 |
| 300 | 37.4 | 7.2 | 31.7 | 28.8 | 13.7 | 10.7 |
| 400 | 43.7 | 6.0 | 28.7 | 25.8 | 11.2 | 8.2 |
| 500 | 49.3 | 6.0 | 26.1 | 23.2 | 9.3 | 6.3 |
***Category 6A channel test extreme length 90m.
***C6AUSG_A_LSZH is replaced by C6AFU_A_LSZH
