8723

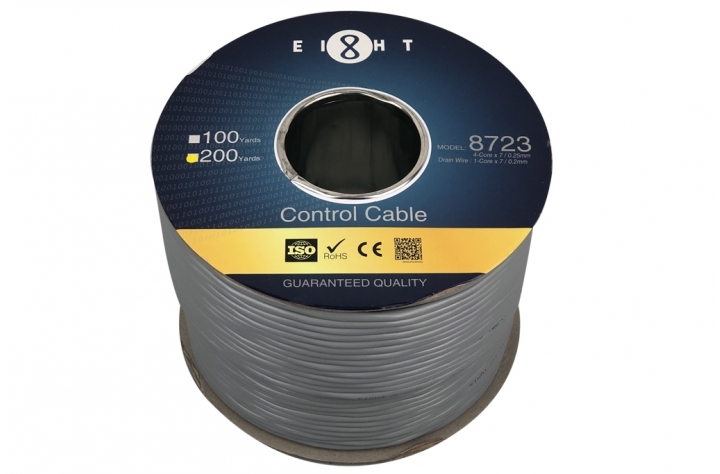

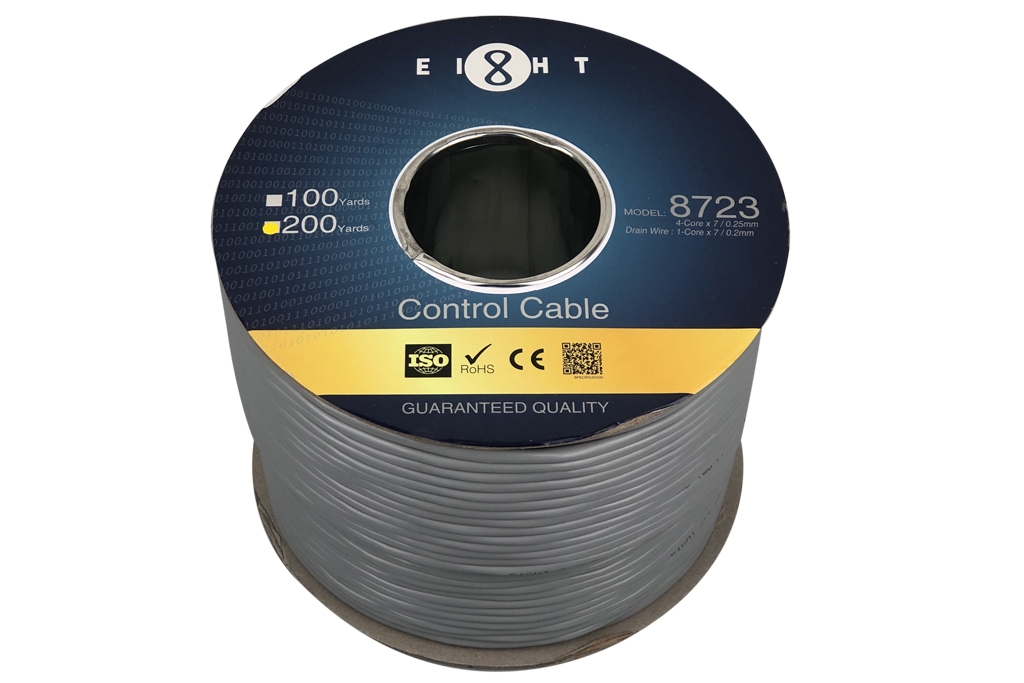

Control Cable
Price: HK$0
download-icon Download Specification
Features
  • Power limited controls
  • Single line telephone
  • Security systems
Specification


General

Conductor Material  TC
  Cores 2x2
  Max Resistance(20°C) 52Ω/km
  Construction(No./mm) 7/0.25mm
Insulation Insulation  PVC
  Insulation Dielectric 1.2mm±0.1mm
  Insulation Color White & Black &Green &Red
Shield AL Foil AL Foil
  Drain wire(No./mm) 7/0.2mmTC
Jacket Jacket Material PVC
  Jacket Color Grey
  Jacket Thickness 0.7mm±0.05mm
  Jacket O.D 5.2 mm±0.2mm
Operation Temperature    -20°C To +60°C
Suitable for    Indoor


Construction

Self Photos / Files - 8723Construction
