Features
- Supreme quality
- Intercom / PA systems
- Sound / Audio systems
- LSZH Jacket option available
Specification
General
| Conductor | Material | BC |
| Cores | 2 | |
| Max Resistance (20°C) | 125 Ω/km | |
| Construction (No./mm) | 18 / 0.1 mm | |
| Insulation | Insulation | PE |
| Insulation Dielectric | 1.05 mm ± 0. 1mm | |
| Insulation Color | White & Orange | |
| Filler | Material | Cotton Yarn & Cotton paper |
| Shield | AL Foil | / |
| Spiral (No./mm) | 71 / 0.1 mm TC | |
| Drain wire (No./mm) | / | |
| Jacket | Jacket Material | PVC |
| Jacket Color | Black | |
| Jacket Thickness | 1.0 mm | |
| Jacket O.D | 4.5 mm ± 0.2 mm | |
| Operation Temperature | -20 °C ~ +60 °C | |
| Length | 100 Yards |

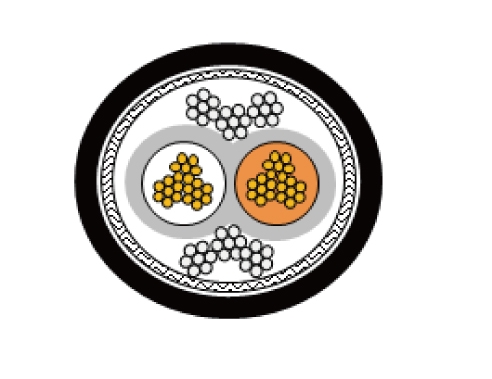

Construction
