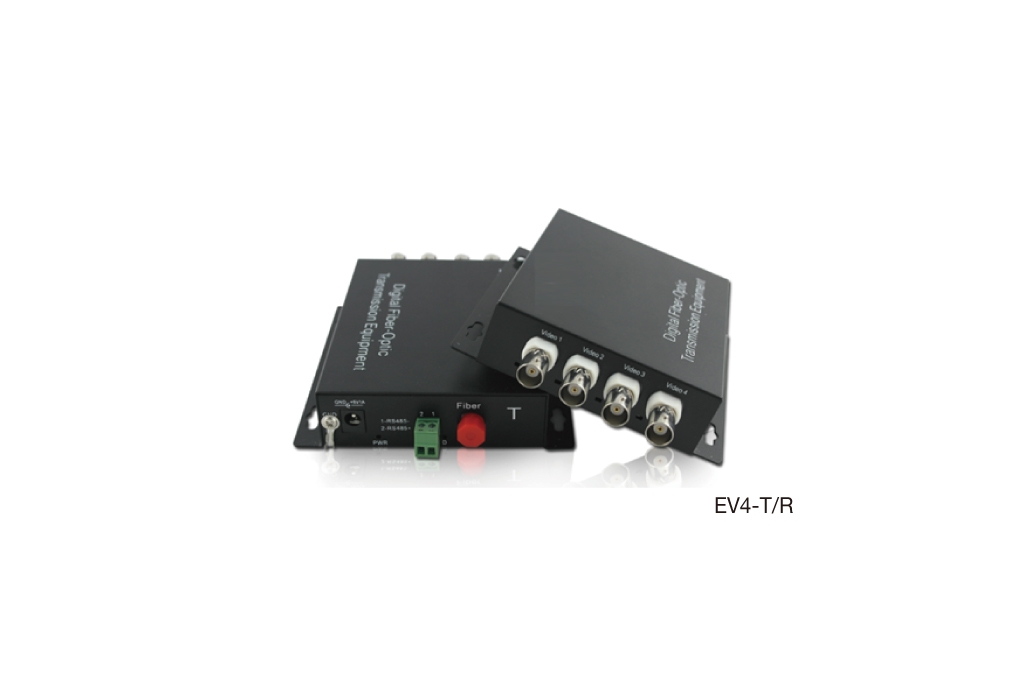

Video Optical Transceiver
Price: HK$0
download-icon Download Specification
  • 8-bit digital encoded and non-compression broadcast quality video transmission
  • Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols (Optional)
  • Automatic compatible PAL, NTSC and SECAM video system
  • Supports no-damage regenerative trunk of video
  • Constant input optical power, and large dynamic range
  • Special ASIC design
  • Hot-swap function
  • Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis
  • Audio input available (Optional)


Video Interface   BNC
Video bandwidth   8 MHz
Automatic Compatible Video System   PAL, NTSC, SECAM
Video In/Output Impedance   75 Ω (unbalance)
Video In/Output Voltage   1.0Vp-p, max 1.5Vp-p
Video Signal-to-noise Ratio   ≧ 65dB
Differential Gain     < 1%
Differential Phase    < 0.7°
Fiber-optic Specification Connector  FC/ST/SC
  Transmitter Tx Power:  -15 to -8dBm
  Receiver Sensitivity ≦-35dBm
  Transmission Distance  2km (Multi Mode Fiber), 20/40/60/80/100km (Single Mode Fiber)
Weight   1KG
Size    105 x 108 x 27mm
Operating Voltage   DC 5V, AC100-240V
Operating Temperature    0°C ~ 50°C
Storing Temperature   -40°C ~ 85°C
Humidity   0% to 95% non-condensing
