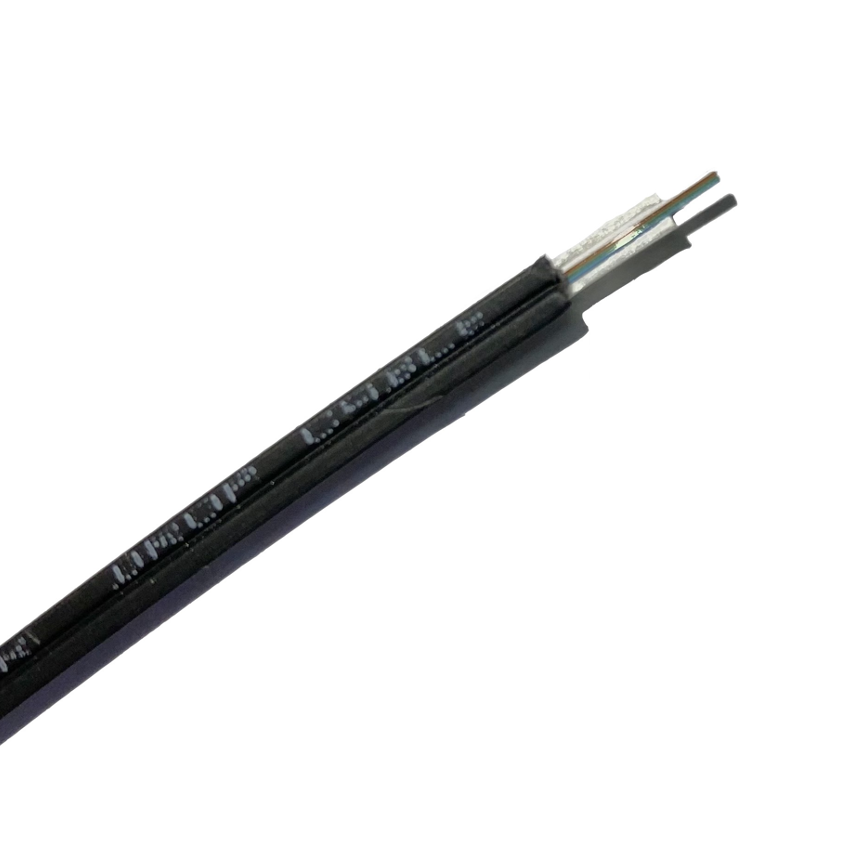

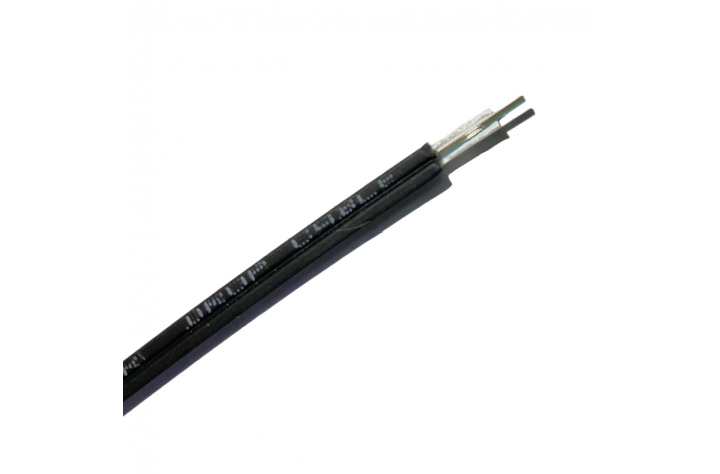

FTTH Single Mode OS2 Optical Fiber Cable with FRP Wire (LSZH Jacket)
Price: HK$0
download-icon Download Specification
  • Available in single mode fiber, from 1, 2 & 4 cores
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Crush resistance and flexibility
  • PSP enhancing moisture-proof
  • Two parallel Fiberglass-Reinforced Plastic wires ensure tensile strength
  • Cable complies with IEC60332-1-2:2015, IEC61034-2:2019 & IEC60754-1:2019


Fiber Type   G.652D / G.652A1 / G.652A2
Attenuation (+20°C)



≦0.36 dB/km

≦0.22 dB/km

Cable Cut-off Wavelength λcc     ≦1260 nm
Non-Circularity of Core   ≦1%
Core / Cladding Dimension   9/125 μm
Buffering Diameter   900 μm ± 50 μm
Fiber Coating Diameter   245 μm ± 7 μm
Tensile StrenthLong / Short Term (N)   3/6
Crush Resistance Long / Short Term (N /100mm)   100/500
Bending Radius Dynamics / Static (mm)   25/7.5
Coating Strip Force    ≦13.3
Operation Temperature   -20°C~60°C
