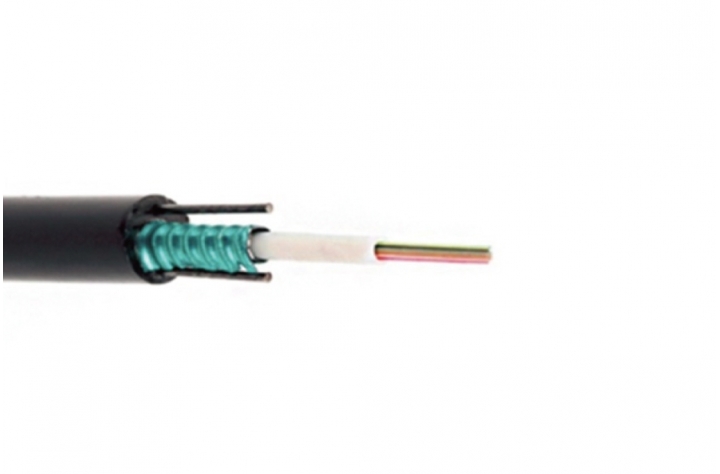

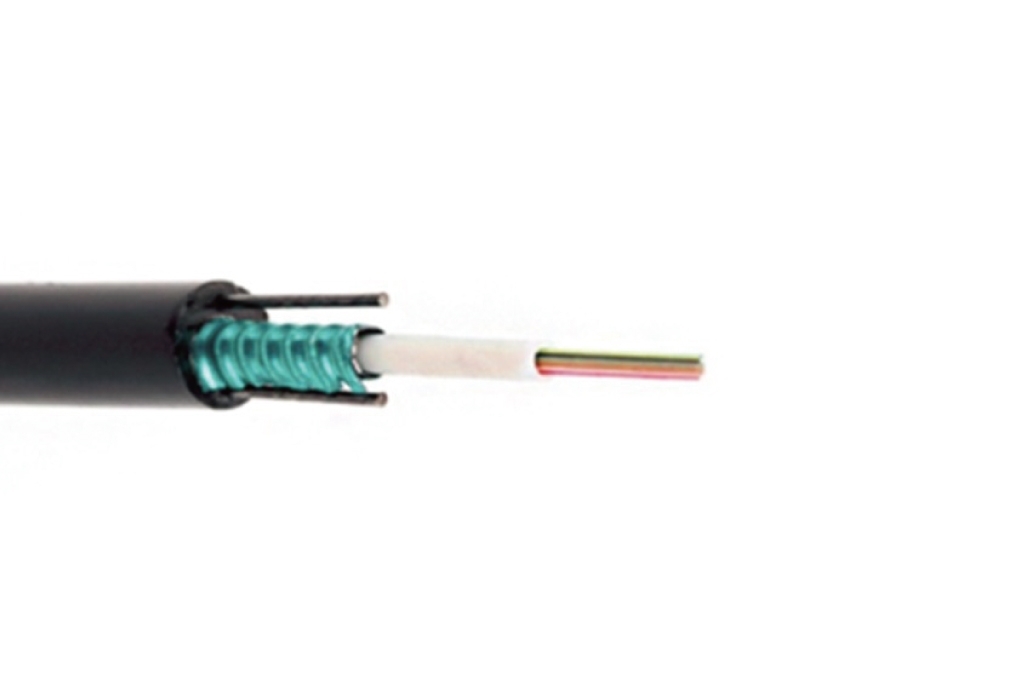

Features
  • Available in single mode fiber, from 2,4,6,8,12,16,24,48,96,108,120,132,144 &216 cores
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Crush resistance and flexibility
  • PSP enhancing moisture-proof
  • Two parallel steel wires ensure tensile strength
  • Cable complies with IEC60332-1-2:2015, IEC61034-2:2019 & IEC60754-1:2019
Specification


General

Fiber Type   G.652D, 9/125 μm
Attenuation (+20°C)

@1310nm

@1550nm

≦0.36 dB/km

≦0.22 dB/km

Cable Cut-off Wavelength λcc     ≦1260 nm
Non-Circularity of Core   ≦6%
Core / Cladding Dimension   9 / 125 μm
Buffering Diameter   900 μm ± 50 μm
Fiber Coating Diameter   245 μm ± 7 μm
Tensile StrenthLong / Short Term (N)   3/6
Crush Resistance Long / Short Term (N /100mm)   100 / 500
Bending Radius Dynamics / Static (mm)   20/10 D
Coating Strip Force    ≦13.3
Operation Temperature   -20°C~60°C


***EGYXTW SE Series is replaced by EGYXTW SME Series
