OS1X8 Series

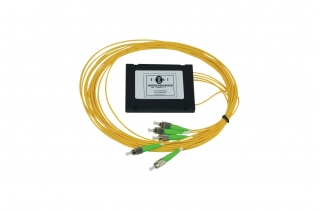

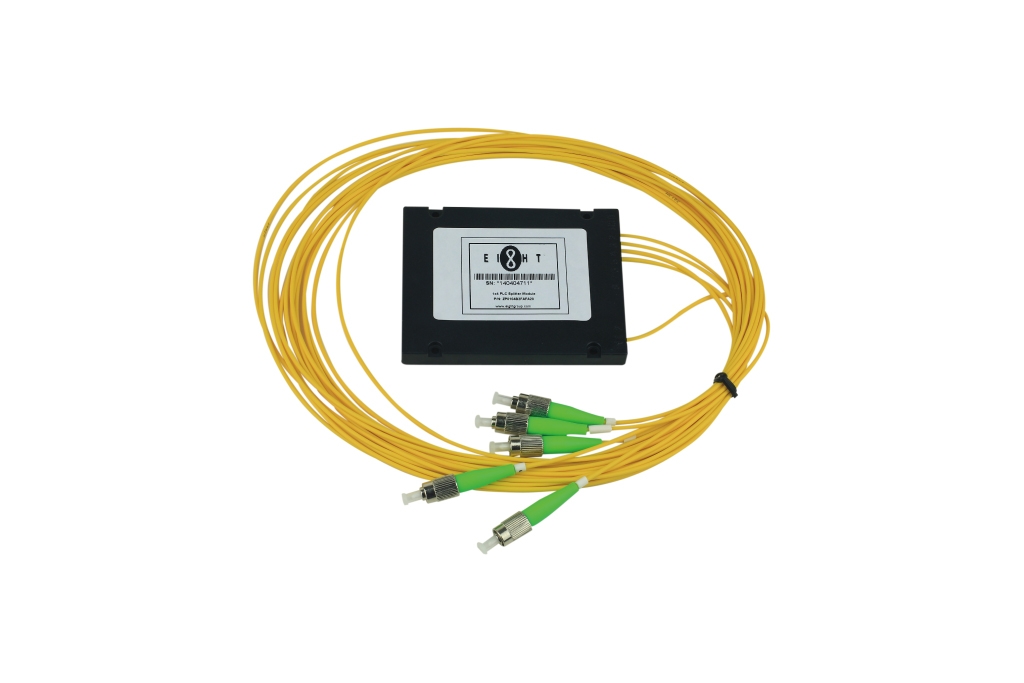

8 Ways Optical Splitter
Price: HK$0
download-icon Download Specification
  • Low insertion loss and high uniform
  • Low polarization relevant
  • Redundant reliability


Operating Wavelength    1260 ~ 1650 nm
Insertion loss   Typical  10.3 dB
  Maximum  10.5 dB
Uniformity  Maximum  0.8 dB
Polarization Dependent Loss  Maximum  0.1 dB
Return loss Maximum  ≥50 dB ( ≥55 dB with connector )
Directivity Maximum  ≥55 dB
Operating temperature    -20°C ~75°C
Storage temperature    -40°C ~ 85°C
