21U Outdoor Rack Cabinet
Price: HK$0
download-icon Download Specification
Features
  • Reliable structure, static loading capacity : 800KG

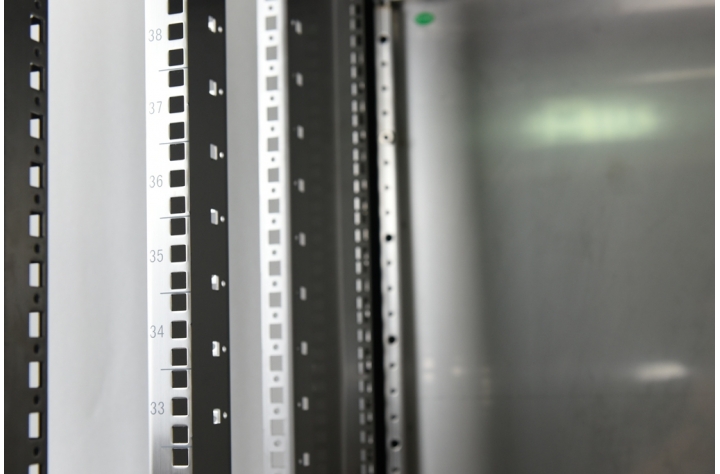

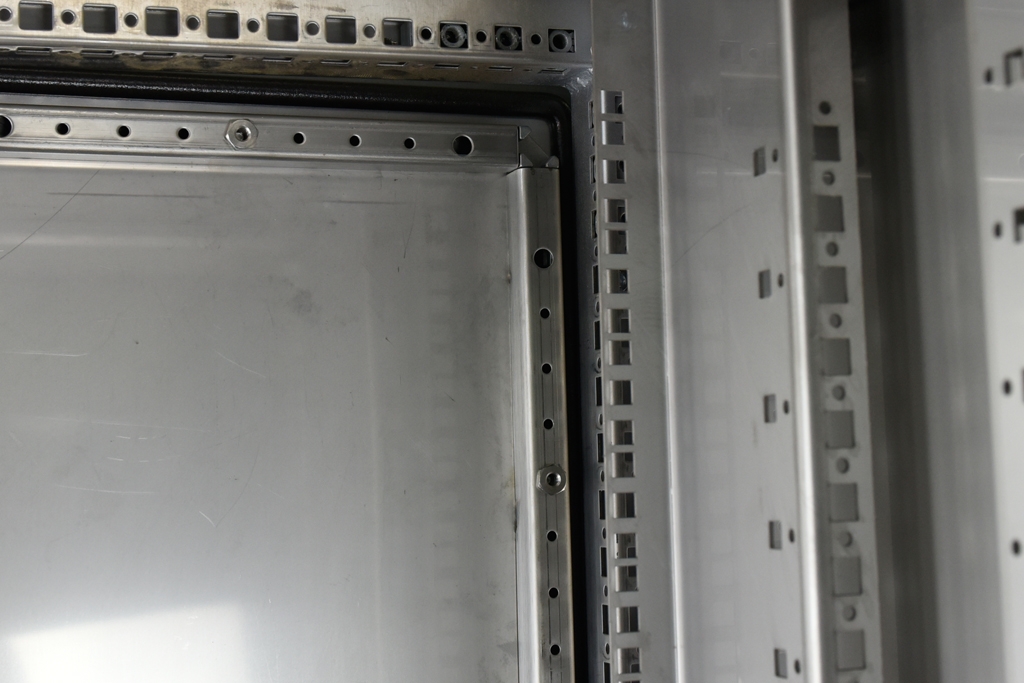

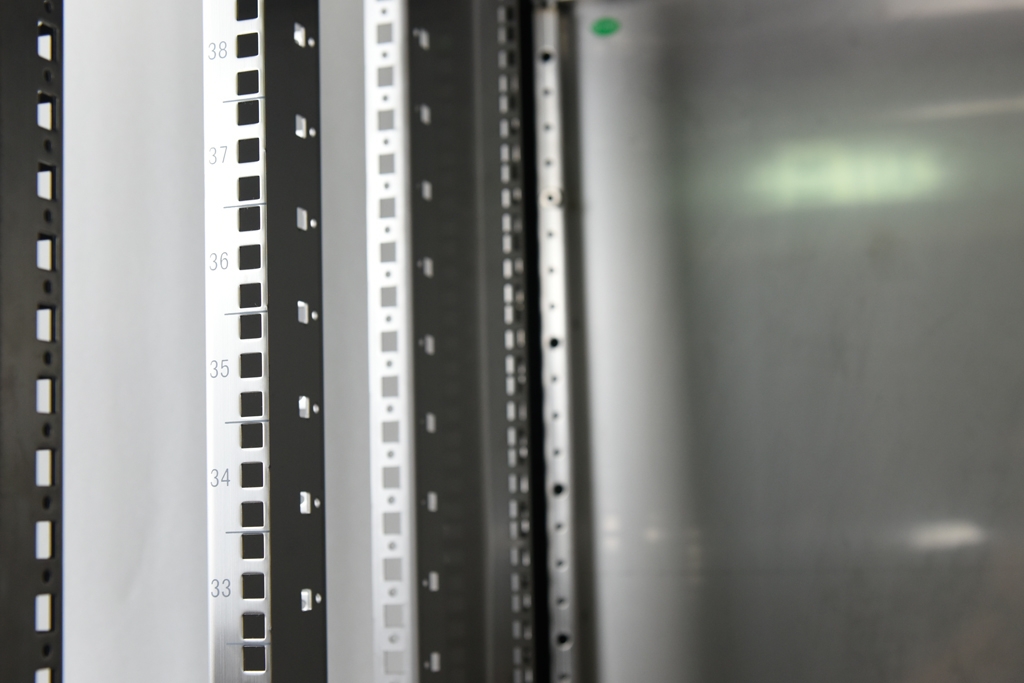

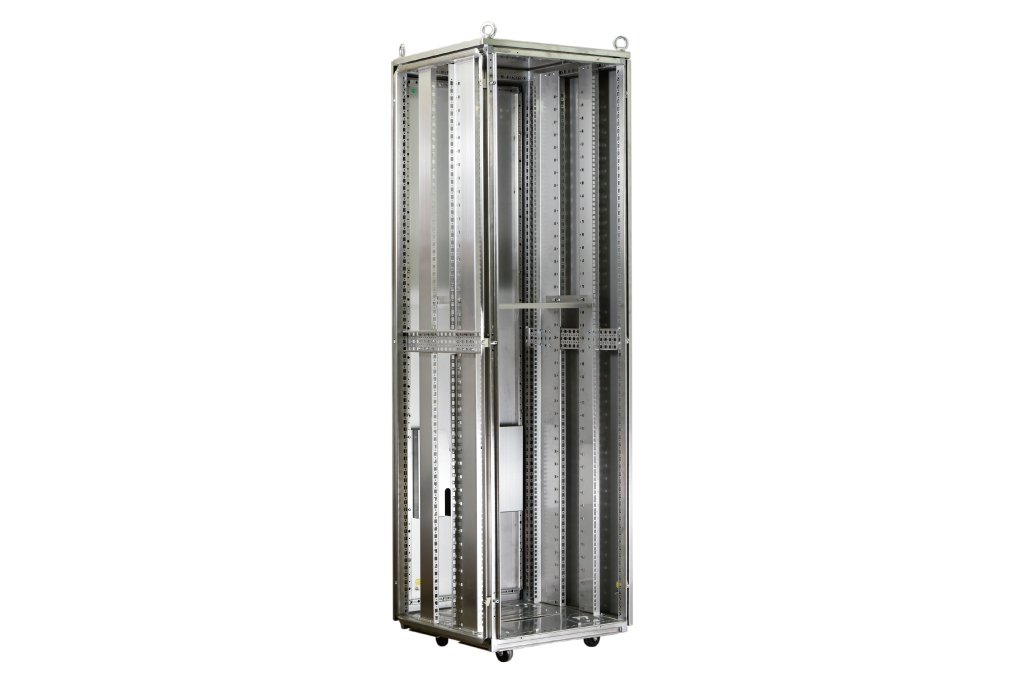

  • The outdoor cabinet is designed based on patent double pipes profile, there are four installation sides on the double pipes profile, each has a 25mm distance by unit, which make the inner installation standard are more optional choice
  • This distance for double wall is 20mm, this is to decrease the daylight effect to cabinet

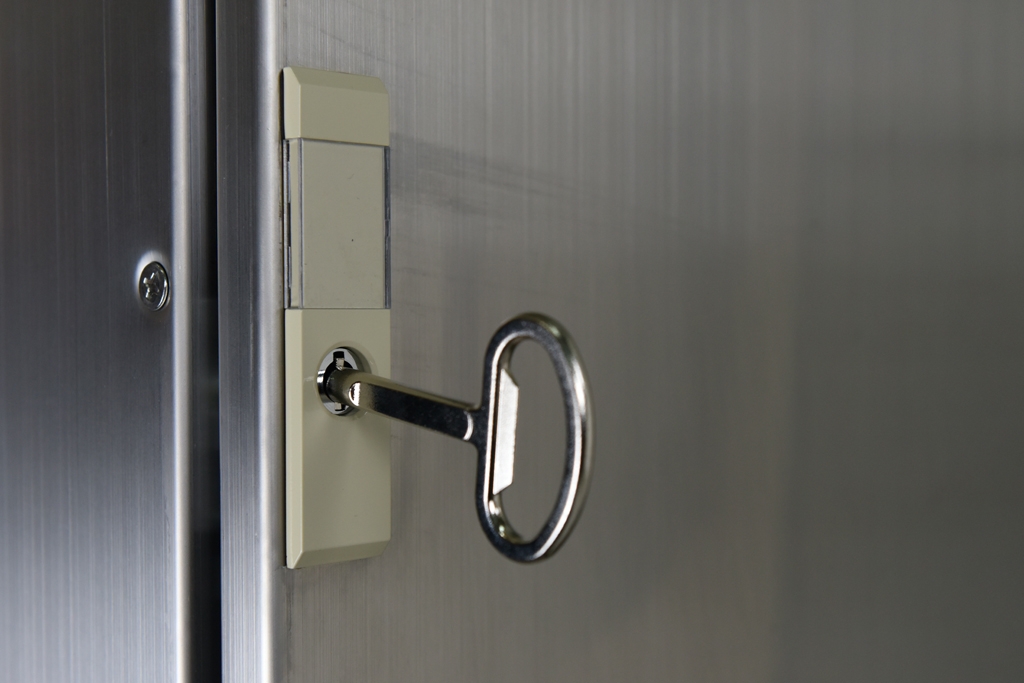

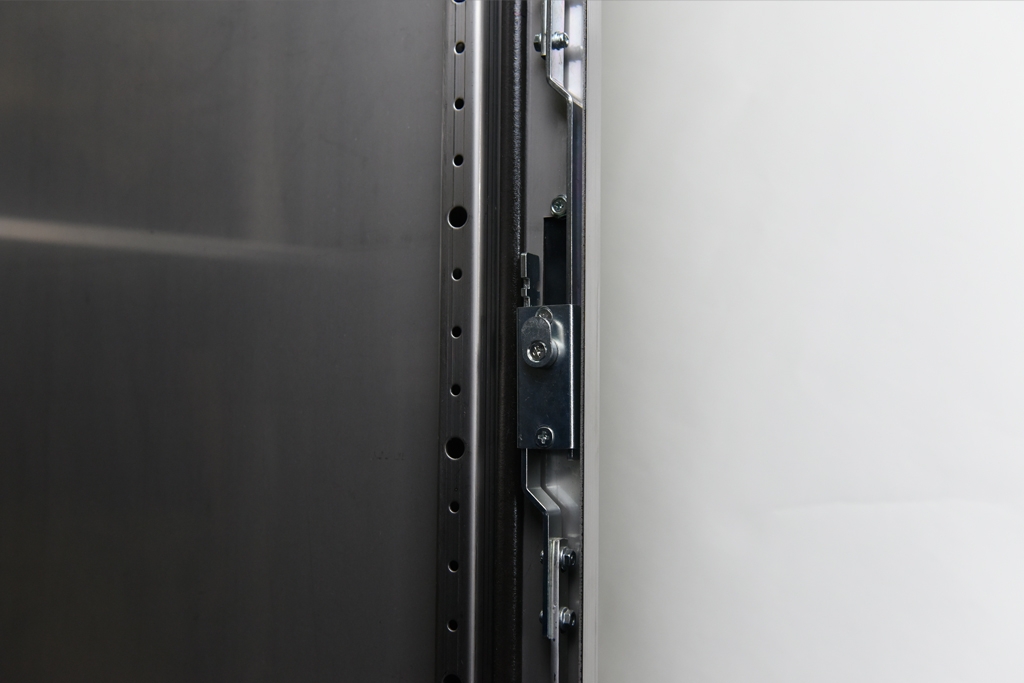

  • The unique waterproof slot design, double layer door with 3 point key, the door around are sealed by polyurethane gasket
  • IP Degree: IP 55

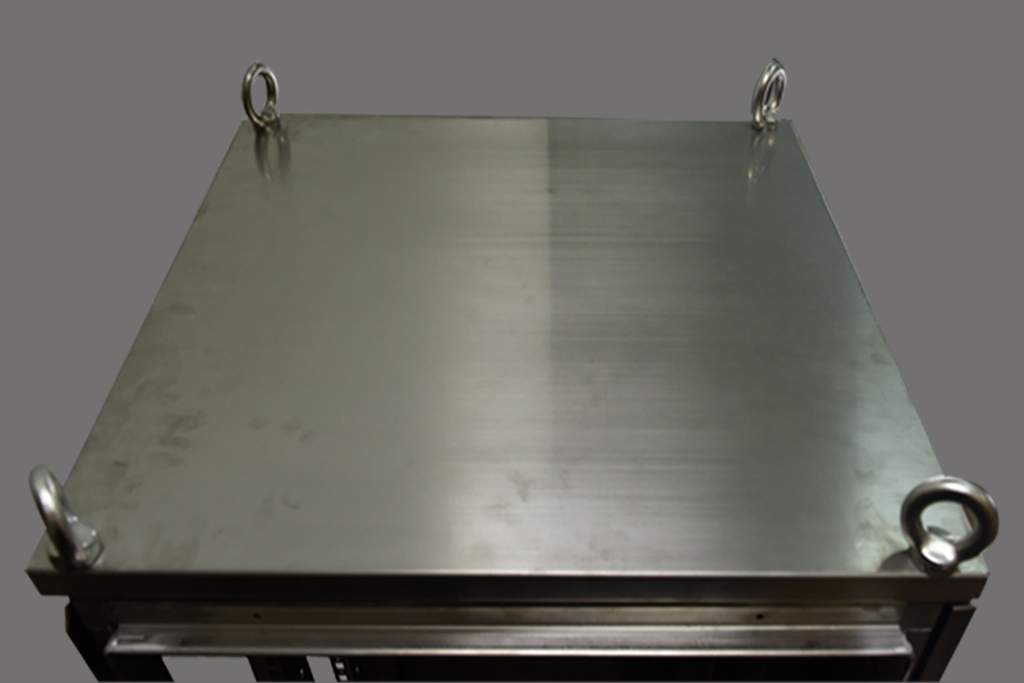

  • There is a 25mm x 75mm waterproof cover around top cover. The waterproof has special slots which ensure the air ventilate
Specification


General

Standard

Comply with ANSI/EIA, RS-310-D; IEC297-2; DIN41491: PART 1; DIN41491: PART 7; GB/T3047.2-92 standard

Compatible with 19” international standard, metric system and ETSI standard

Static loading capacity 800KG
IP Degree IP 55



Materials

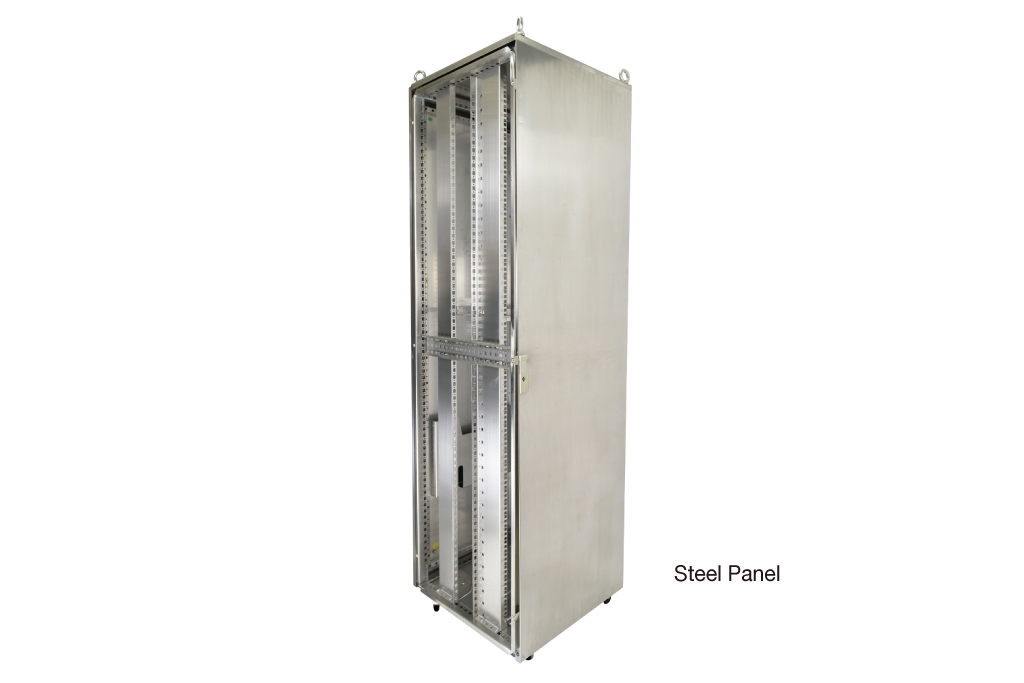

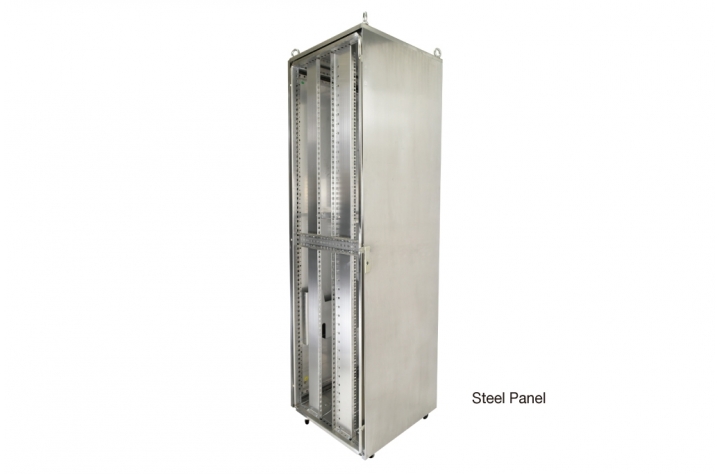

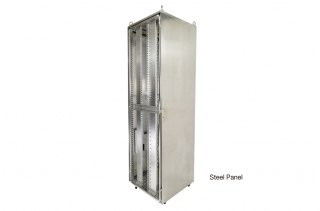

Panel Stainless Steel

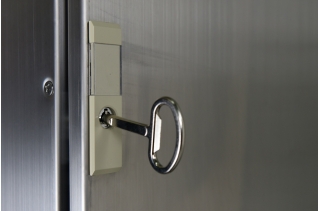

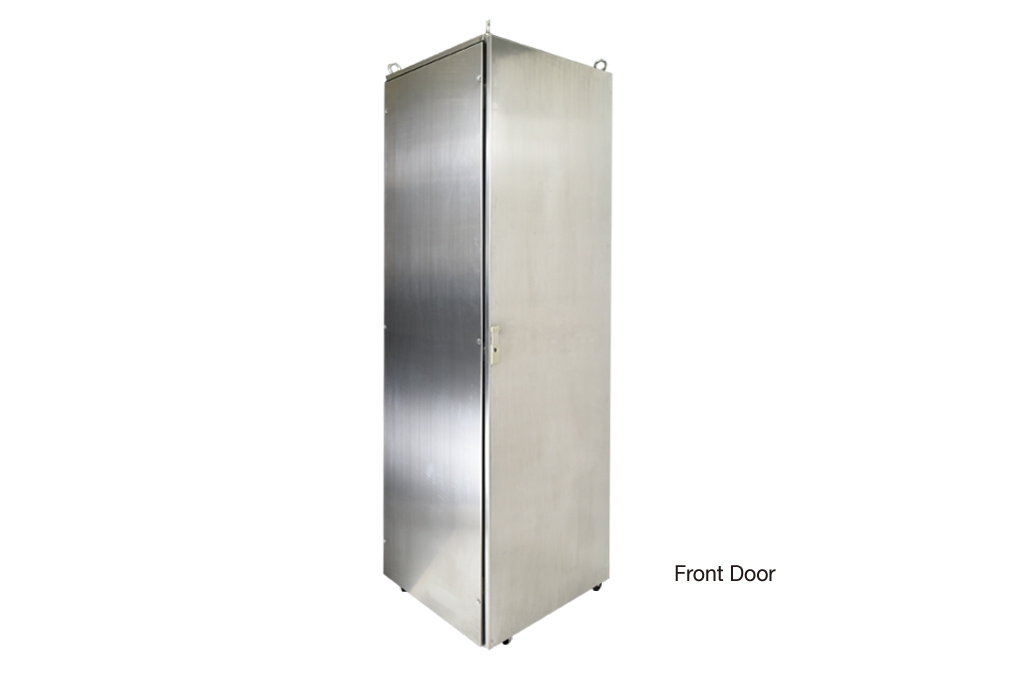

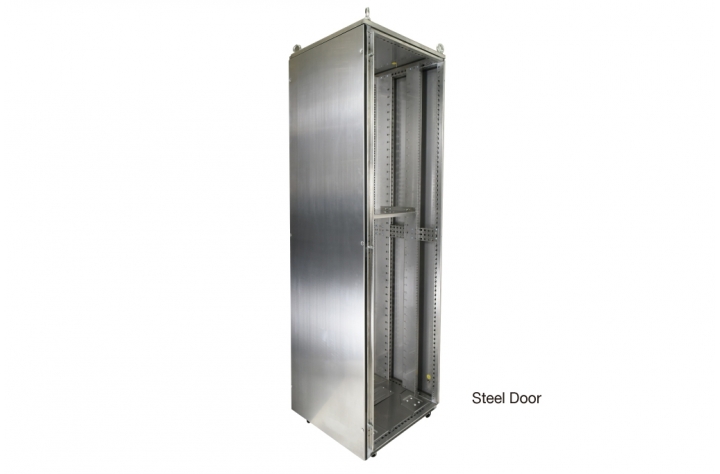

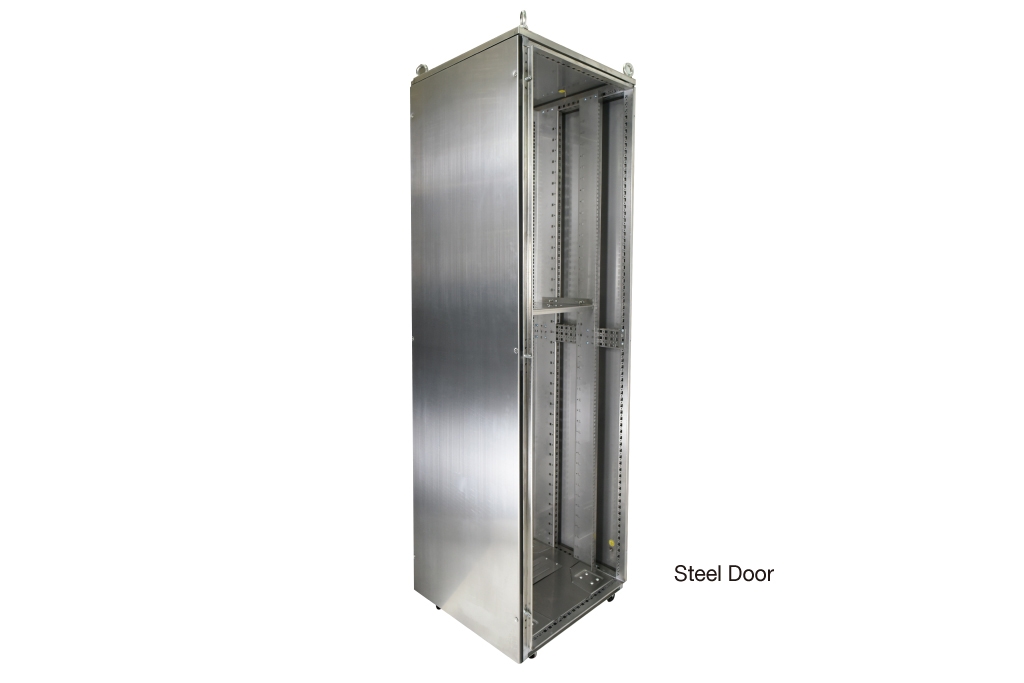

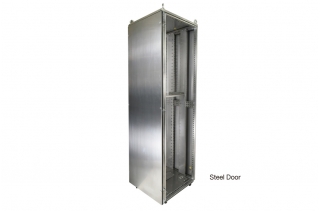

Door Double layer door with 3 point key, the door around are sealed by polyurethane gasket
Top cover  25mm x 75mm waterproof cover around
