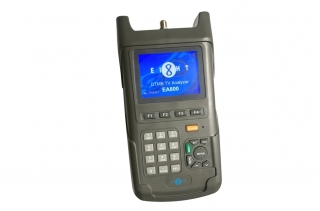

EA800
DTMB TV Analyzer
Price: HK$0
download-icon Download Specification
Features
  • Support DTMB digital TV signal measurement (GB20600-2006)
  • Spectrum analyzer and analog TV measurement feature
  • Long operating hours

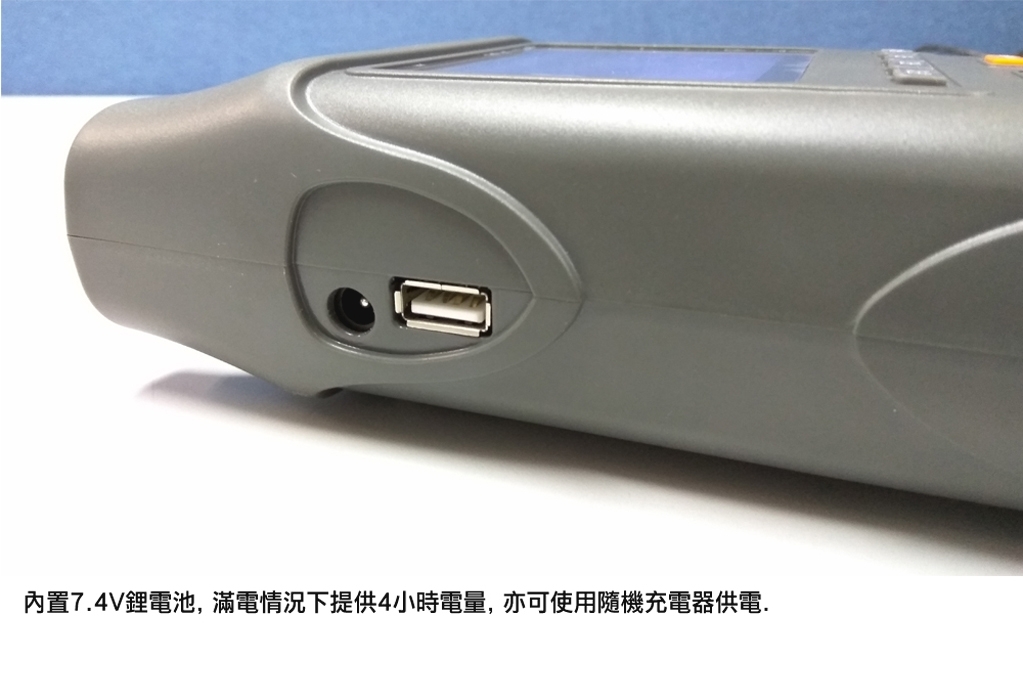

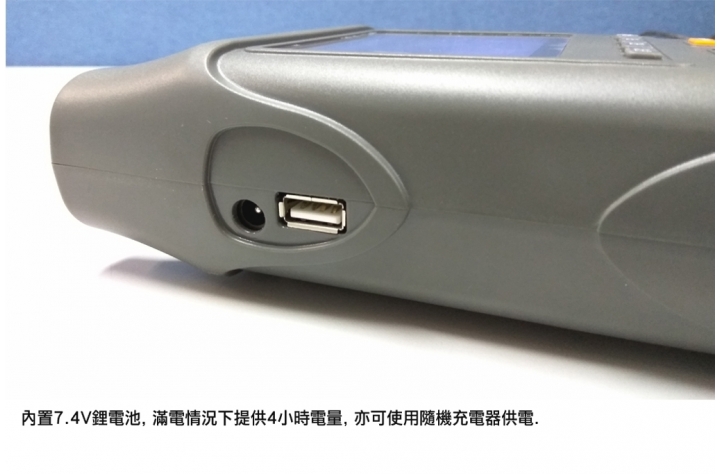

  • Built-in re-chargable Li-ion battery

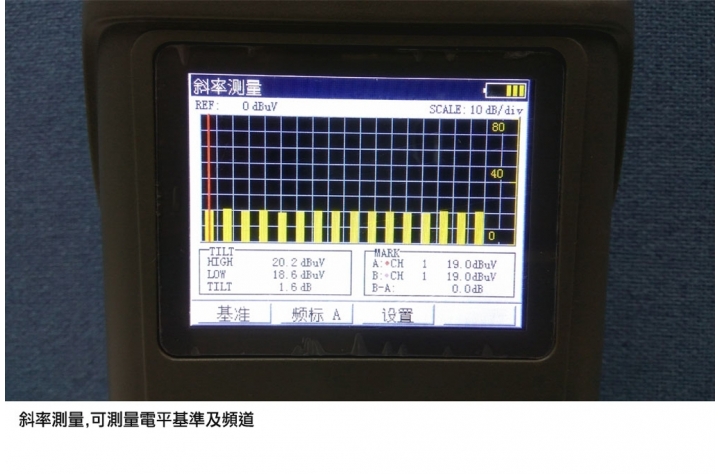

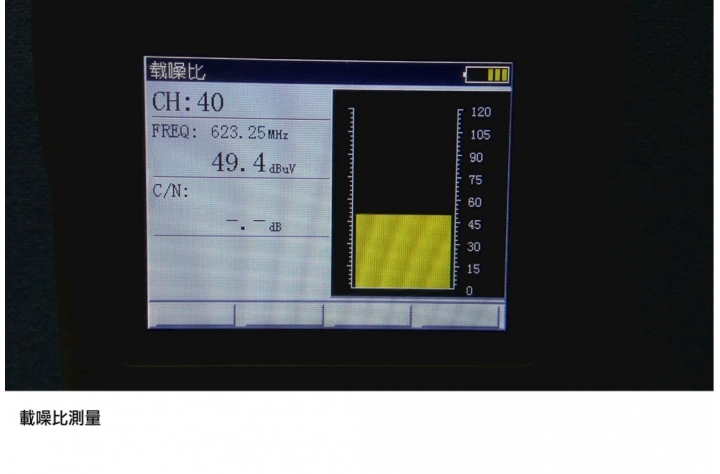

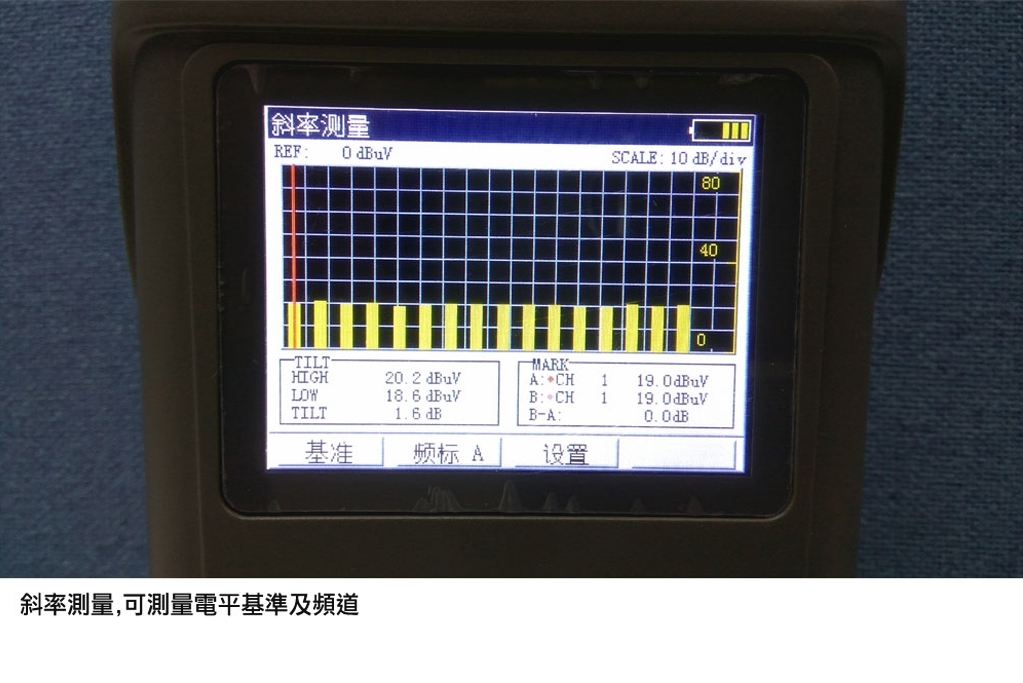

  • Tilt, C/N ratio measurementl
  • Support FM signal and FM audio demodulation
Specification

DTMB Feature

Frequency Range 58 ~ 858 MHz
Frequency Resolution 10 KHz
Range Power 25 ~ 120 dBm
Level Resolution 0.1dB
Level Accuracy ± 1.5 dB
MER Range 13 ~ 34 dB
BER 1E-2 - 1E-8

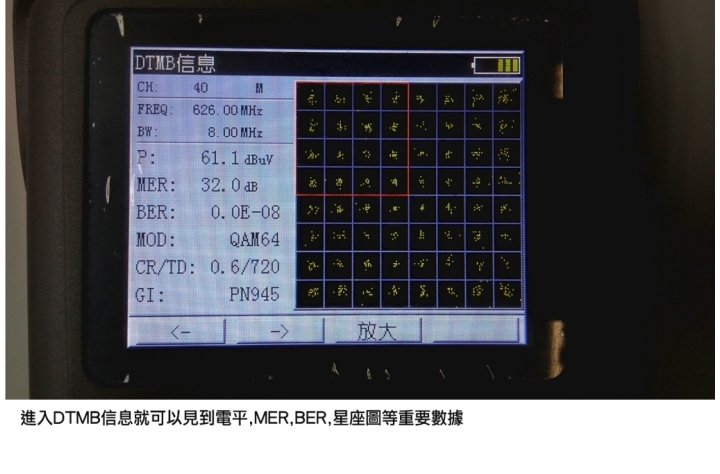

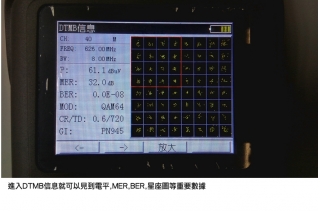

Other Features Single, multi-carrier compatible, constellation diagram, MER, BER, modulation scheme, FEC code rate, frame Header mode, symbol interleaver


Analog TV Feature

Frequency Range 5 ~1000 MHz
Frequency Resolution 10 KHz
Level Range 25dBμV ~ 120dBμV
Level Accuracy ± 1.5dB

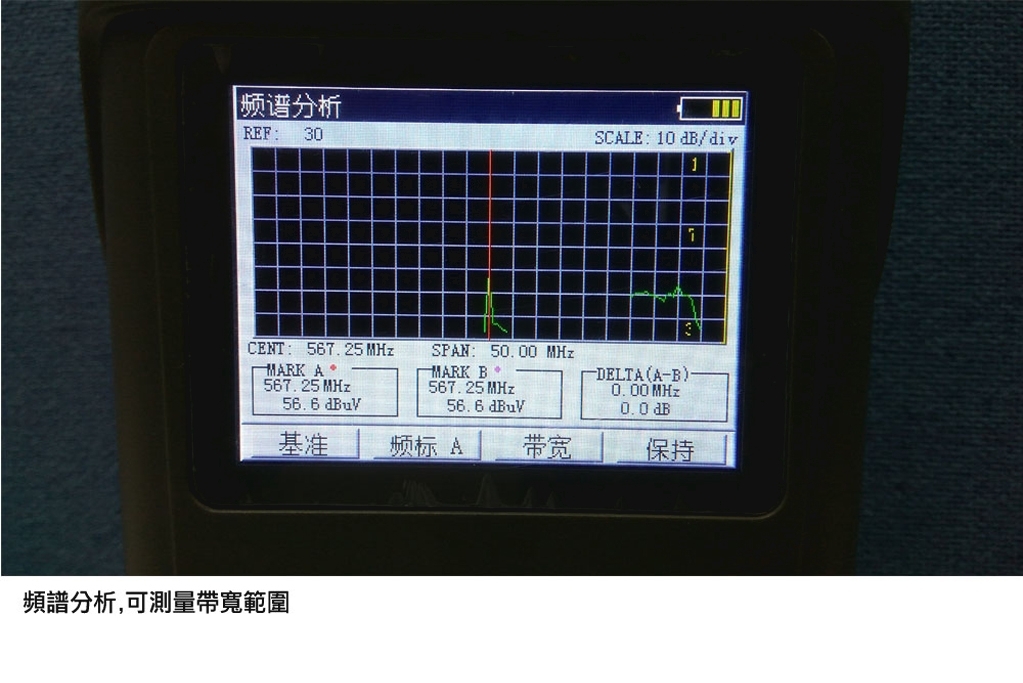

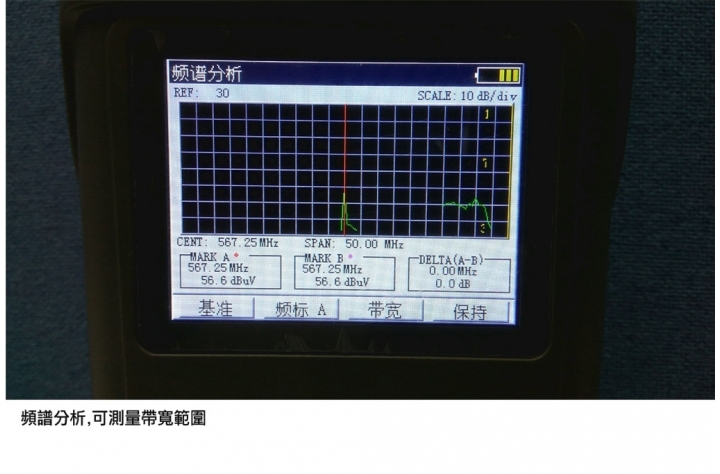

Spectrum Analyzer Feature

Frequency Range 5 - 1000 MHz
Level Range 10dBμV - 120dBμV
Level Resolution 0.1dB
Level Accuracy ± 1.5dB
Measurement BW 995MHz
SPAN Range  8 MHz / 16MHz / 32MHz / 50 MHz / 100MHz / 200MHz / 500MHz / Full


General

Dimension 279 x 118 x 57 mm
Weight 740 g

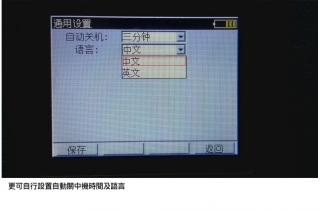

Display Interface Chinese
Battery 8.4V/2.6AH Lithium
Battery Operating Hour 5hr
