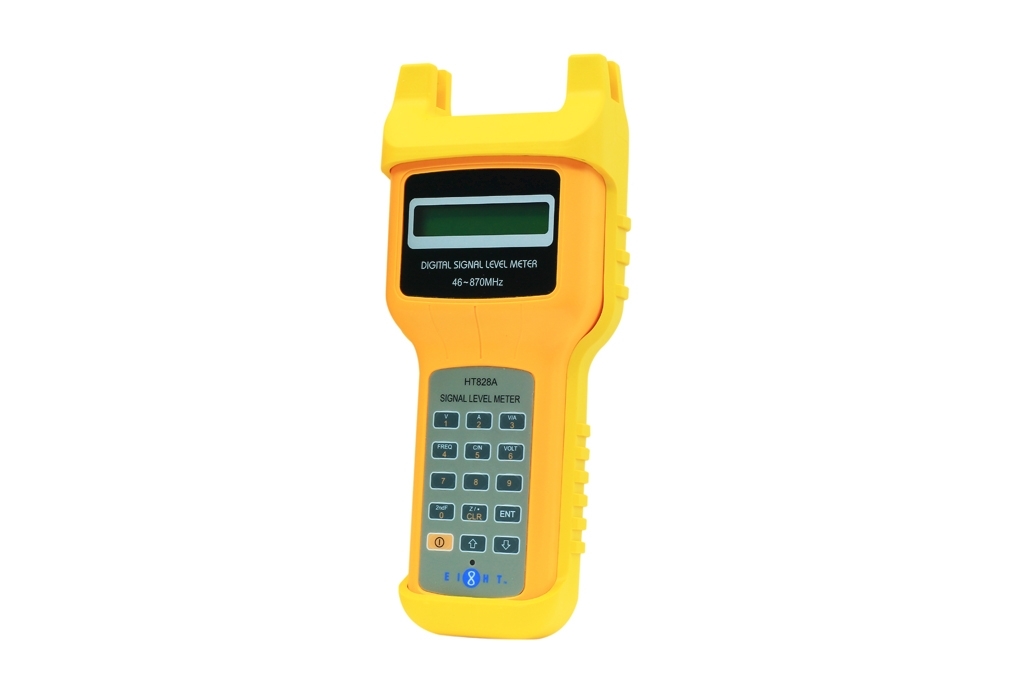

HT828A
Signal Level Meter
Price: HK$0
download-icon Download Specification
Features
  • Trunk voltage testing
Specification


General

Frequency Range 46 ~ 870 MHz
Resolution Bandwidth 280 KHz ± 50KHz
Channels PAL or NTSC
Level Range 30 dBμV ~ 120dBμV
Accuracy

±1.5dBμV (Under Room Temperature)

± 2.5dBμV (-10°C ~ 40°C)

Input Impedance 75Ω (BNC or F Connector)
Wave Delection Peak value


Voltage

Voltage Range 0 ~ 100VAC
Accuracy ± 1.5 V
Resolution 0.1V


Other

Dimension 214 x 94 x 47mm
Weight 1.3 kg (with charger)
Working Temperature -10°C ~ 40°C
Display LCD 16 x 2 LCD with back light


Power

DC Supply DC 7.2V / 1.6 Ah rechargeable battery
AC Supply AC 220V / 50 Hz ± 10%
Battery Working Hours Longer than 4.5 hours at continuous working mode
Recharging Hours 12 ~ 14 Hours
